12 51 100 Replacing Wiring Harness Section For Ignition Coil (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Read out fault memory of DME control unit.
Remove manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .

Release grounding points (1).

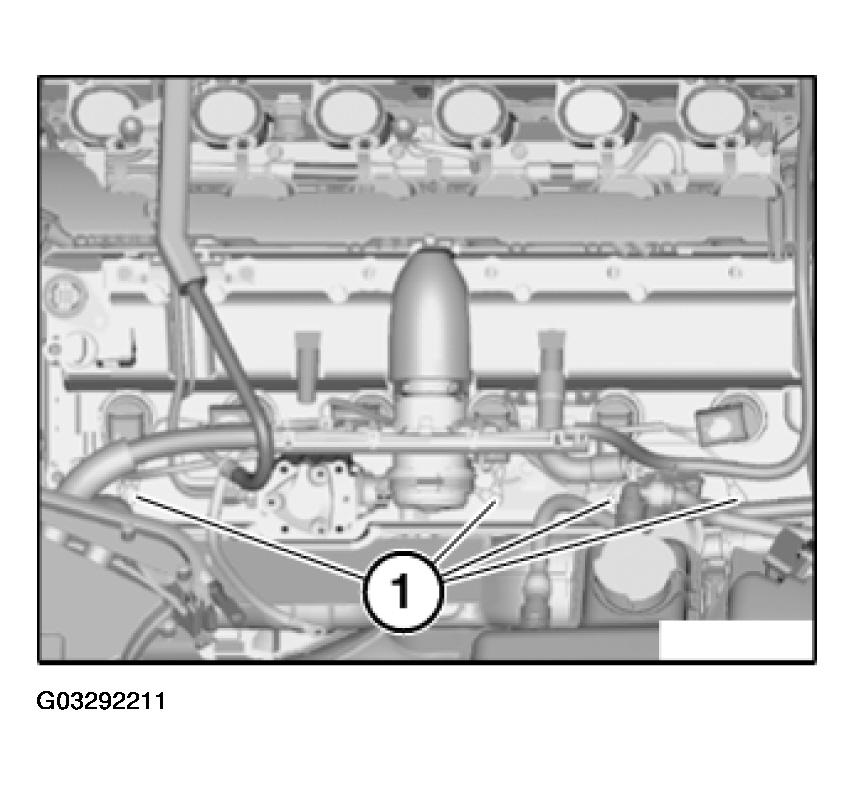

Fig 1: Locating Grounding Points

G03292211

Courtesy of BMW OF NORTH AMERICA, INC.

Release grounding points (1).

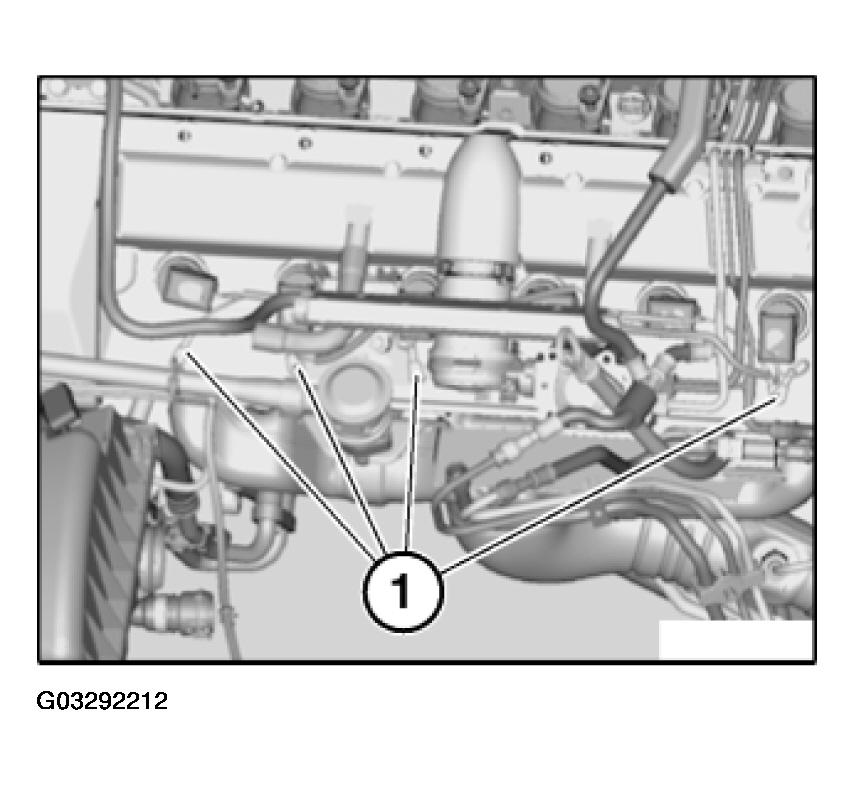

Fig 2: Identifying Grounding Points

G03292212

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) on rod-type ignition coils. Refer to 12 13 009 CHECKING ROD-TYPE IGNITION COILS (M54, M56, N40, N42, N45, N46, N52, N62, N73) .

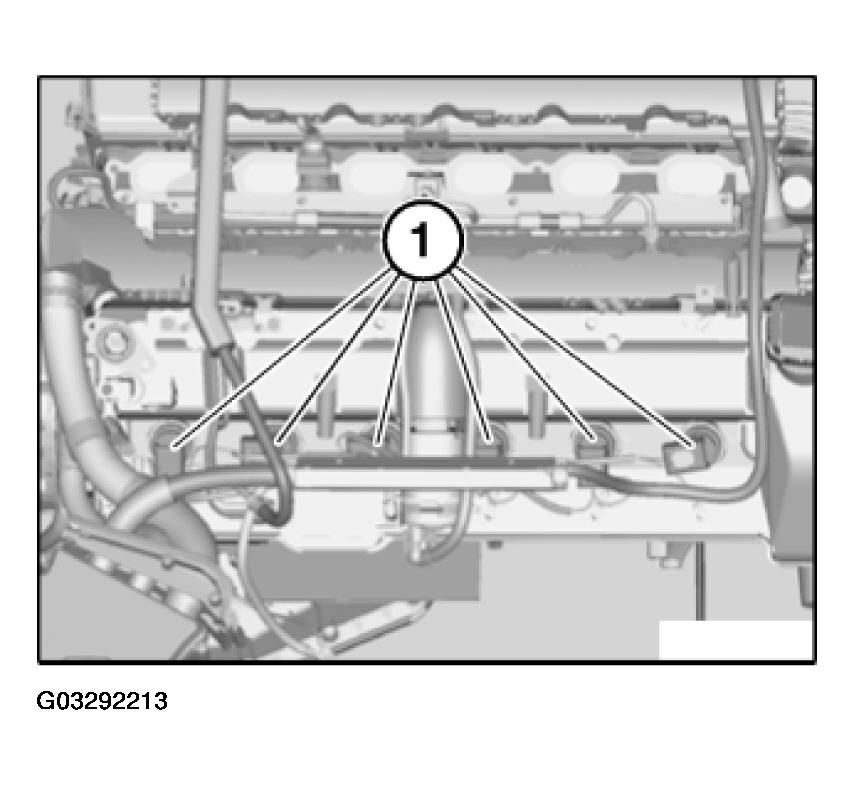

Fig 3: View Of Plug Connections On Rod-Type Ignition Coils

G03292213

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) on rod-type ignition coils. Refer to 12 13 009 CHECKING ROD-TYPE IGNITION COILS (M54, M56, N40, N42, N45, N46, N52, N62, N73) .

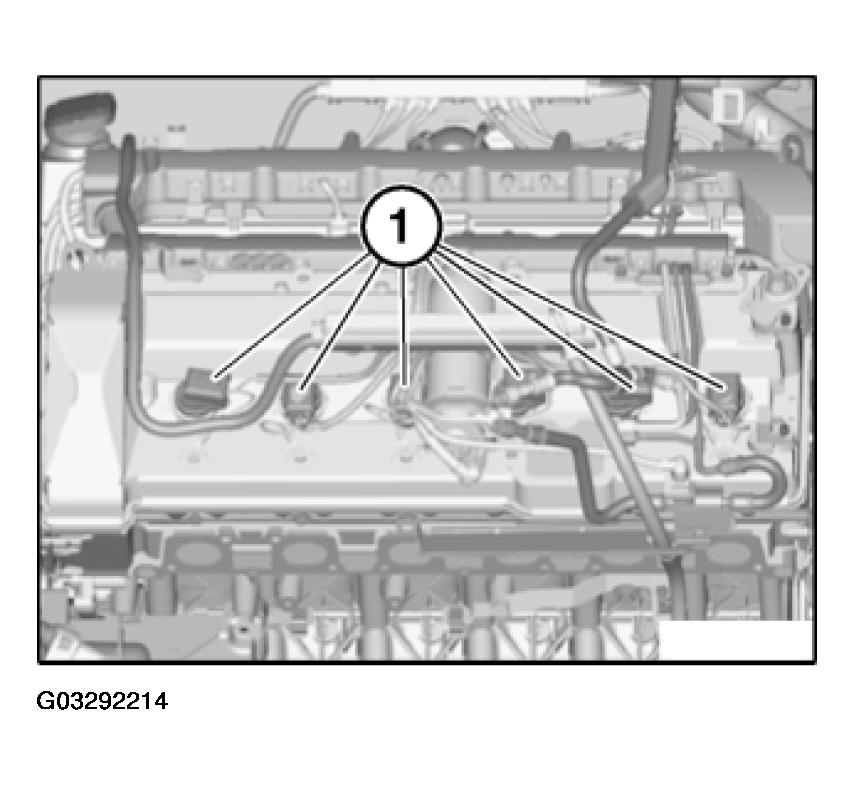

Fig 4: Locating Plug Connections On Rod-Type Ignition Coils

G03292214

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Release retaining clip (2).

Remove cover (3).

Installation:

Install profile seals correctly to ensure watertightness.

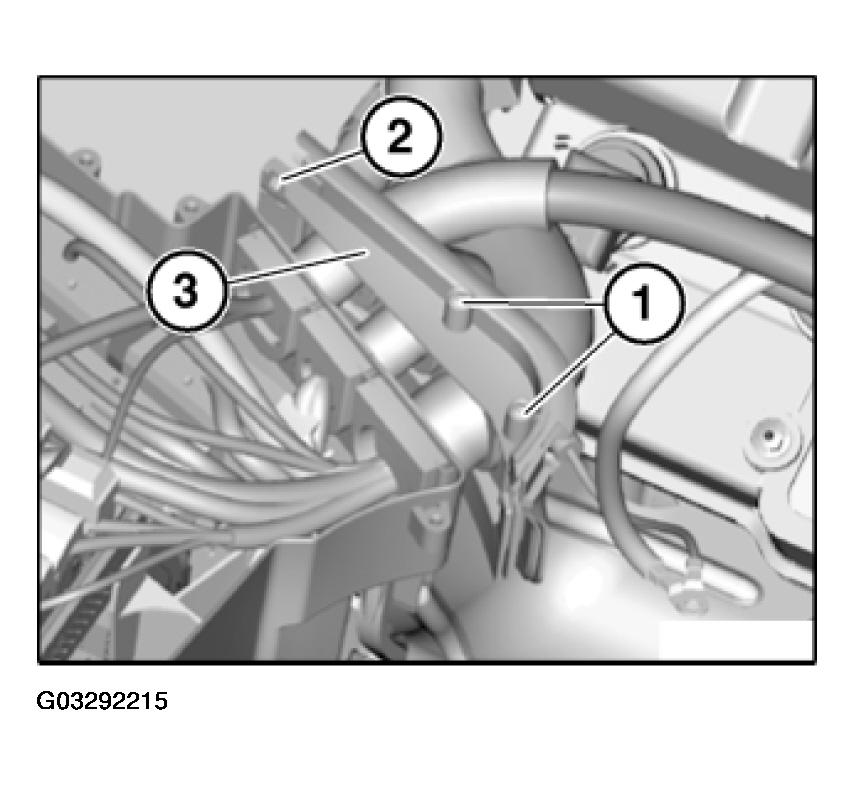

Fig 5: Releasing Retaining Clip

G03292215

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Disconnect plug connection (2).

NOTE: Plug color: Black (DME). Plug color: Gray (DMC2).

Disconnect plug connection (3).

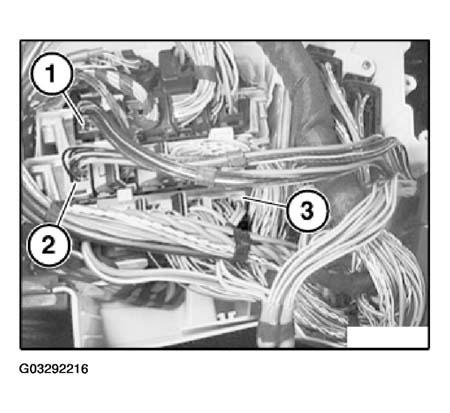

Fig 6: Disconnecting Plug Connection

G03292216

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME.
