51 44 011 Removing And Installing/Replacing Headliner (With Slide/Tilt Sunroof)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 323
54 1 230

Necessary Preliminary Tasks:

Remove sun visors and counter-supports. Refer to 51 16 080 REMOVING AND INSTALLING OR REPLACING SUN VISOR AND LEFT OR RIGHT COUNTER SUPPORT .
Remove all grab handles. Refer to 51 16 480 REMOVING AND INSTALLING OR REPLACING FRONT GRAB HANDLE .
Remove panels for front roof pillar (A-pillar trims). Refer to 51 43 201 REMOVING AND INSTALLING OR REPLACING TRIM FOR FRONT LEFT OR RIGHT ROOF PILLAR .
Remove panels for door pillar (B-pillar trims, top). Refer to 51 43 148 REMOVING AND INSTALLING OR REPLACING TRIM ON LEFT OR RIGHT DOOR PILLAR (TOP) .
Remove panels for rear roof pillar (C-pillar trims). Refer to 51 43 255 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (FRONT) .
Remove rear console insert/make-up mirror in rear compartment. Refer to 51 44 180 REMOVING AND INSTALLING/REPLACING REAR CONSOLE INSERT/MAKE-UP MIRROR IN REAR COMPARTMENT .
Remove switch for slide/tilt sunroof. Refer to 61 31 175 REMOVING AND INSTALLING/REPLACING SWITCH FOR SLIDE/TILT SUNROOF .
Remove hands-free microphone. Refer to 84 11 550 REMOVING AND INSTALLING/REPLACING HANDS-FREE MICROPHONE .
Remove left/right mirror light. Refer to 63 31 050 REMOVING AND INSTALLING/REPLACING MIRROR LIGHT .
Remove insert on front console. Refer to 51 44... REMOVING AND INSTALLING/REPLACING FRONT CONSOLE INSERT .

E66 with rear A/C system only:

Remove both control elements for rear A/C system. Refer to 64 11 386 REMOVING AND INSTALLING LEFT OPERATING UNIT FOR REAR A/C SYSTEM .

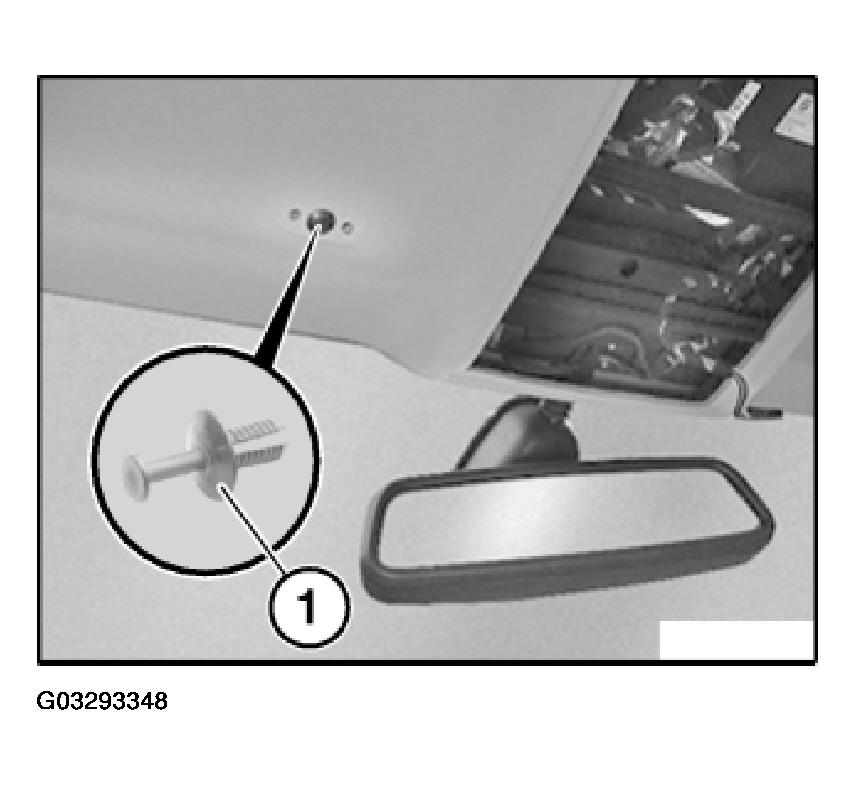

Lever out left expander rivet (1).

Fig 1: Locating Left Expander Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Completely open slide/tilt sunroof.

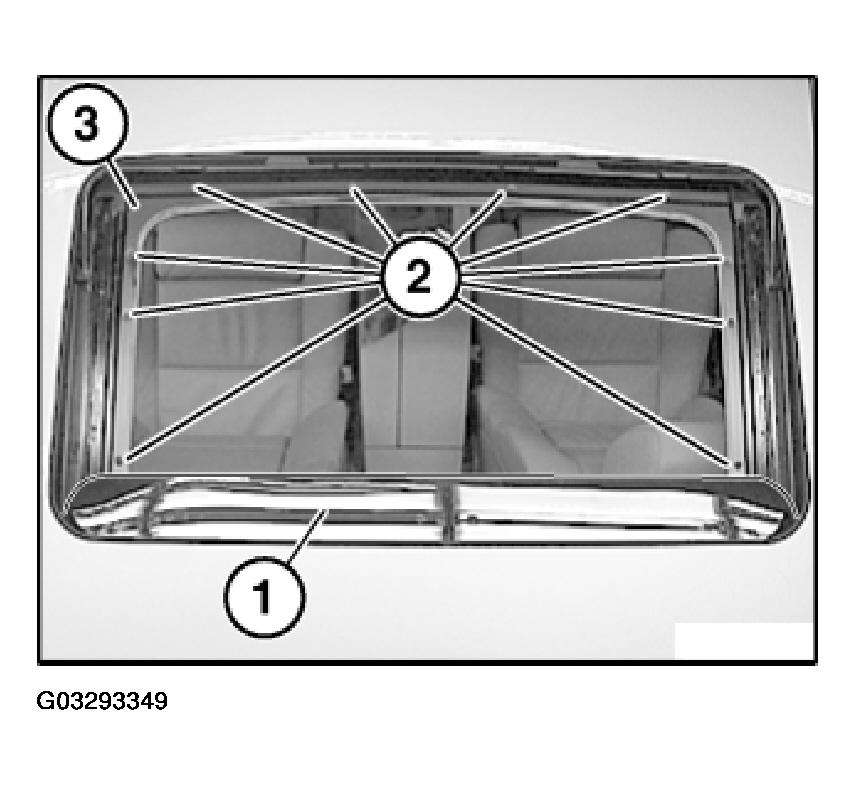

Release screws (2) on mounting frame (3).

Replacement only:

If necessary, replace nuts in headlining.

Fig 2: Identifying Screws From Mounting Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

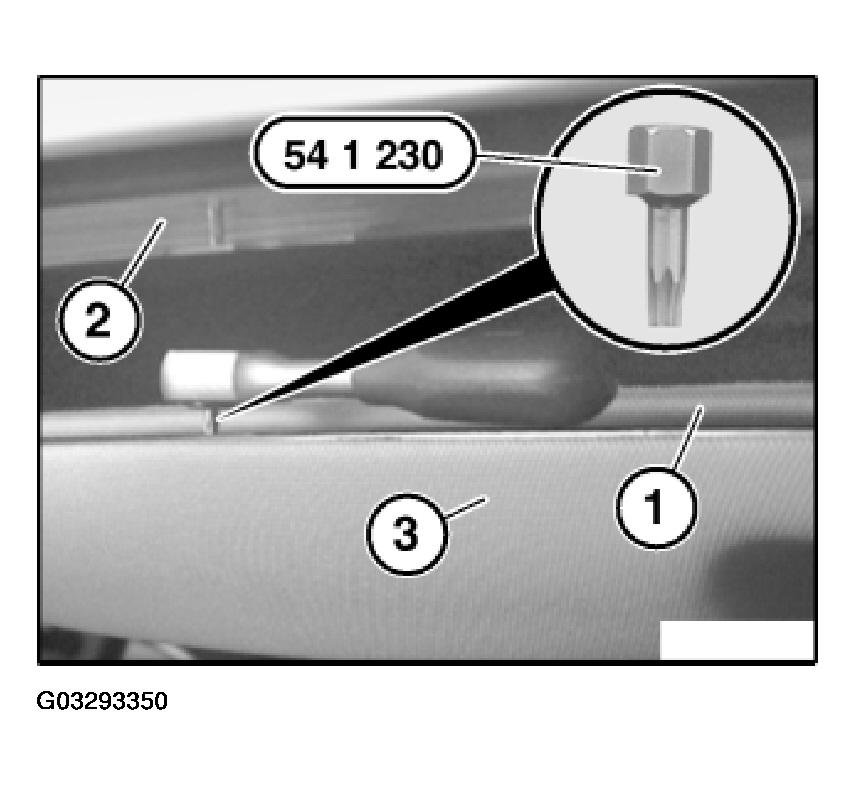

Slide floating roofliner (1) behind headliner (3).

Release remaining screws between mounting frame and glass sunroof cover with special tool 54 1 230.

Release screws on mounting for bracket at rear.

Version 2:

Connect BMW diagnosis system and Service function:

Body.
Locking and security functions.
Slide/tilt sunroof.
Select delivery position.

Remaining screws on mounting frame are now accessible and can be released.

Fig 3: View Of Wedge Between Roof Outer Skin And Water Gutter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

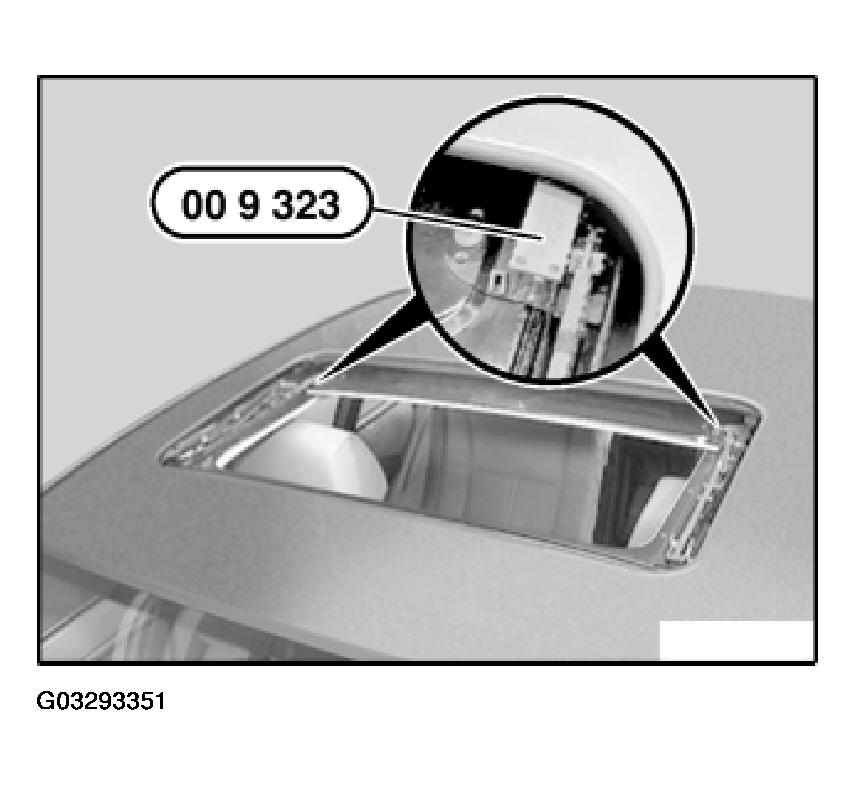

Insert 2 special tools 00 9 323 between roof outer skin and water gutter. This prevents the water gutter on the roof outer skin from being twisted when the glass slide/tilt sunroof is closed.

Fig 4: Inserting Special Tools Between Roof Outer Skin And Water Gutter

Courtesy of BMW OF NORTH AMERICA, INC.

E66 only:

Move left front seat and seat back to max. rearward/downward position.

Move right front seat and seat back to max. forward/upward position and cover seat back.

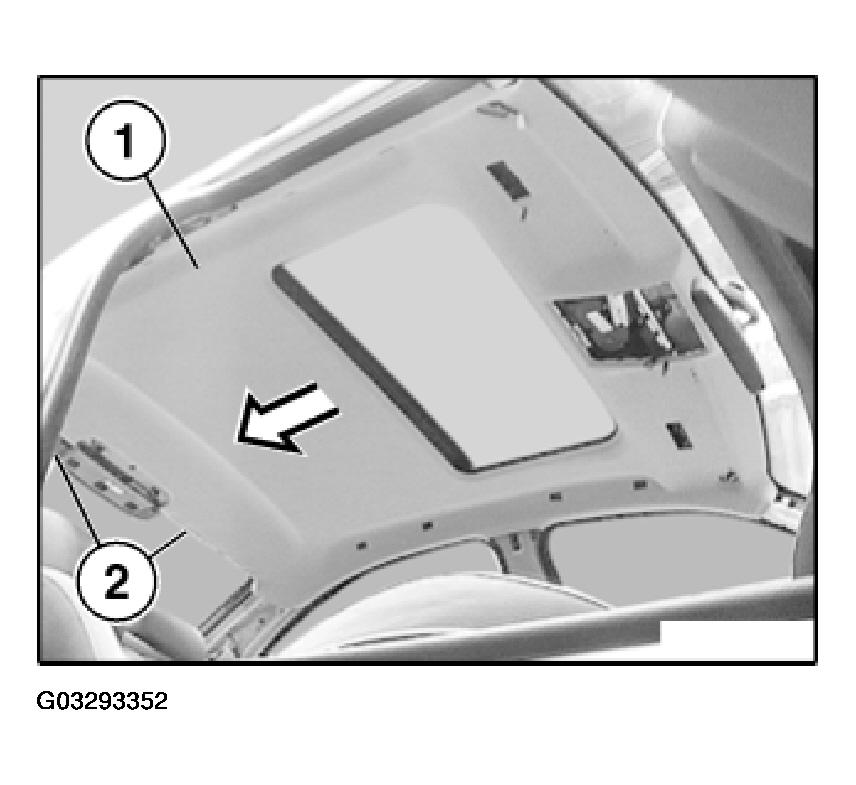

Press roofliner (1) towards rear out of metal lugs (2) and remove to left (E65) or right (E66) rear door.

Fig 5: Removing Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

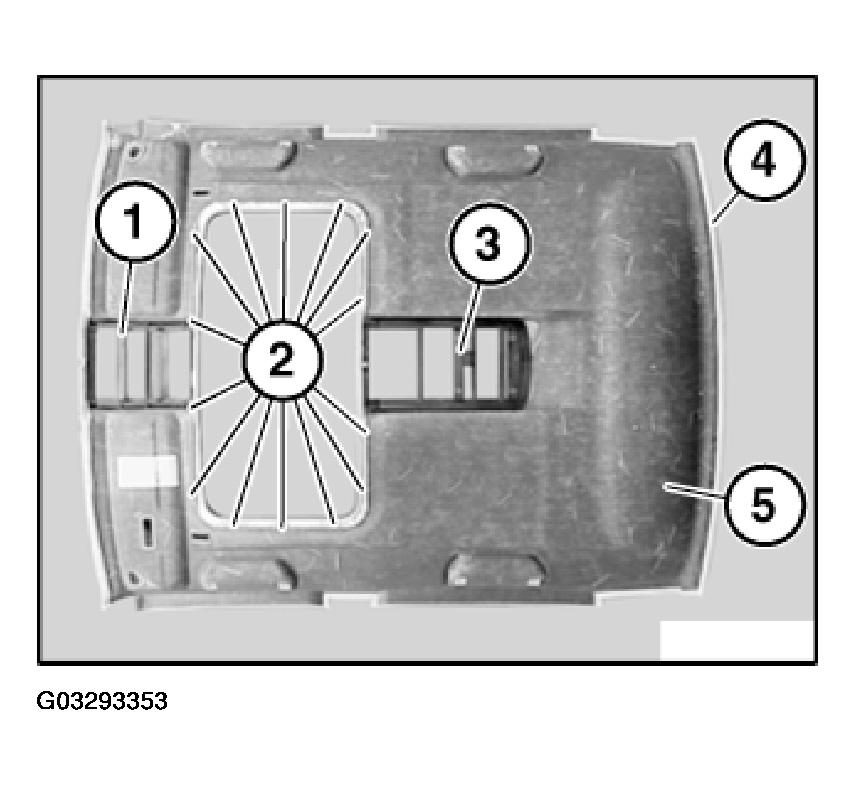

Following parts of headliner (5) must not be damaged or missing:

Mounting for console, front.
Metal nuts for cover frame.
Mounting for console, rear.
Mounting to roof, rear.

Fig 6: Inspecting Headliner Components
Courtesy of BMW OF NORTH AMERICA, INC.

If Replacing Version With Cable To Inside Rearview Mirror:

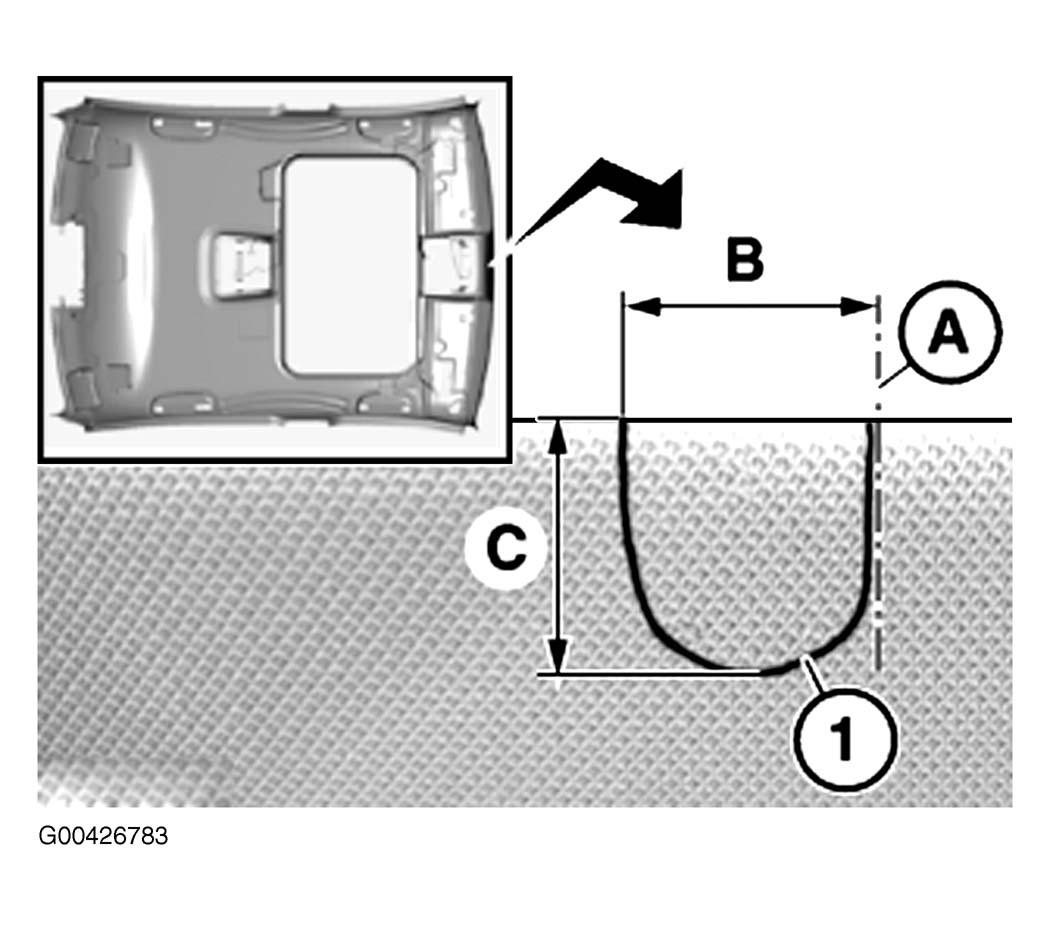

Mark cutout (1) on roofliner.

A = Center of roofliner.

Up To 08/2005:

B = 16 mm.

C= 20 mm.

From 09/2005:

B = 16 mm.

C= 22 mm.

IMPORTANT: Ensure a clean cut so that roofliner cover is not damaged.

Cut out cutout (1) with scalpel.

Fig 7: Identifying Cutout Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, use special tool 51 4 000 from E38/E39.

Installation sequence:

Carefully attach headliner at rear.
Secure roofliner at front with expansion rivet (in left counter support of sun visor).
Screw down grab handles at rear on left/right.
Screw down grab handles at front on left/right.
Screw down sun visors and counter supports.
Screw down headliner at light aperture at front.
