84 11 550 Removing And Installing/Replacing Handsfree Microphone

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

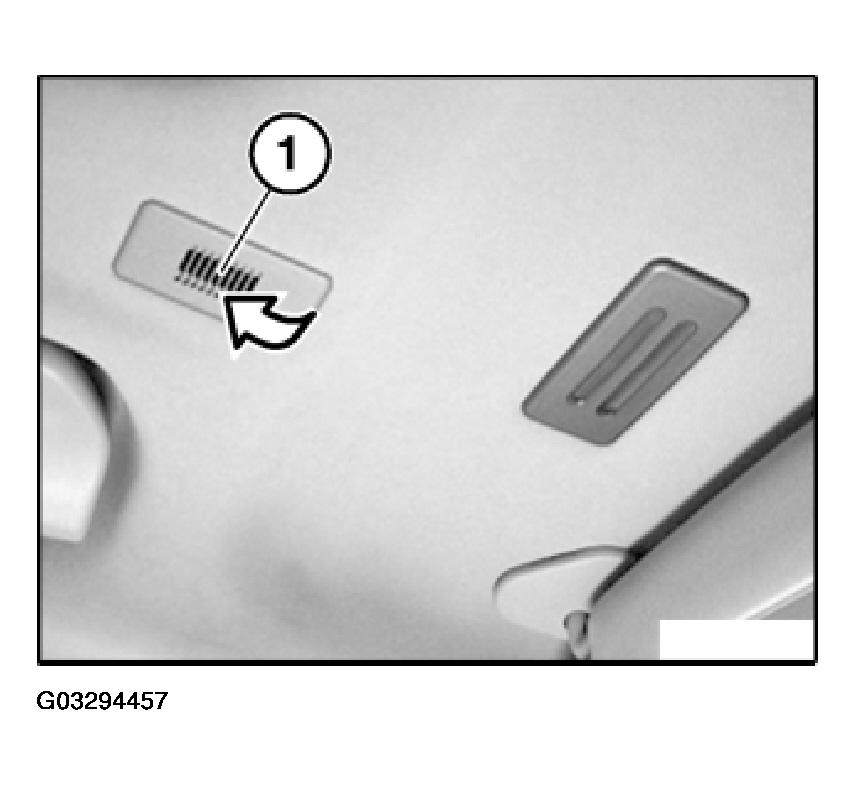

Lever out microphone trim (1) at front in direction of arrow.

Disconnect plug connection underneath and remove microphone trim (1).

Fig 1: Removing Microphone Trim

Courtesy of BMW OF NORTH AMERICA, INC.

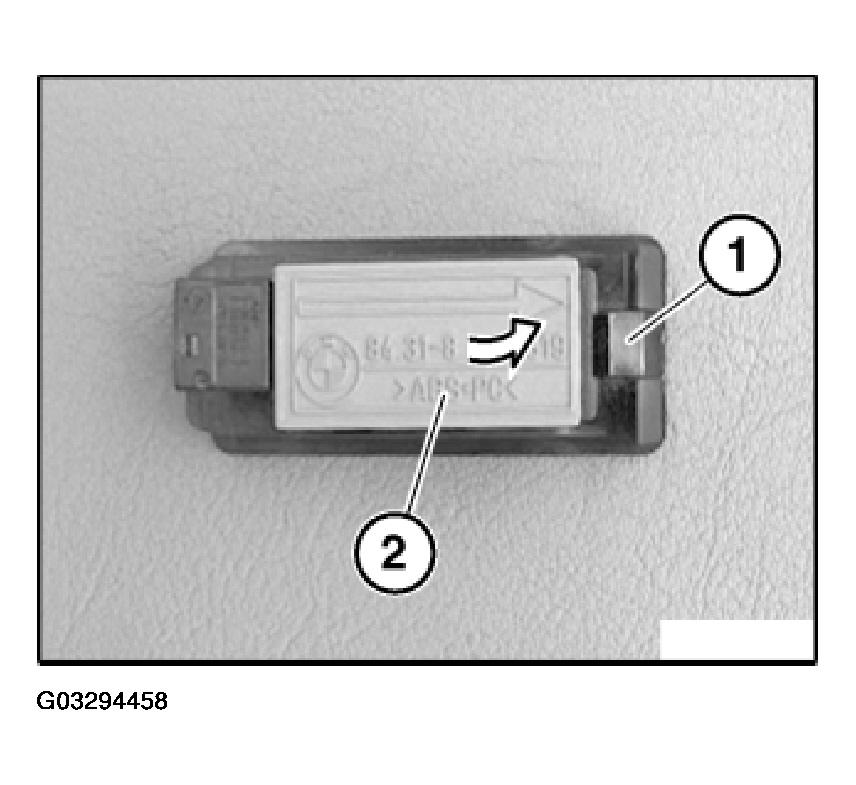

Unlock detent lug (1) and feed out hands-free microphone (2) in direction of arrow.

Installation:

Arrow on hands-free microphone (2) points in driving direction.

Fig 2: Removing Hands-Free Microphone

Courtesy of BMW OF NORTH AMERICA, INC.
