64 11 386 Removing And Installing Left Operating Unit For Rear A/C System

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 340

Lever out trim (1) with special tool 00 9 340.

Fig 1: Removing Trim Using Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove operating unit for rear A/C system (2) in direction of arrow.

Unlock plug connection (1) and disconnect.

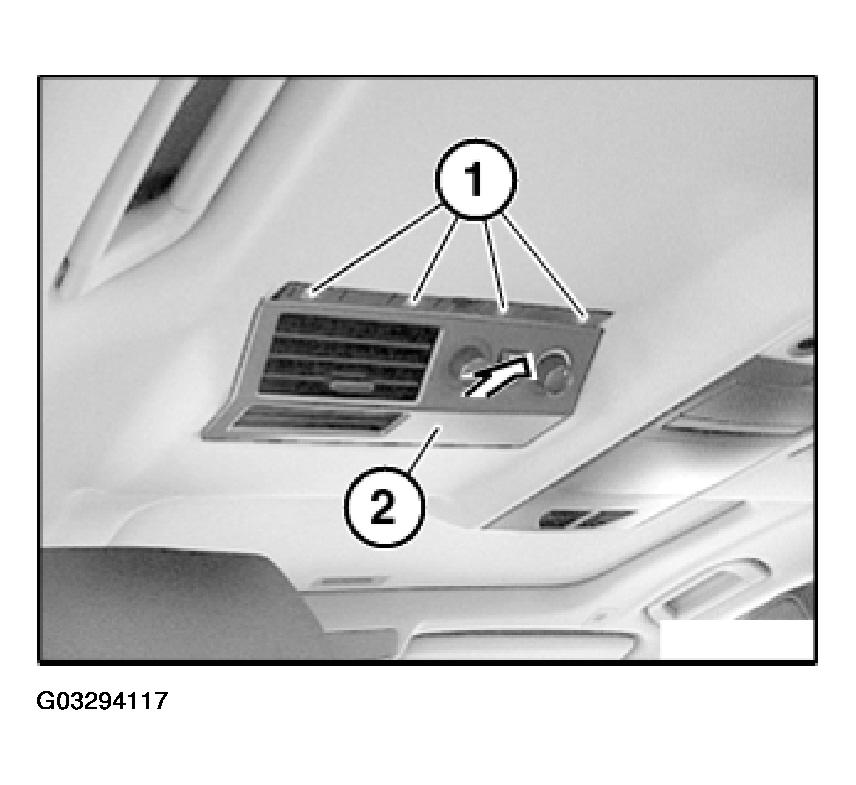

Fig 2: Identifying Operating Unit Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides of operating unit (2) are correctly seated in roofliner.

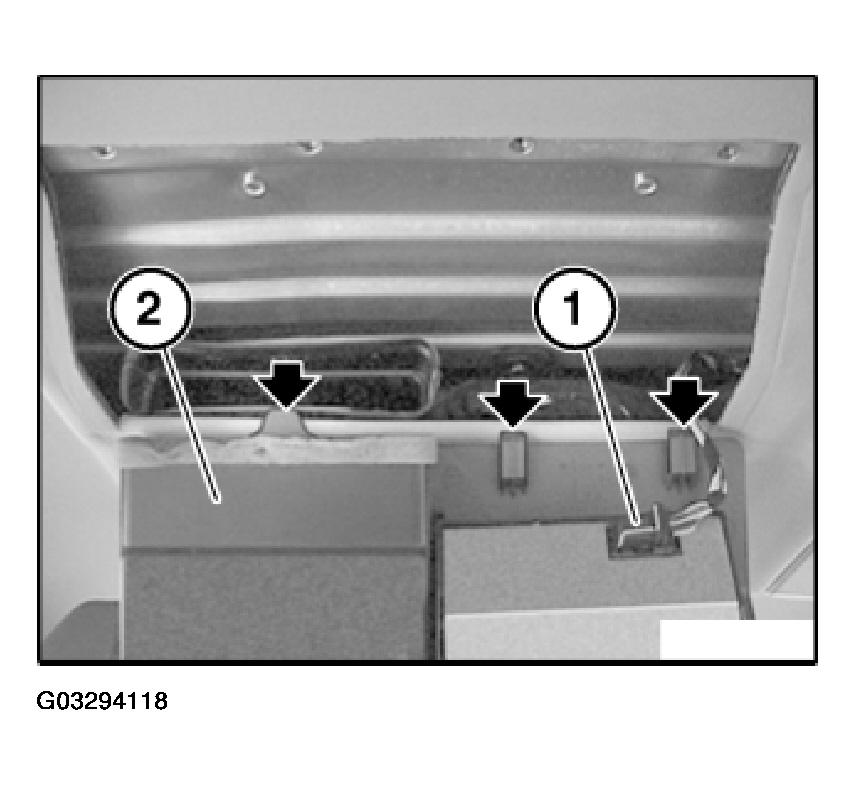

Fig 3: Locating Guides Of Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.
