51 47 440 Removing and installing/replacing rear carpet on seat pan
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove left/right Front Seat
- Remove Rear Seat
- Remove Handbrake Lever
- Remove Trim Panel For Door Pillar on left/right
- Remove Entrance Cover Strip at rear inside
Version with central bass speaker:
- Remove Central Bass Speaker Trim on left/right

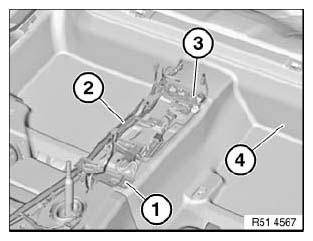

Remove holder (1).
Pull back cable (2) with cable holder (3).
Feed out carpet (4).
Installation:
Make sure openings for air duct and attachment points are correctly positioned.
