51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Snap trim (2) out of clips (1) at bottom.

Feed out trim (2) for door pillar from entrance cover strip (3).

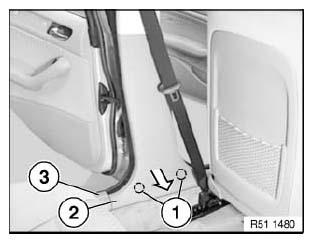

Fig 1: Identifying Entrance Cover Strip, Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Partially detach mucket in area of B-pillar panel.

Carefully feed out bottom trim (1) from top trim (2).

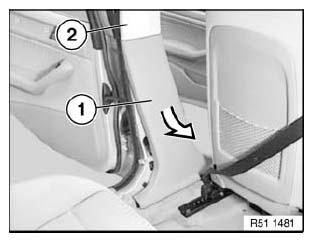

Fig 2: Identifying Bottom Trim And Top Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

Guides (2) on trim (3) must not be damaged.

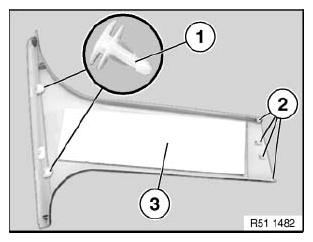

Fig 3: Identifying Clips, Guides And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
