51 71 417 Replacing Rear Spoiler Lower Section

Necessary preliminary tasks:

• Remove rear spoiler lower section, refer to 51 71 415 REMOVING AND INSTALLING REAR SPOILER LOWER SECTION
• Remove antenna (AM pickup), refer to 65 24 100 REMOVING AND INSTALLING/REPLACING ANTENNA (AM SENSOR)
• Remove additional brake light, refer to 63 25 000 REMOVING AND INSTALLING/REPLACING ADDITIONAL STOP LIGHT

Attachment parts on underside of rear spoiler lower section:

Attach muckets (1) on left/right.

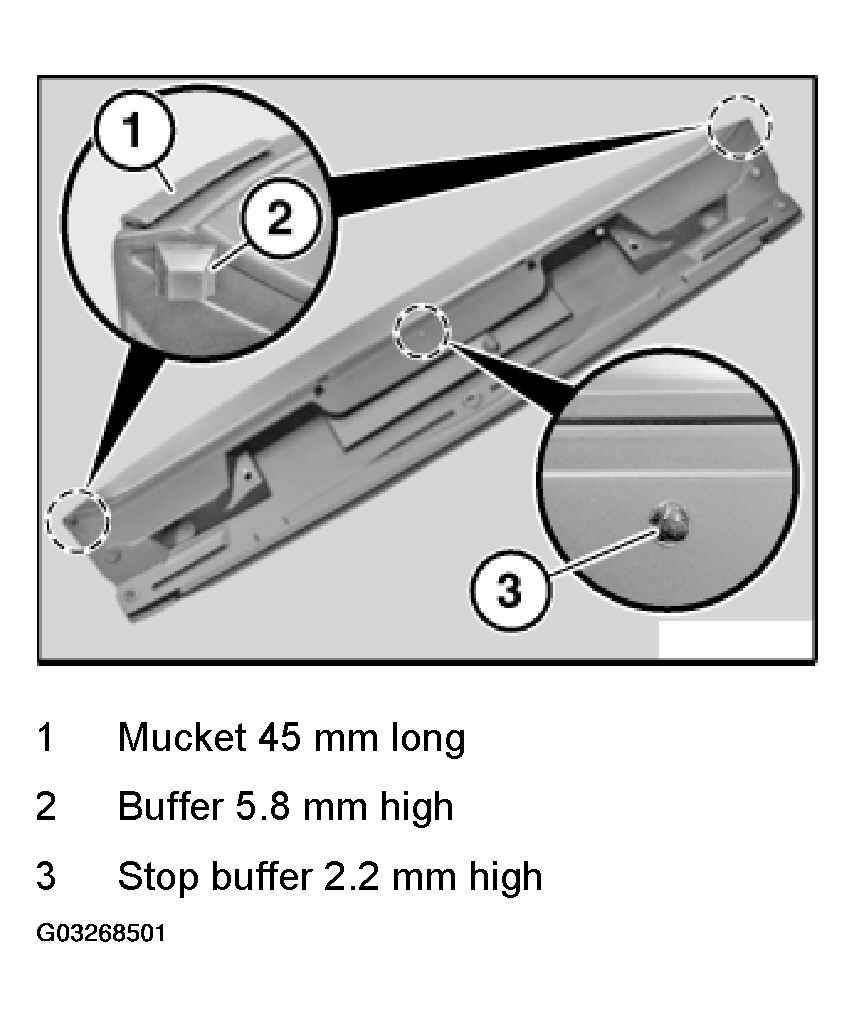

Fig 1: Locating Parts On Underside Of Rear Spoiler Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

Stick on buffers (2) on left/right.

Stick on stop buffer (3) in middle.

Attachment parts on upper side of rear spoiler lower section:

Stick on felt strips (1 and 2) on left/right.

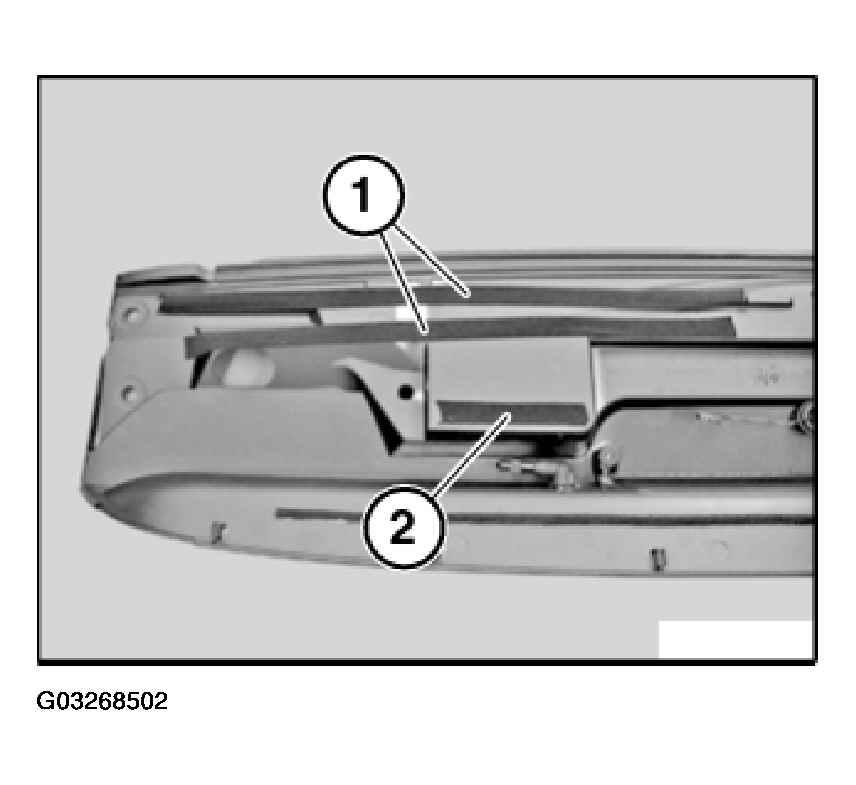

Fig 2: Locating Parts On Upper Side Of Rear Spoiler Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust spray nozzle for rear window wiper. Refer to 61 62 110 REMOVING AND INSTALLING / REPLACING SPRAY NOZZLE FOR REAR WINDOW WASHER UNIT .
