61 62 110 Removing and installing / replacing spray nozzle for rear window washer unit

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

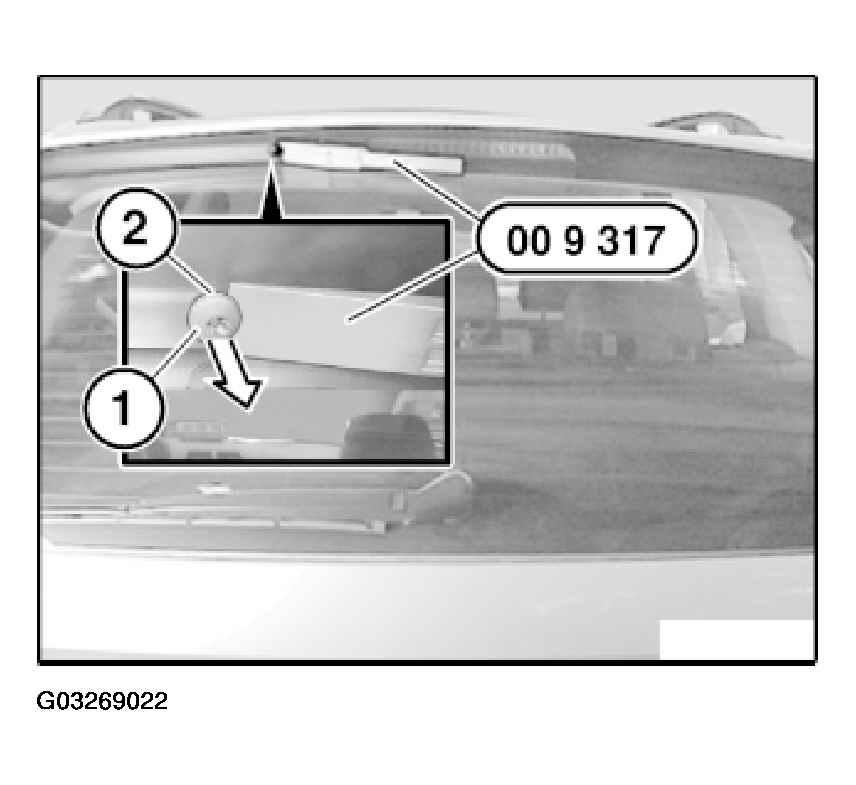

Lever spray nozzle for rear window washer system (1) with special tool 00 9 317 out of spray nozzle holder (2).

Fig 1: Identifying Spray Nozzle Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

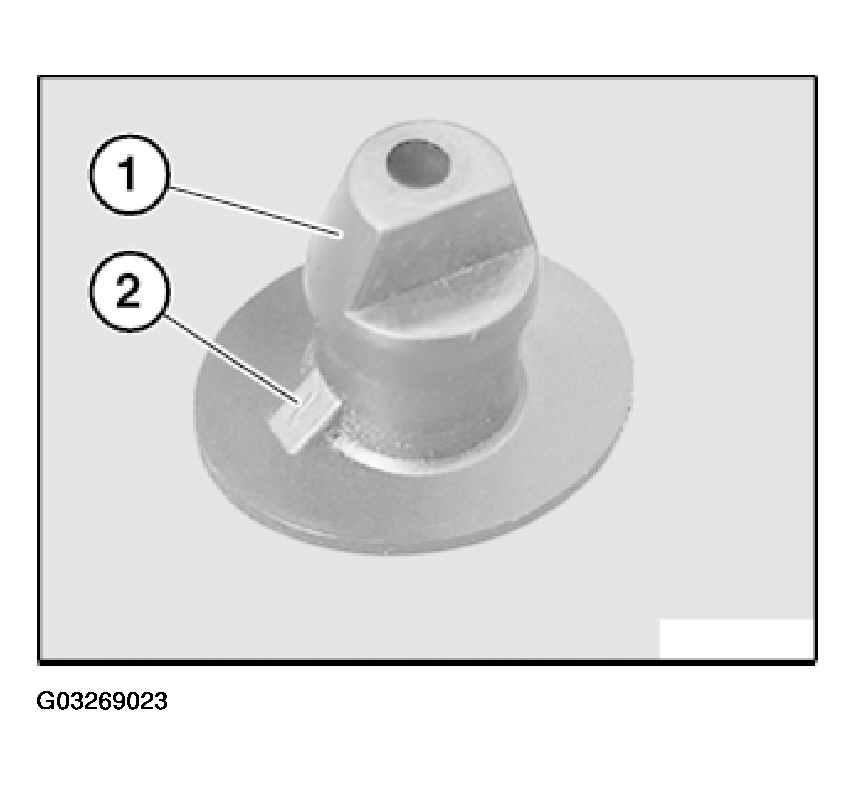

Insert lug (2) of spray nozzle for rear window washer system (1) into groove of spray nozzle holder.

Replacement only:

Adjusting spray nozzle on rear window washer unit.

Fig 2: Adjusting Spray Nozzle On Rear Window Washer Unit

Courtesy of BMW OF NORTH AMERICA, INC.
