65 24 100 Removing and installing/replacing antenna (AM sensor)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper trim for rear lid upper section. Refer to 51 49 056 REMOVING AND INSTALLING/REPLACING UPPER TRIM FOR REAR LID UPPER SECTION .

Remove rear spoiler. Refer to 51 71 412 REMOVING AND INSTALLING REAR SPOILER .

Disconnect plug connection (1) and insert through opening.

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rubber grommet (1).

Detach antenna (2) and remove.

Installation:

Clean glued area.

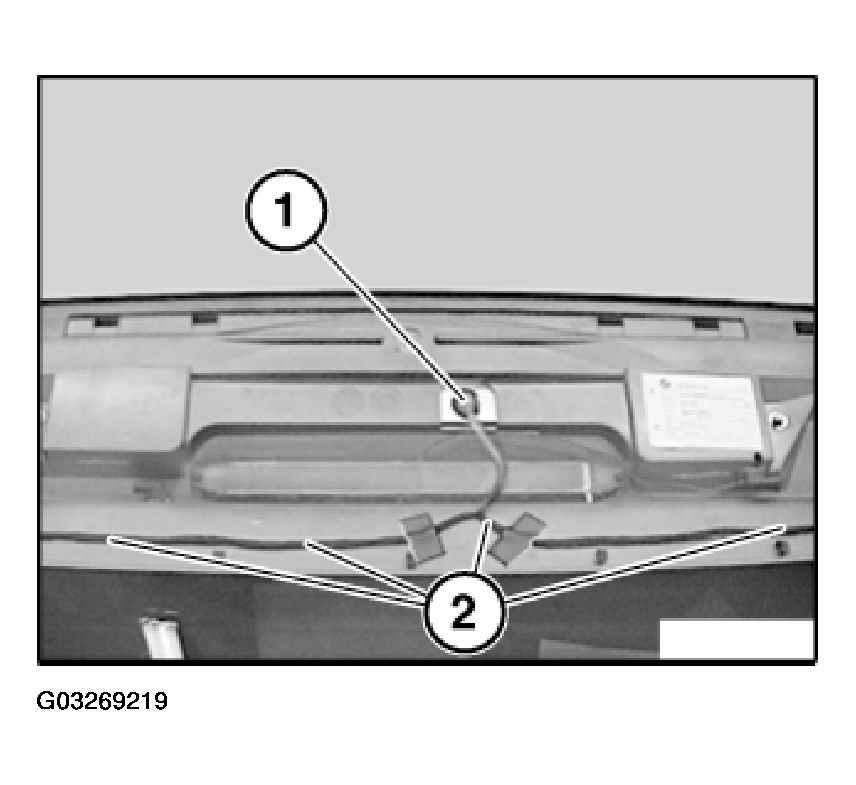

Fig 2: Identifying Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
