51 37 261 Removing And Installing/Replacing Window Cavity Cover Strip For Door Window, Rear Left Or Right

Removing roller cover from luggage compartment, refer to Owner's handbook.

Fold rear-seat backrest forwards.

Remove panel for roof pillar at rear (C-pillar). Refer to 51 43 251 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (C-PILLAR) .

Remove panel for roof pillar at rear (D-pillar). Refer to 51 43 252 REMOVING AND INSTALLING/REPLACING PANEL FOR REAR ROOF PILLAR (D-PILLAR), LEFT OR RIGHT .

Remove screws (1 and 2).

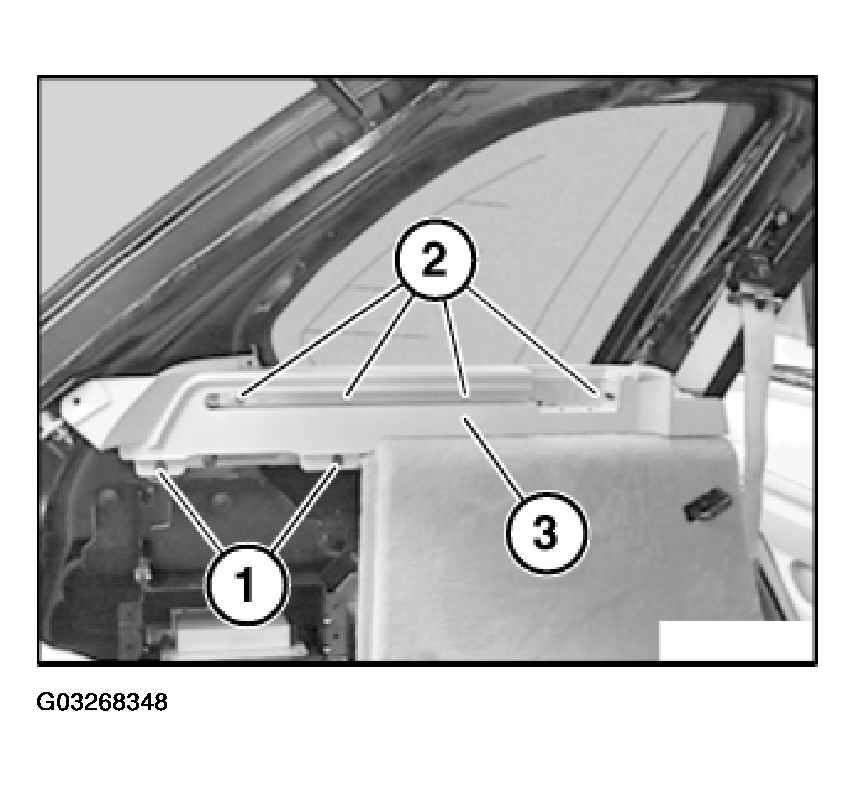

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove window cavity cover strip (3).

Installation:

Slide guides (1) into mounts of window frame.

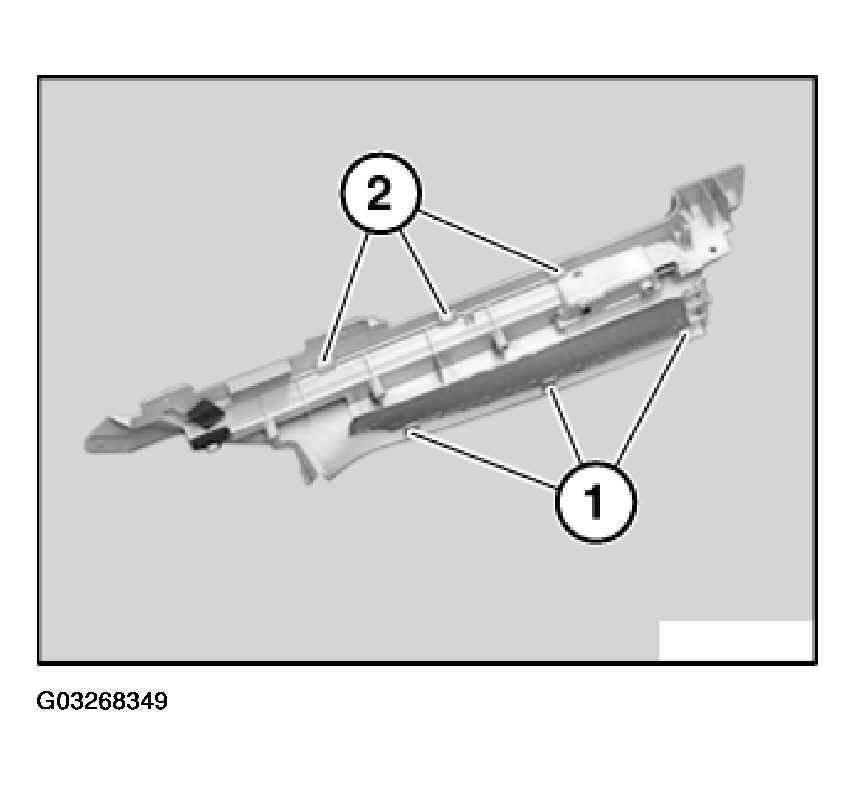

Fig 2: Installing Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Press guides (2) onto mount for window cavity cover strip.
