51 43 252 Removing And Installing/Replacing Panel For Rear Roof Pillar (D-Pillar), Left Or Right

Special tools required:

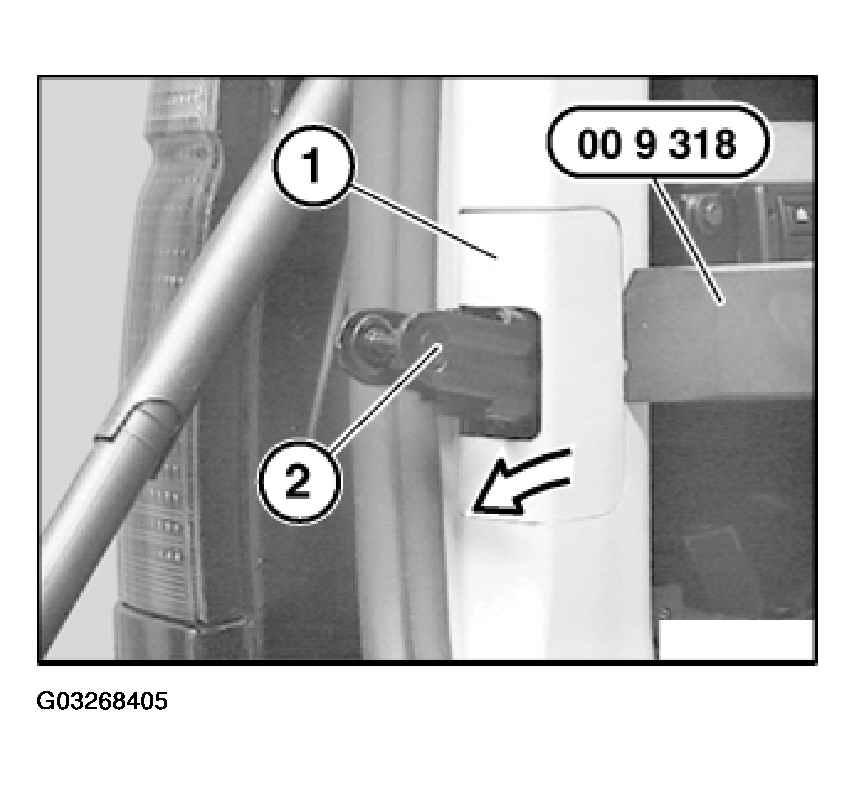

Lever out cover (1) on rear lid lock (2) with (universal wedge) special tool 00 9 318.

Fig 1: Detaching Rear Lid Rubber

Courtesy of BMW OF NORTH AMERICA, INC.

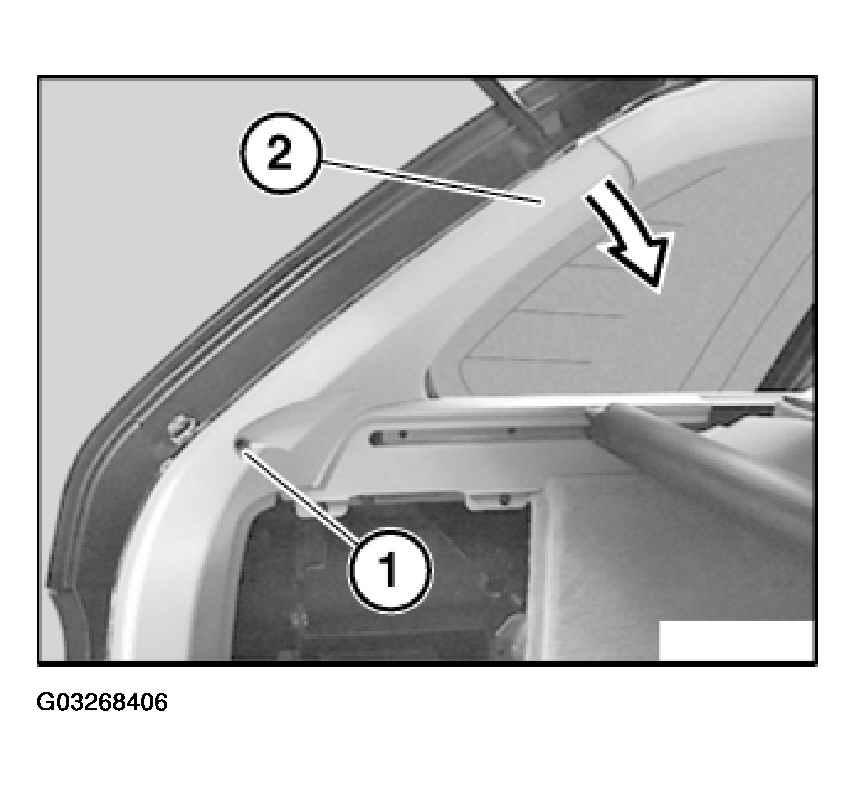

Detach rear lid rubber.

Release screw (1).

Fig 2: Detaching Panel At Top

Courtesy of BMW OF NORTH AMERICA, INC.

Detach panel (2) at top approx. 30 mm from roof pillar.

Pull panel (1) to one side.

Fig 3: Detaching Lug From Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

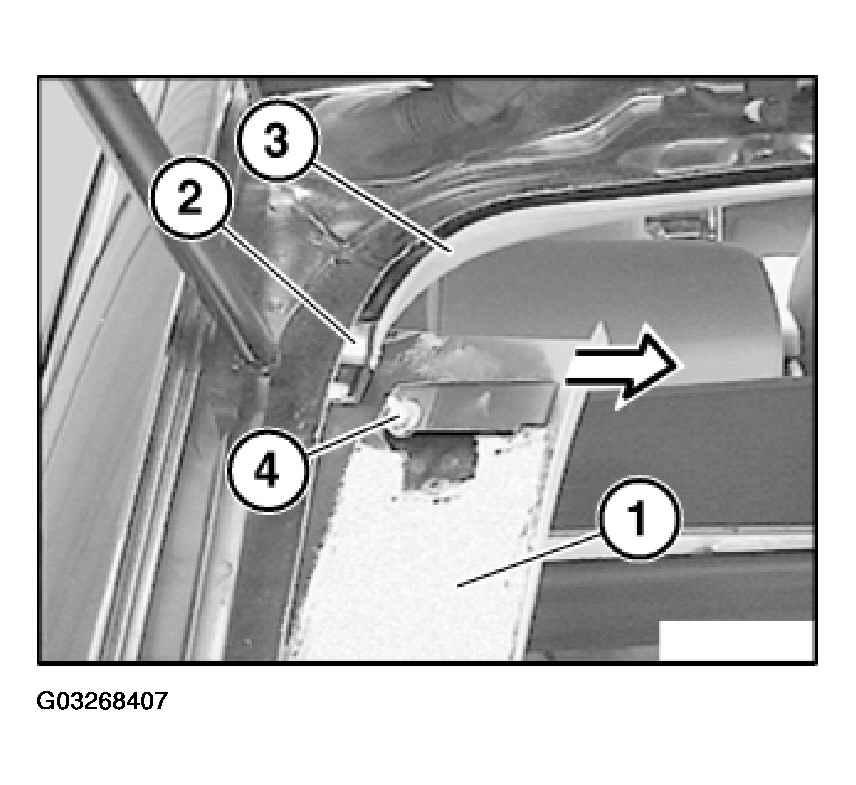

Detach lug (2) from headliner (3).

Installation:

If necessary, replace faulty lug (2) or clip (4).

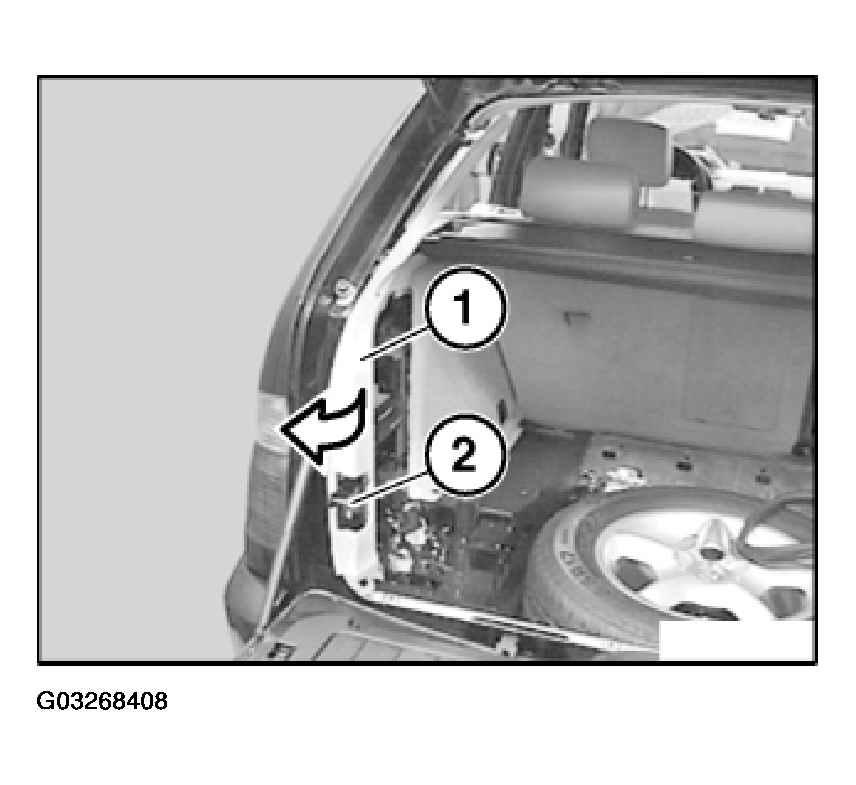

Lift panel (1) over rear lid lock (2) and remove.

Fig 4: Lifting Panel Over Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

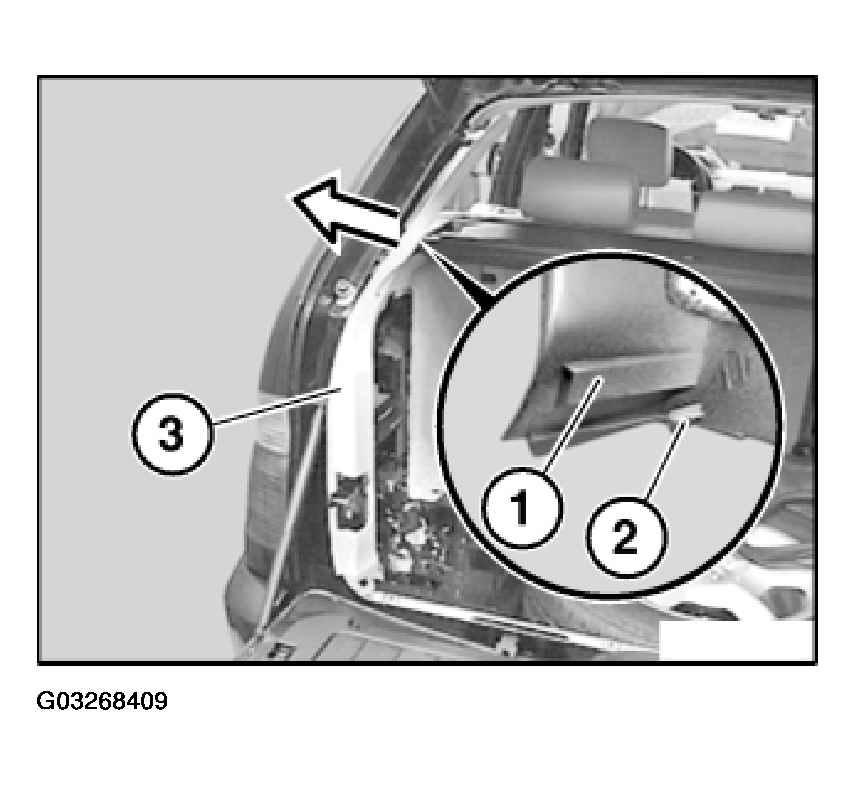

Make sure guide (1) and journal (2) are correctly seated on panel (3).

Fig 5: Identifying Guide And Journal

Courtesy of BMW OF NORTH AMERICA, INC.
