51 43 251 Removing And Installing/Replacing Trim Panel For Left Or Right Rear Roof Pillar (C-Pillar)

Remove rest side section on rear seat backrest. Refer to 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT SIDE SECTION OF REAR SEAT BACKREST (THROUGH-LOADING) .

Remove rear seat.

Release belt nut (1).

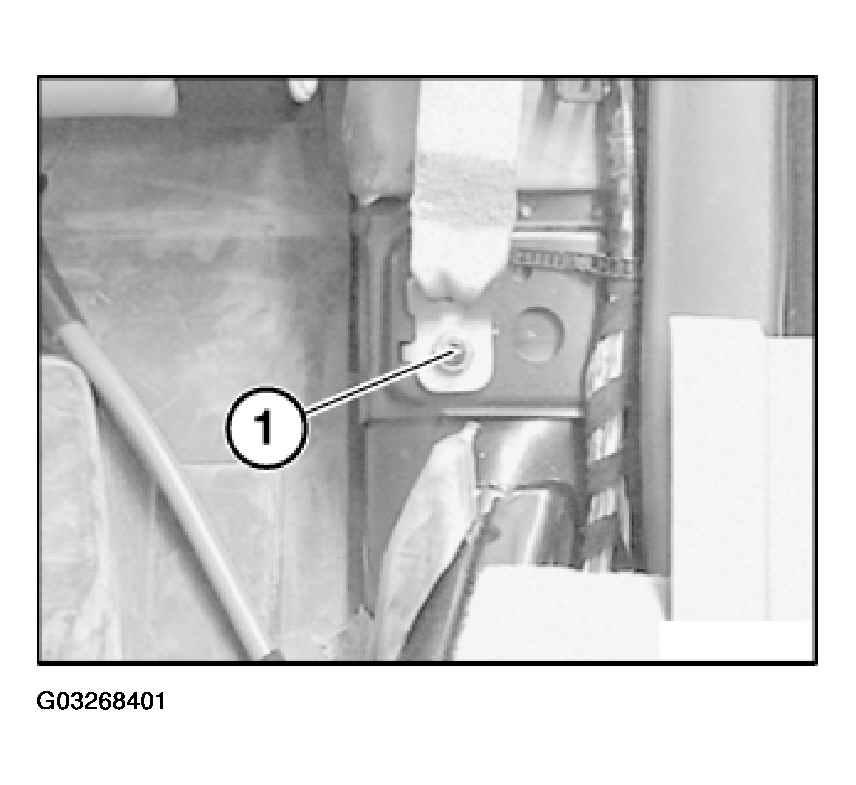

Fig 1: Releasing Belt Nut
G03268401Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 31 Nm.

Lift out expanding rivet (1).

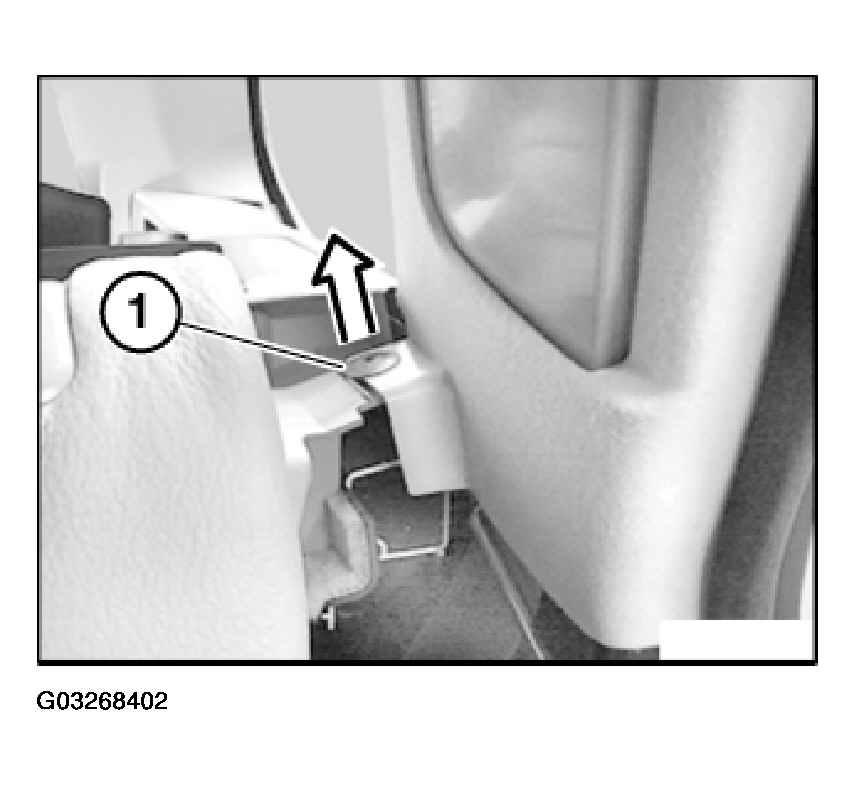

Fig 2: Lifting Out Expanding Rivet
G03268402Courtesy of BMW OF NORTH AMERICA, INC.
  1. Unclip panel at top.
  2. Pull out panel towards top.

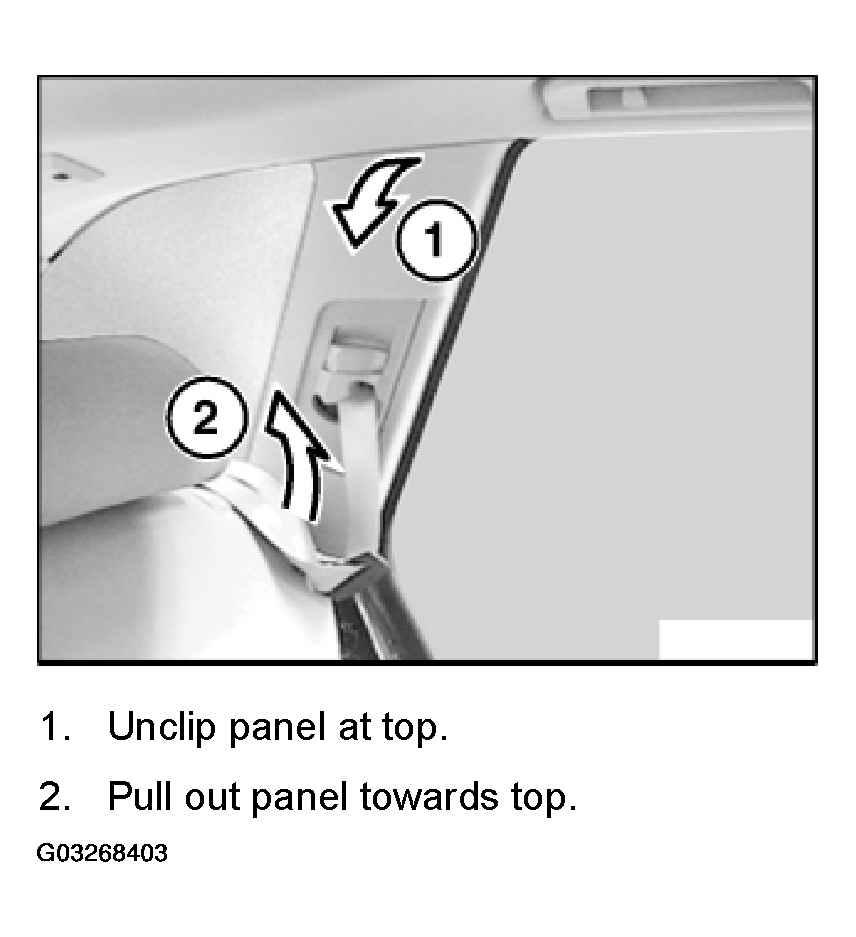

Fig 3: Pulling Out Panel Towards Top
G03268403Courtesy of BMW OF NORTH AMERICA, INC.

Feed out seat belt.

Installation:

If necessary, replace defective clip (1).

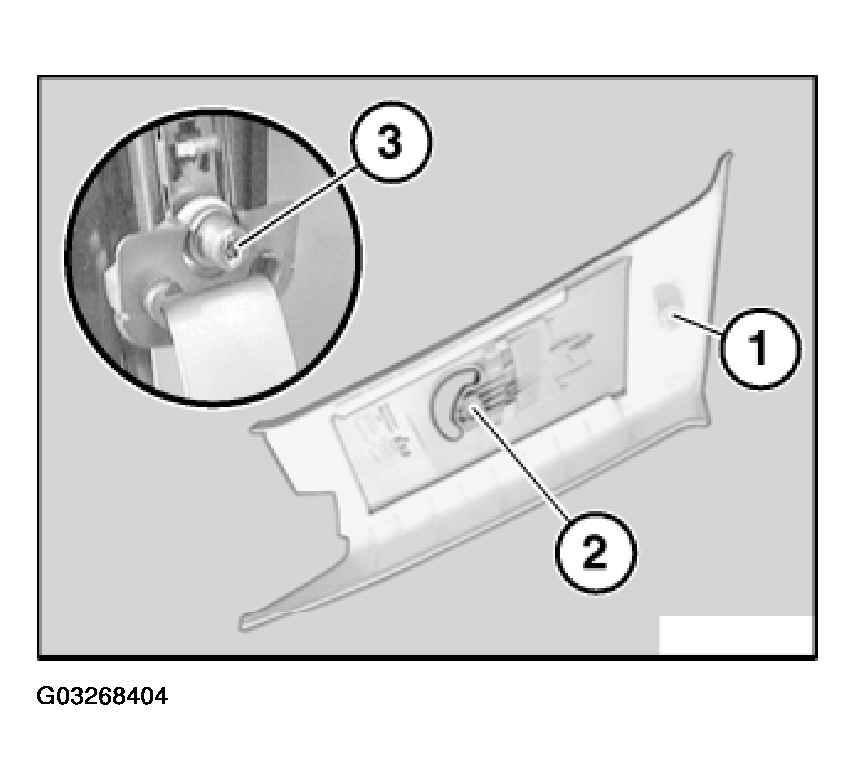

Fig 4: Replacing Defective Clip
G03268404Courtesy of BMW OF NORTH AMERICA, INC.

Belt adjustment fixture (2) must enclose head of belt screw (3).
