51 71 378 Removing And Installing/Replacing UNDERRIDE Protection
Necessary preliminary tasks:
- Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM (FROM 10/03) or 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM (UP TO 10/03) .
- Remove front underbody protection. Refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT ASSEMBLY UNDERSIDE PROTECTION .
NOTE:
The operation is described on the left side; proceed in the same way for the right side.
Version up to 10/03:

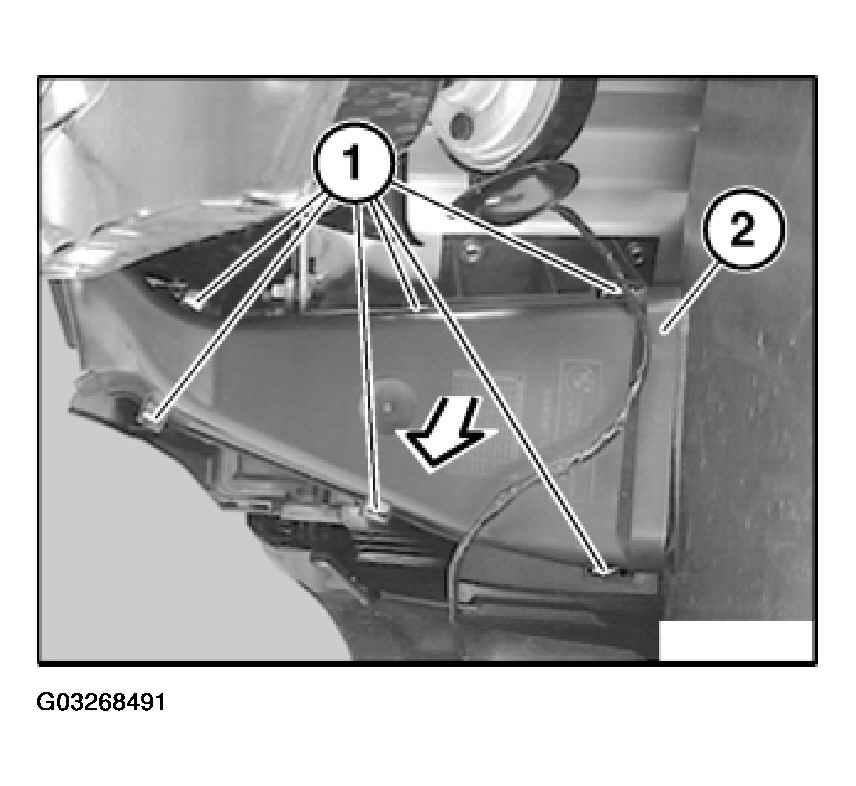

Lever out catches (1) and detach brake air duct (2).
Installation:

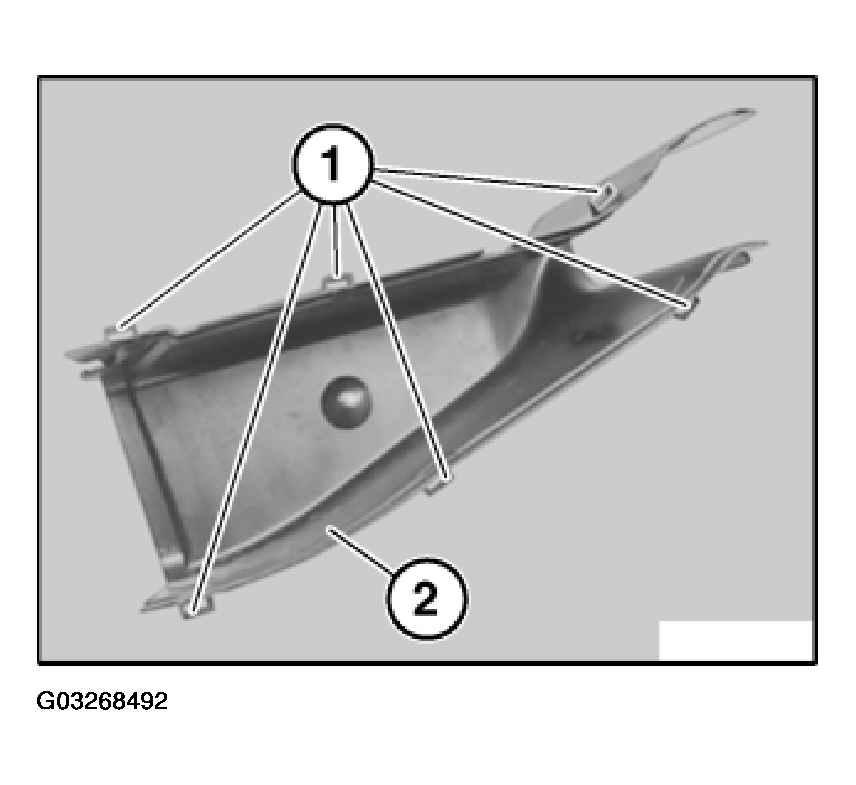

Fixtures (1) on brake air duct (2) must not be damaged.
Build date from 10/03:

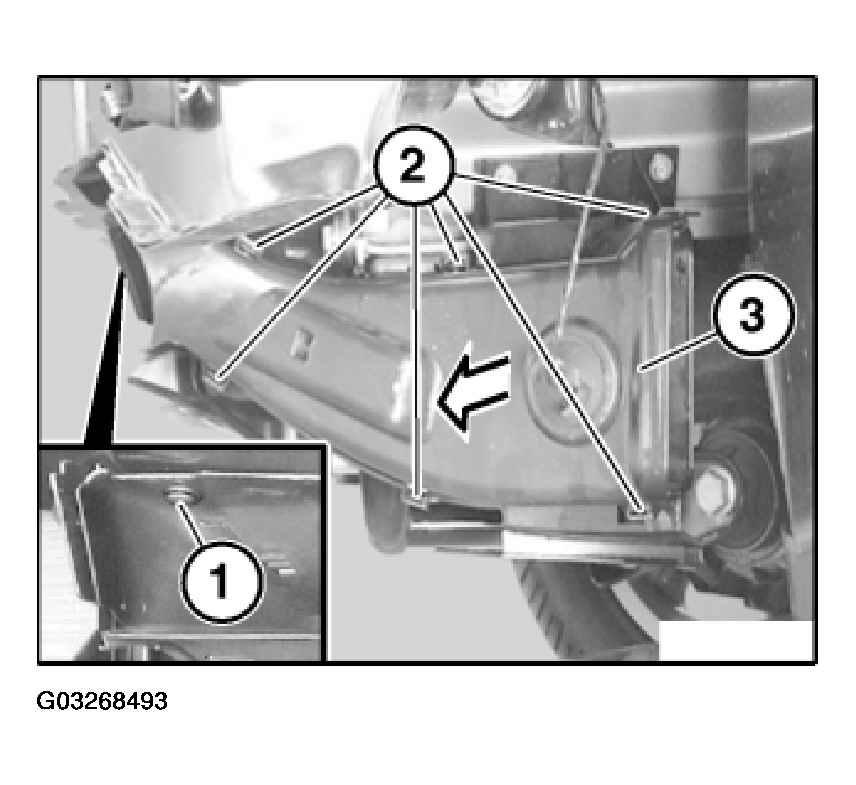

Release expansion rivet (1).
Lever out catches (2) and detach brake air duct (3).
Installation:
Fixtures (4) on brake air duct (5) must not be damaged.
Left only:

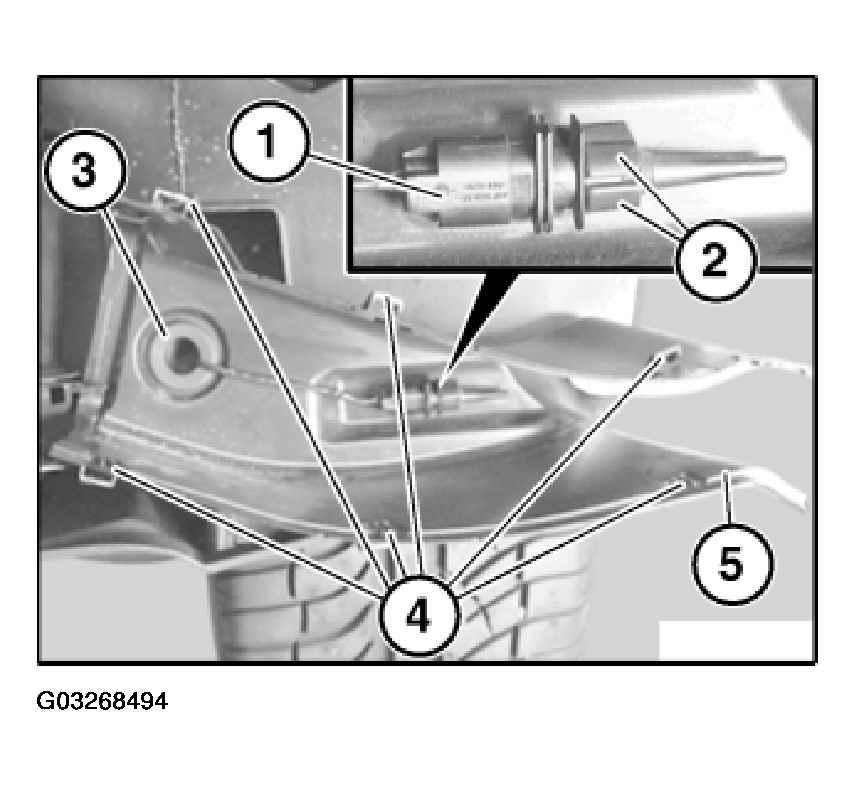

Lever temperature sensor (1) out of fixture (2).
Pull temperature sensor (1) with cable grommet (3) out of brake air duct (5).
All build versions:
Installation:

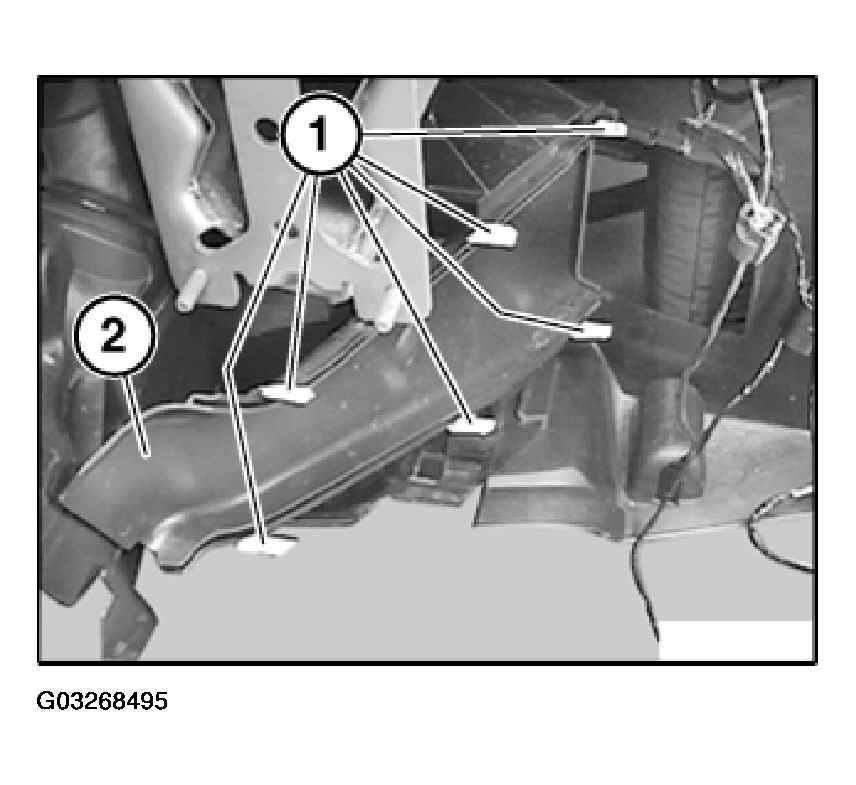

Catches (1) on brake air duct (2) must not be damaged.

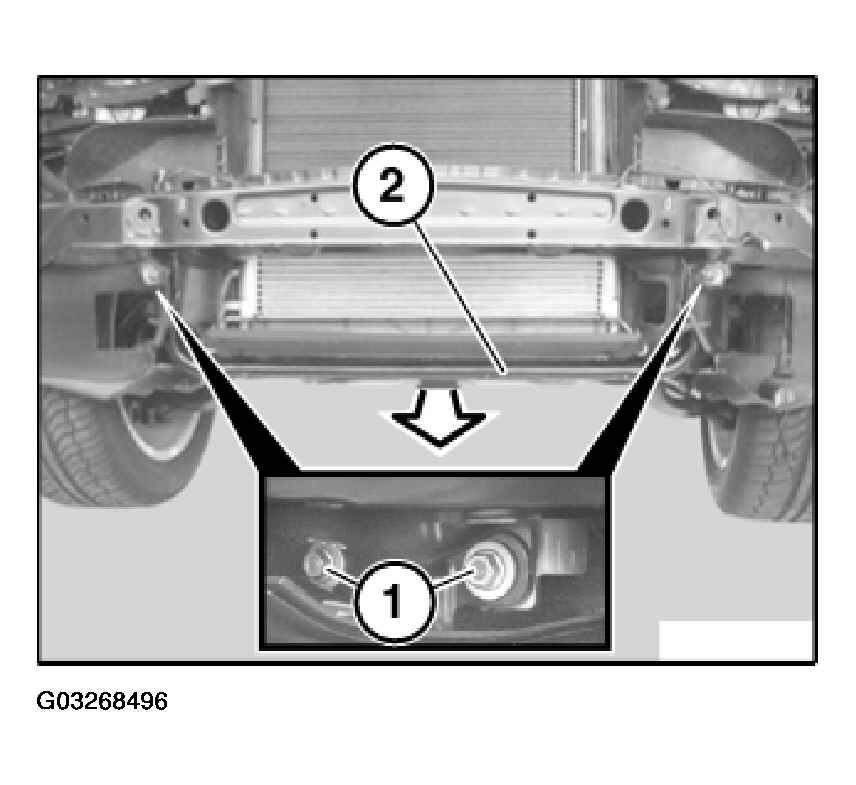

Release nuts (1) and remove underride protection (2) in direction of arrow.
Installation:

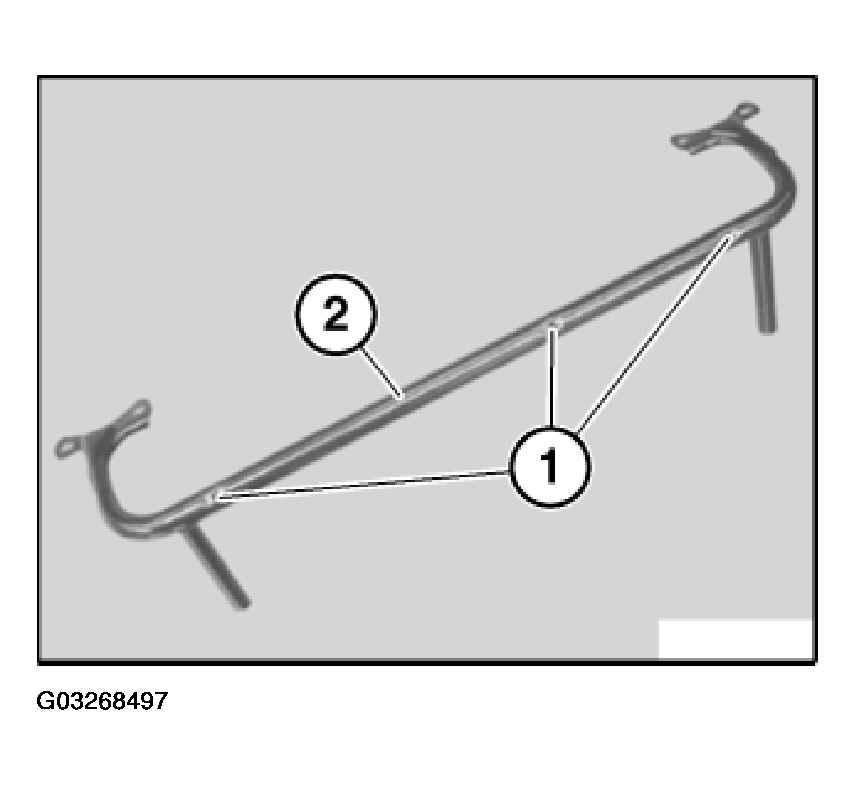

Nuts (1) on underride protection (2) must not be damaged.
