51 11 156 Removing And Installing Front Bumper Trim (From 10/03)

Special tools required:

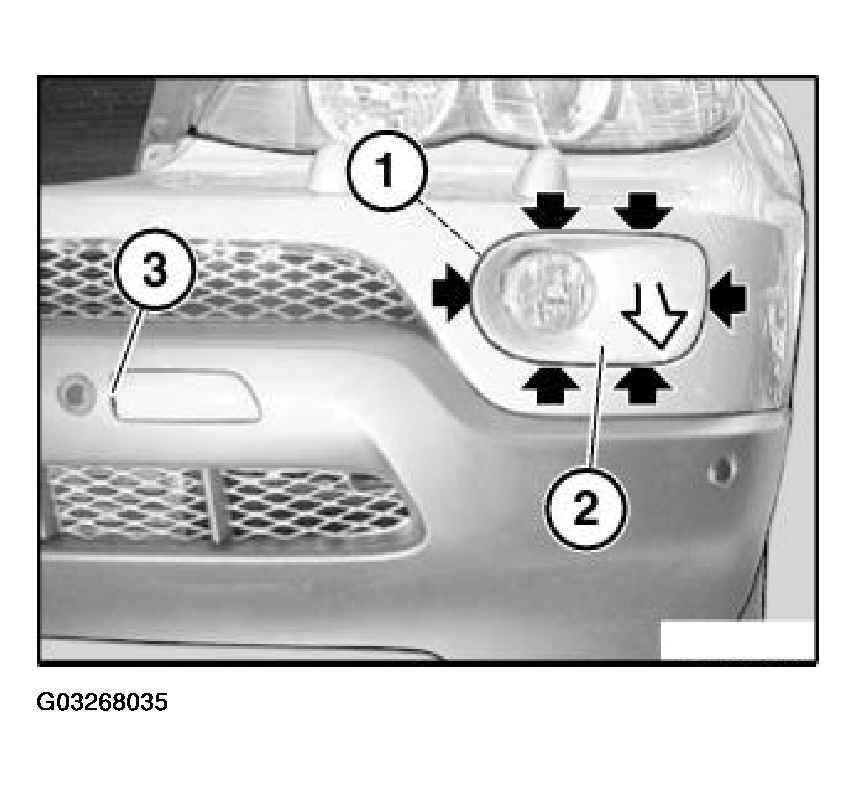

Lever out catches (1) on trim (2) with special tool 00 9 317.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out trim (3) and remove.

Installation:

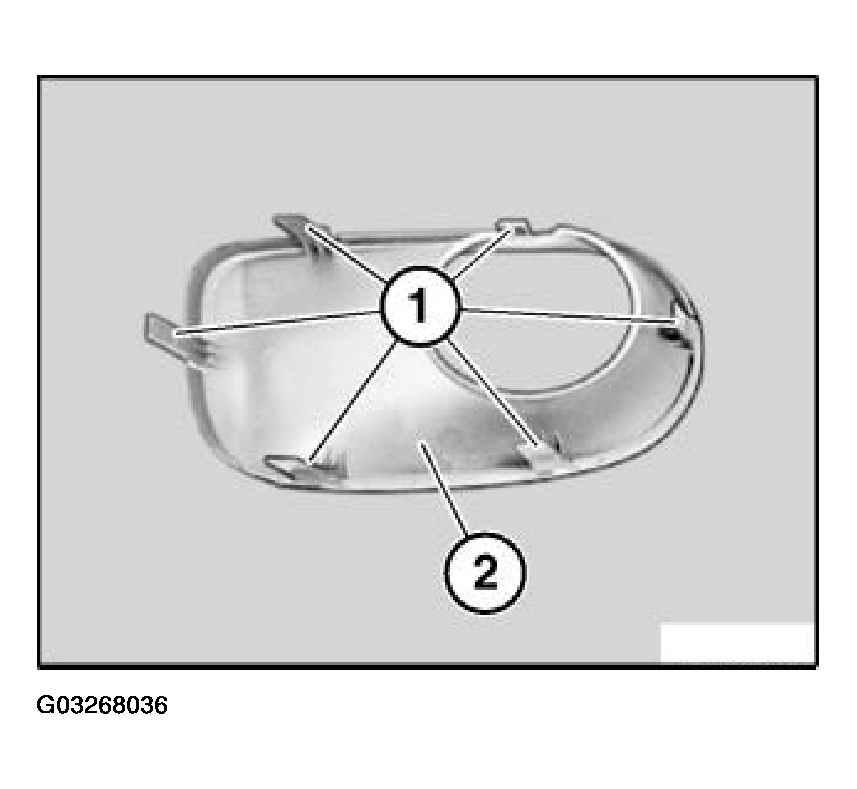

Catches (1) on trim (2) must not be damaged.

Fig 2: Identifying Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

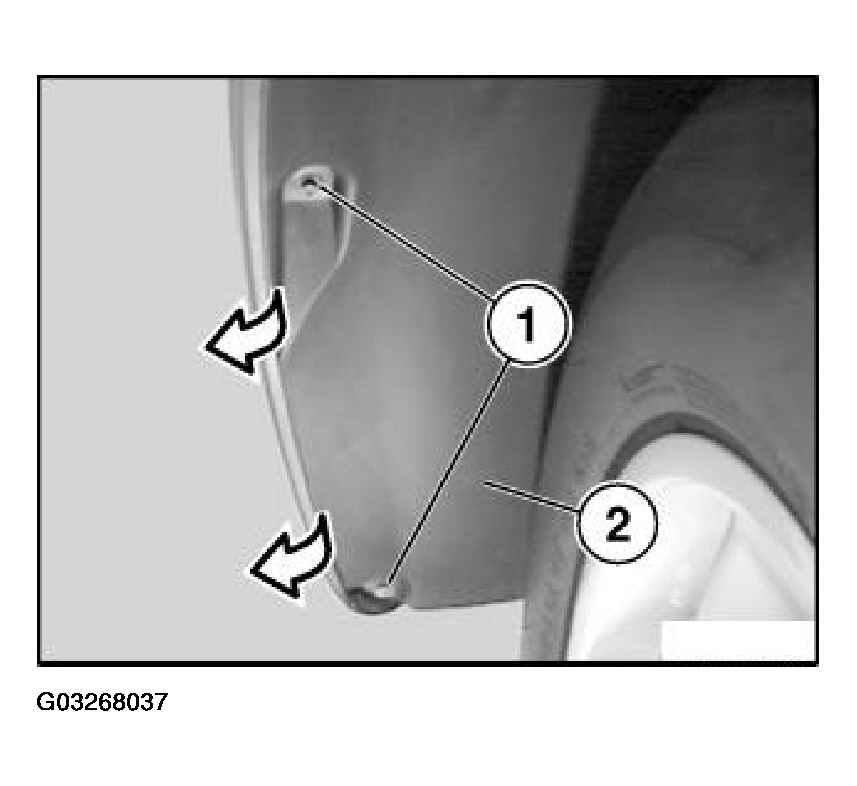

Release screws (1) on left/right and lift out wheel arch finishers (2) at side.

Fig 3: Removing Wheel Arch Finishers

Courtesy of BMW OF NORTH AMERICA, INC.

Raise hood lid.

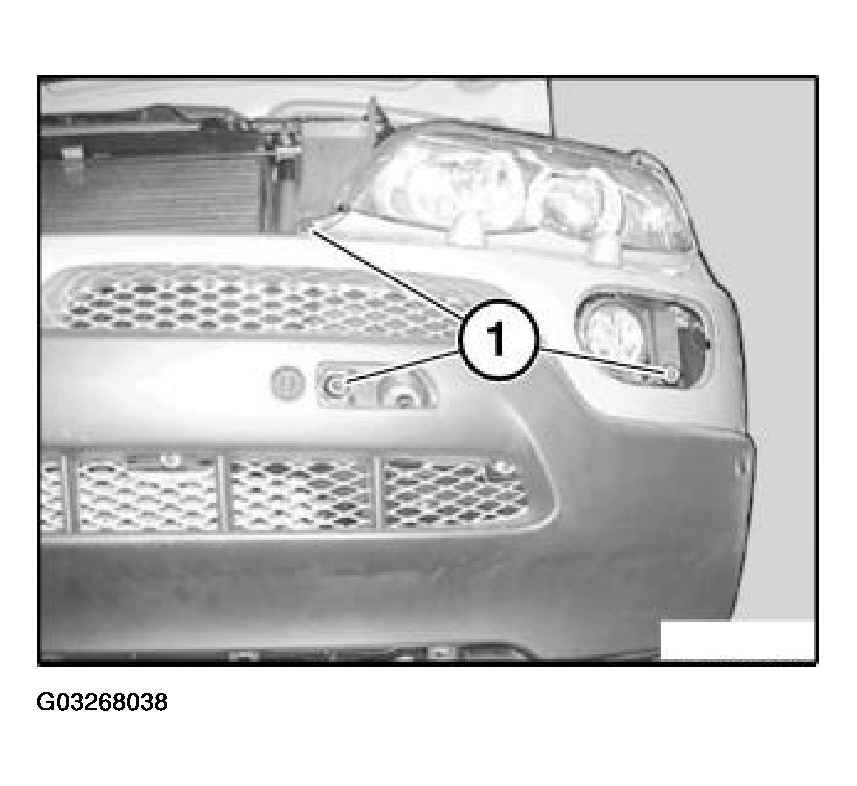

Release screws (1) on left/right.

Fig 4: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

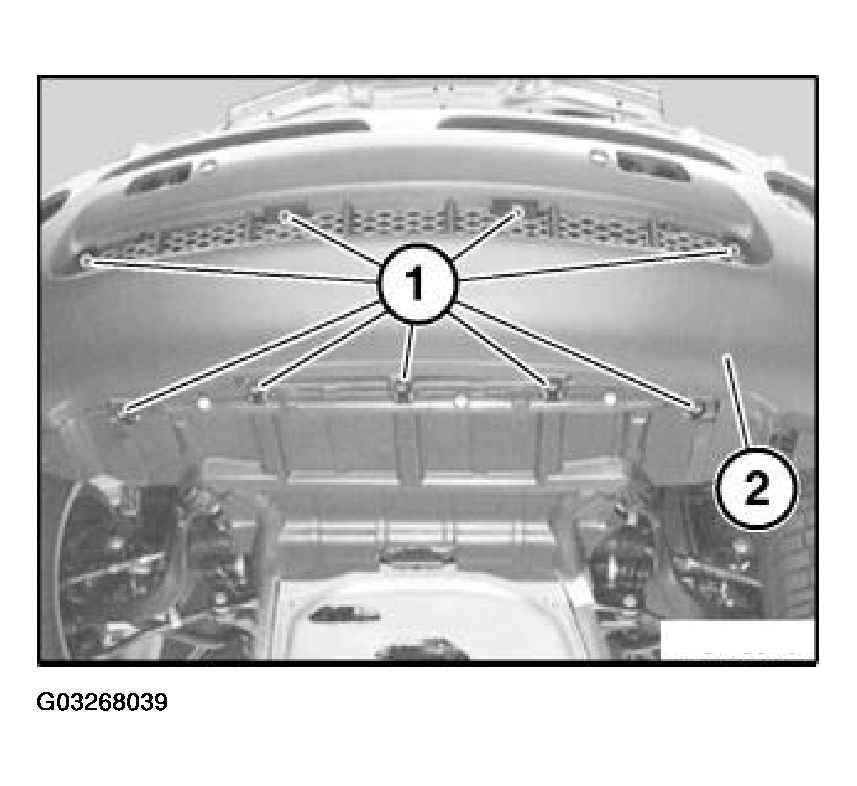

Release screws (1) on bumper trim (2).

Fig 5: Releasing Screws On Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage bumper trim when pulling off.

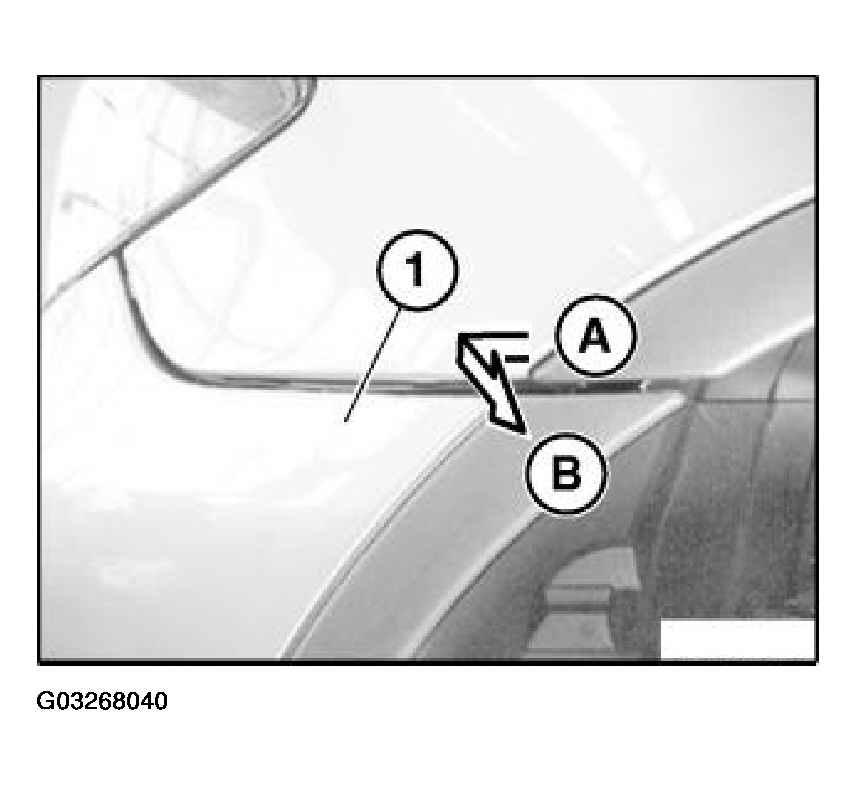

Pull bumper trim (1)

Fig 6: Pulling Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Version without headlight cleaning system:

Pull bumper trim (1) forwards a little.

If necessary, disconnect plug connections on ultrasonic sensors and/or front fog lamps. Remove bumper trim (1) towards front.

Version with headlight cleaning system:

Fig 7: Removing Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Have a rubber plug on hand.

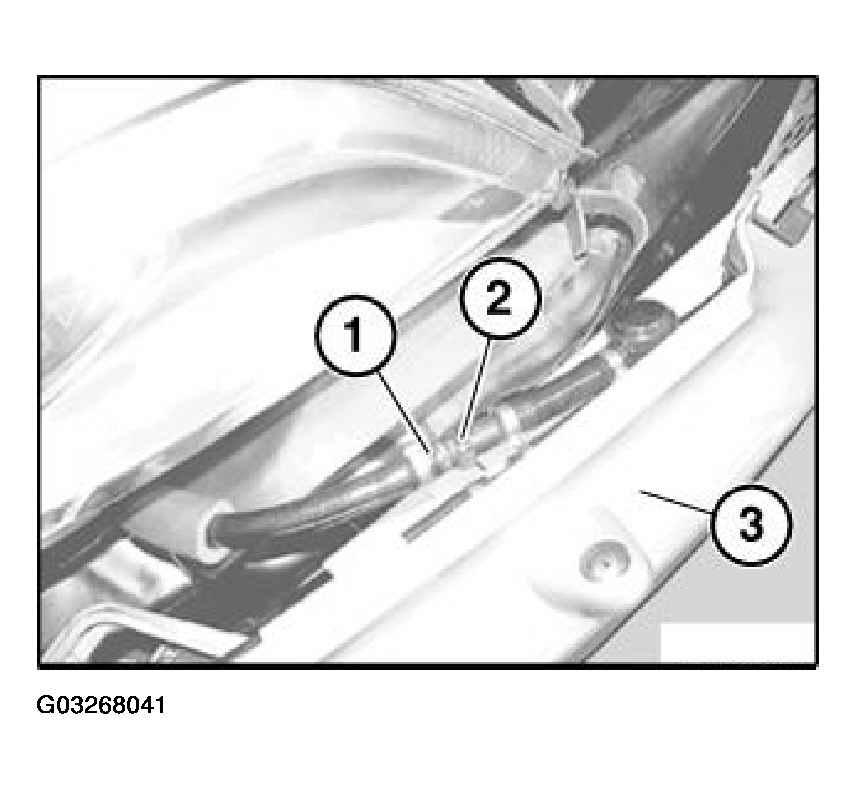

If necessary, pull bumper trim (3) forwards a little. Unlock hose (1), detach and seal pump outlet (2).

Remove bumper trim (1) towards front.

Installation:

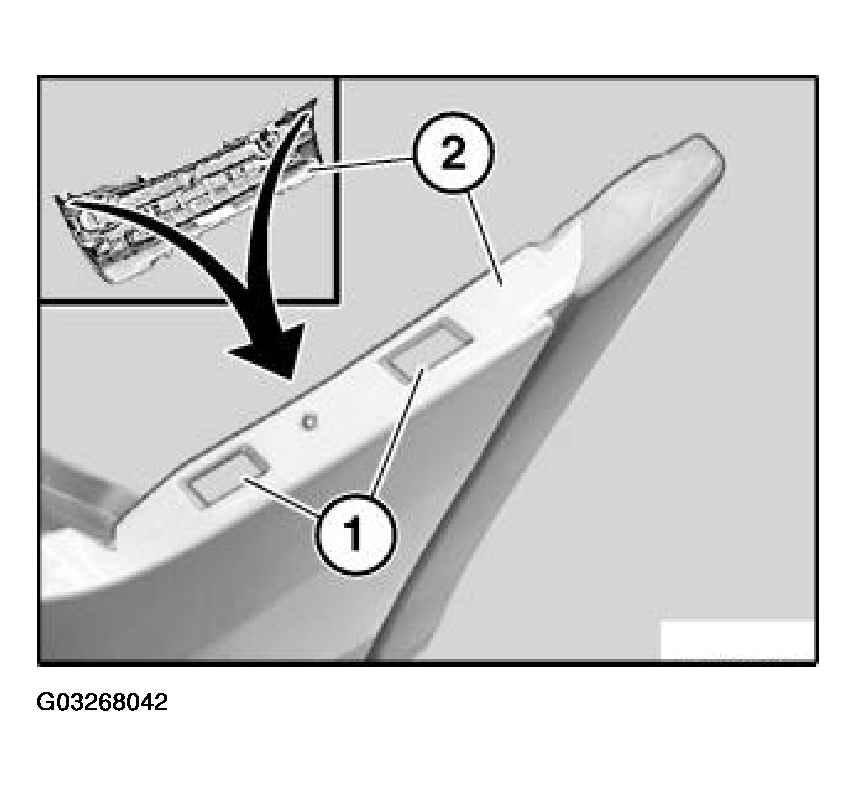

Tabs (1) on bumper trim (2) must not be damaged.

Fig 8: Identifying Tabs On Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

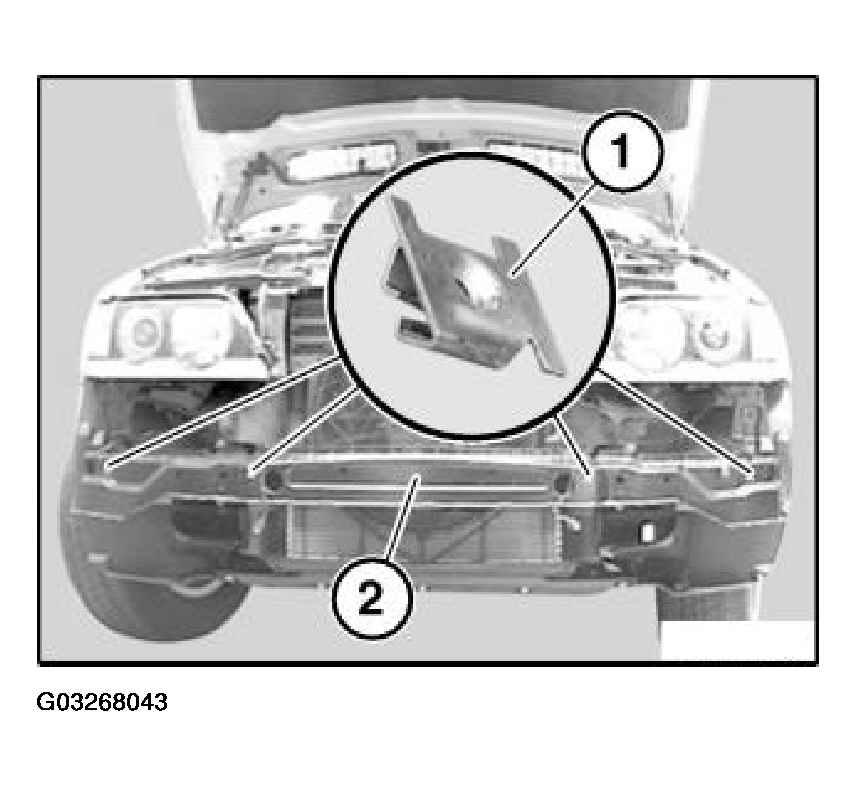

If necessary, replace faulty retainers (1) in carrier (2).

Fig 9: Replacing Faulty Retainers In Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
