51 11 156 Removing And Installing Front Bumper Trim (Up To 10/03)

Version with headlight cleaning system:

NOTE: Have a rubber plug on hand and, after detaching hose (3), seal pump outlet (4).

Fig 1: Detaching Pump Outlet

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable tie (1) from hose (2).

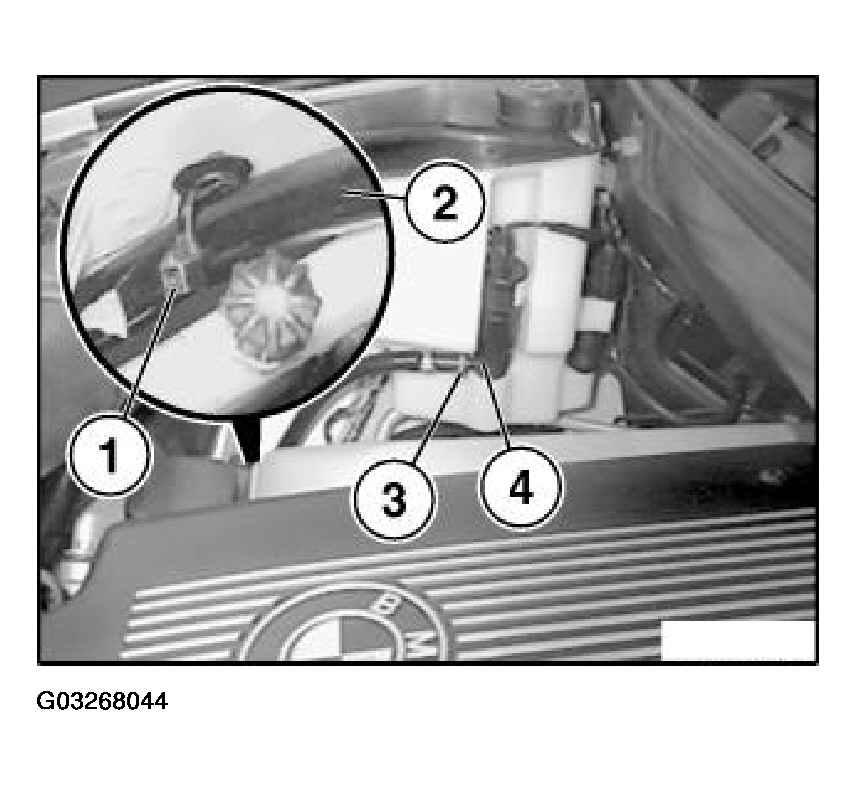

Unlock hose (3), detach and seal pump outlet (4).

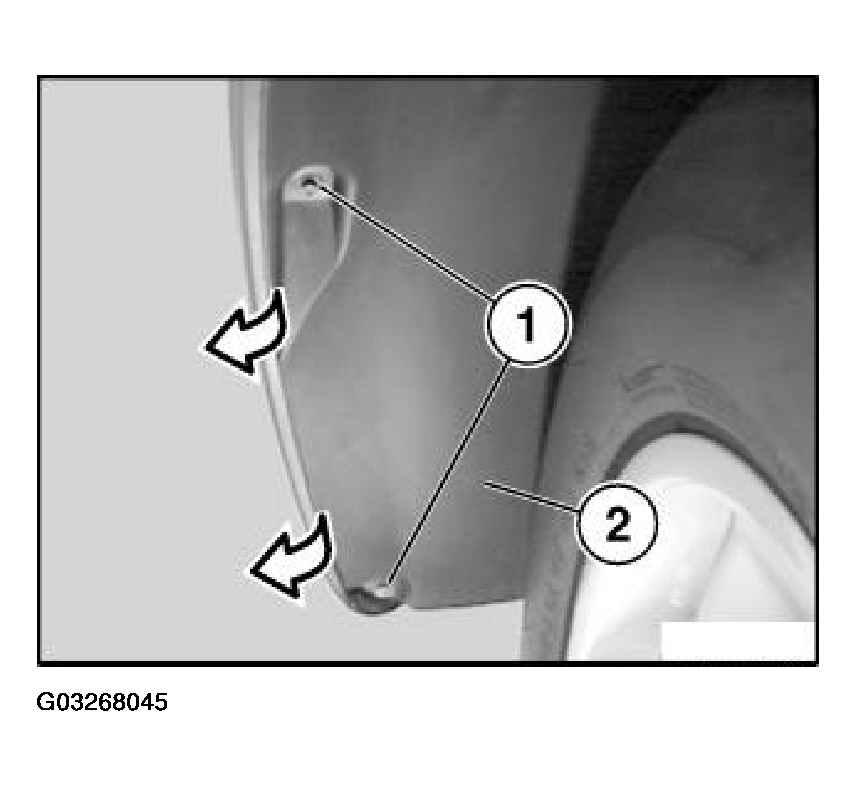

Release screws (1) on left/right and lift out wheel arch finishers (2) at side.

Fig 2: Releasing Screws On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out finishers (1 and 2) on left/right and remove.

Fig 3: Removing Finishers

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control:

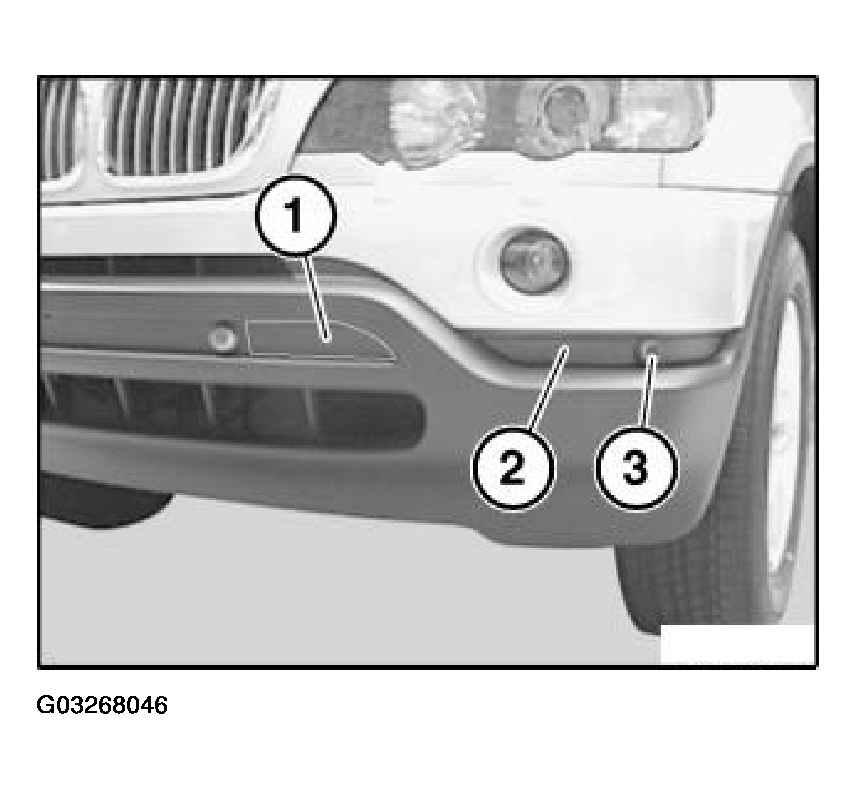

Disconnect plug connection on ultrasonic sensors (3) and remove finisher (2).

Raise hood lid.

Release screws (1) on left/right.

Fig 4: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

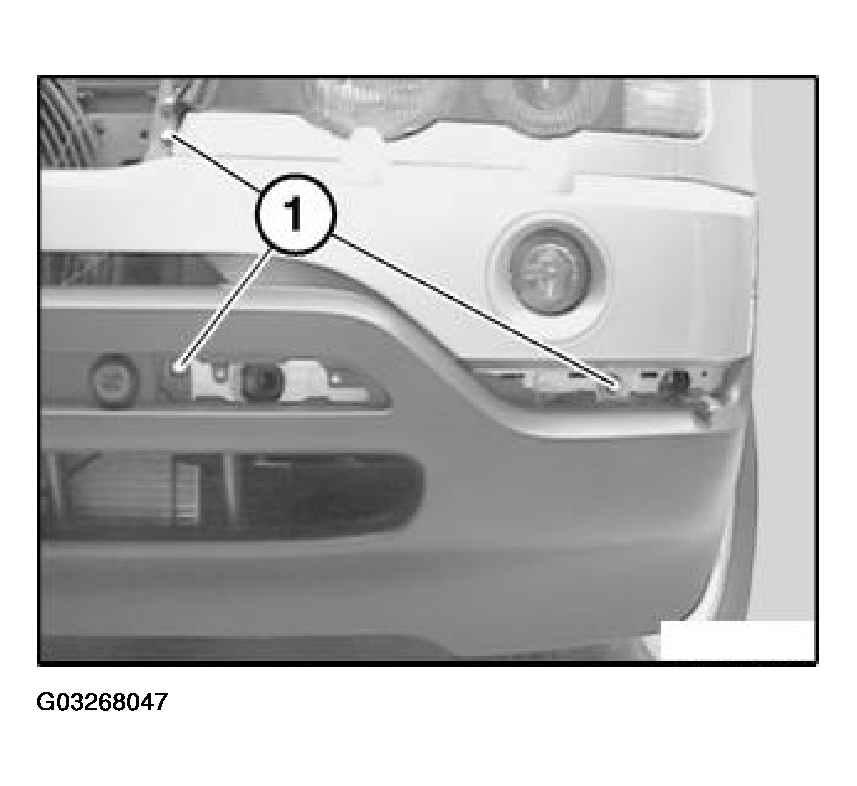

Release screws (1).

Fig 5: Pulling Off Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control and/or front fog lamps:

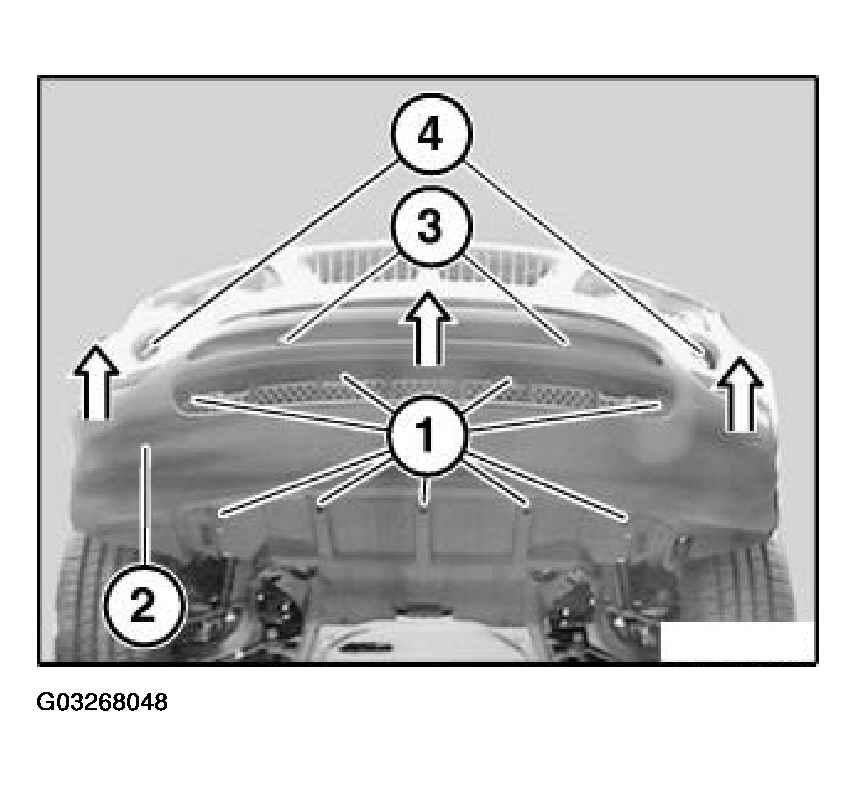

If necessary, pull bumper trim (2) forward a little and disconnect plug connections on ultrasonic sensors (3) and fog lamps (4).

Pull off bumper trim (2) and set down on a clean surface.

Installation:

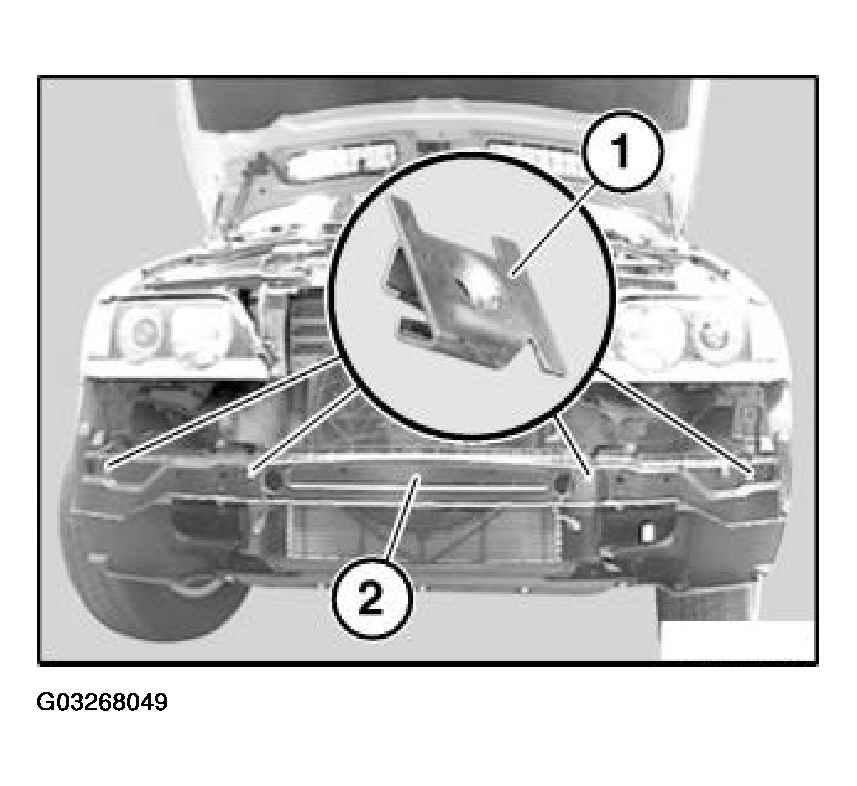

If necessary, replace faulty retainers (1) in carrier (2).

Fig 6: Replacing Faulty Retainers
