11 12 105 Removing and installing left cylinder head (N62 from 9/03)

WARNING: This page is about a different variant/trim than selected.

(Cylinder bank 5 to 8)

NOTE: To remove the exhaust manifolds, the engine must be secured in the installation position with the special tool and then the front axle bracket lowered. See FRONT AXLE SUPPORT .

Remove left exhaust manifold .

After Removing Exhaust Manifolds:

Reinstall front axle bracket provisionally and remove special tool for securing engine in installation position.

Open drain plug for coolant on left side of engine block.

Drain off coolant and dispose of correctly.

Installation:

Replace sealing ring.

Tightening torque of drain plug. See ENGINE - TIGHTENING TORQUES .

Top up coolant. Vent cooling system and check for leaks.

Remove ignition coils on cylinder bank 5 to 8. See IGNITION COIL .

Remove servomotor for left eccentric shaft.

Remove left cylinder head cover .

Remove intake air manifold .

Remove left timing case  cover.

Disconnect plug connections and lay engine wiring harness to one side.

Remove spark plugs on cylinder bank 5 to 8.

Remove vent hose on cylinder head.

NOTE: Illustration with engine removed.

Detach hose (1) on check valve (2).

Installation:

Replace sealing ring on tube (4) and coat with antiseize agent.

Removal:

Removal of cylinder head is described separately from installation.

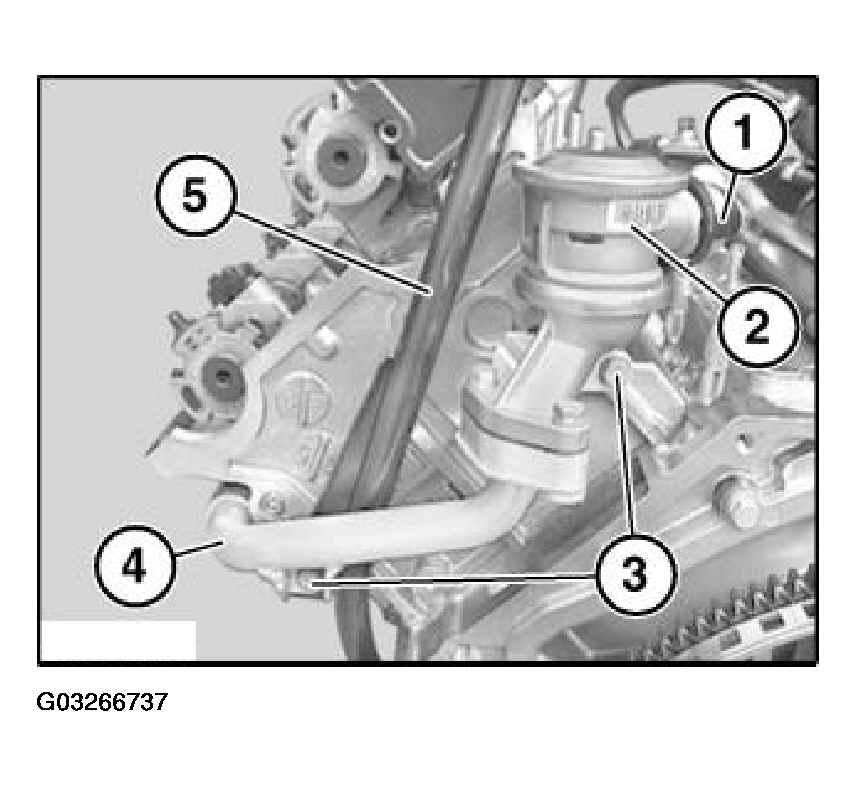

Fig 1: Removing Tube With Check Valve
G03266737Courtesy of BMW OF NORTH AMERICA, INC.

Remove inlet and exhaust adjustment unit on left side.

NOTE: Illustrations are with engine removed.

Remove eccentric shaft sensor (2).

Fig 2: Removing Eccentric Shaft Sensor
G03266738Courtesy of BMW OF NORTH AMERICA, INC.

Detach guide rail from cylinder head.

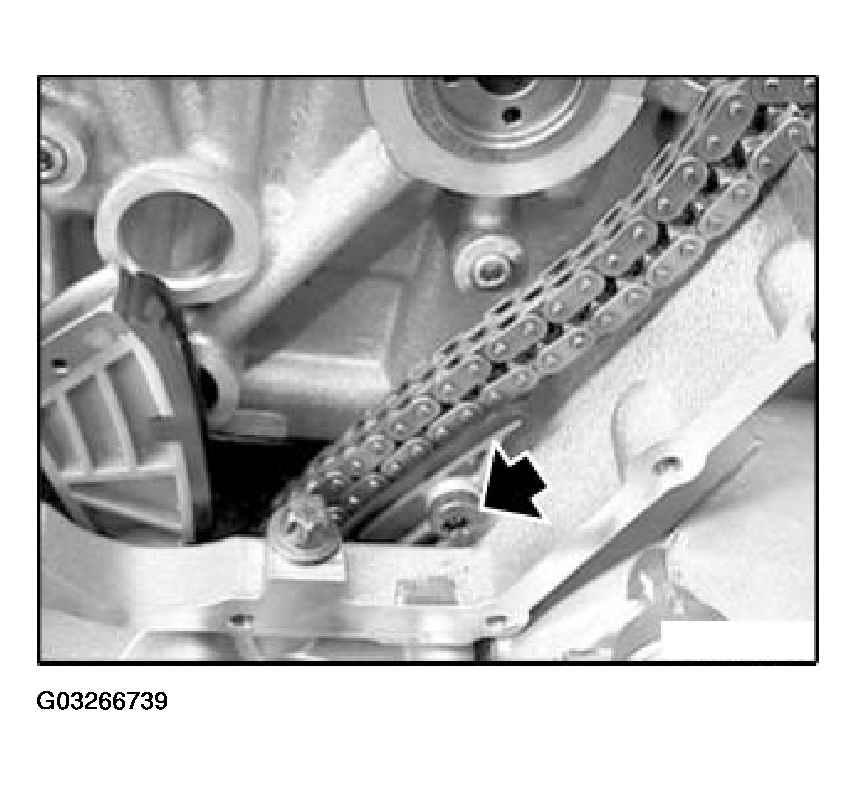

Fig 3: Removing Guide Rail From Cylinder Head
G03266739Courtesy of BMW OF NORTH AMERICA, INC.

Release screws between cylinder head and timing case  cover.

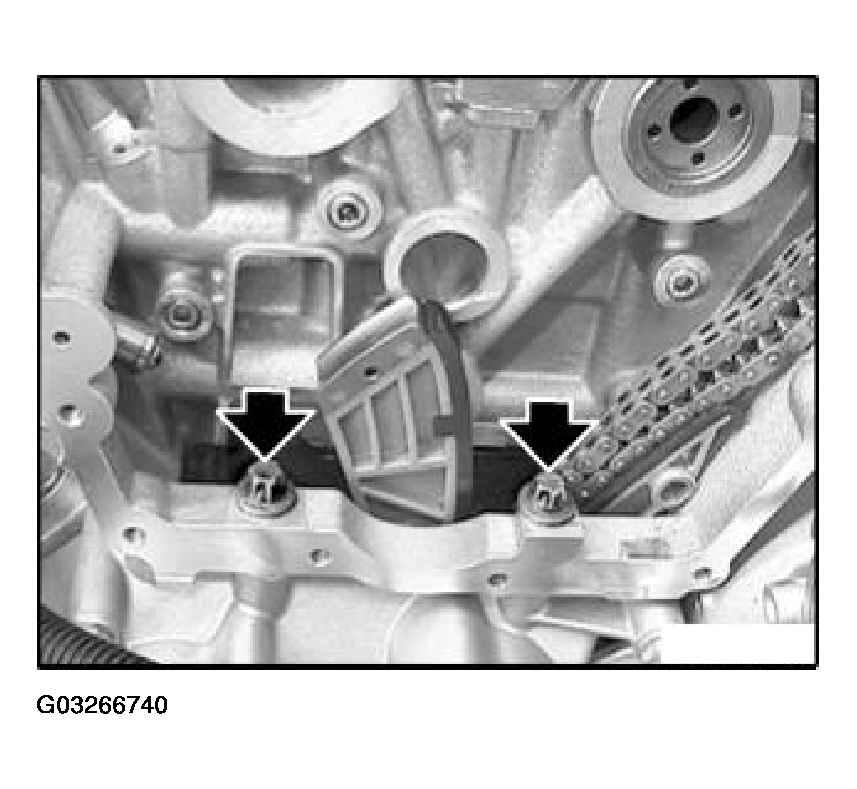

Fig 4: Releasing Screws Between Cylinder Head And Timing Case Cover
G03266740Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: At narrow points, use a socket with 3/8" drive and a short extension.

Release cylinder-head bolts in sequence 10... 1.

Lift off cylinder head.

Lift off cylinder head gasket.

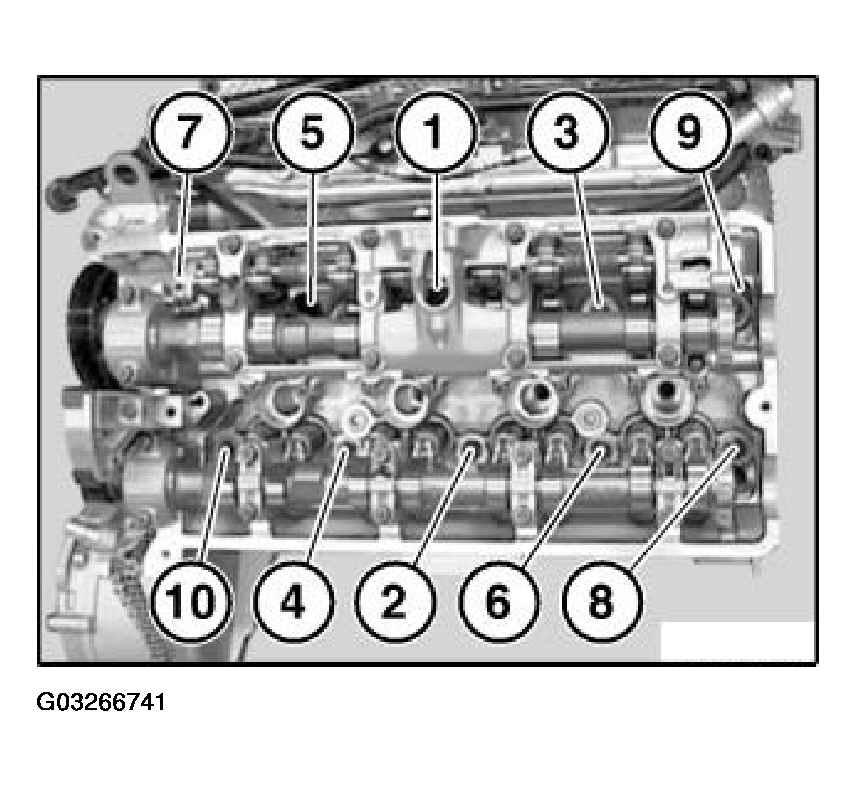

Fig 5: Releasing Cylinder-Head Bolts
G03266741Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation of cylinder head is described separately from removal.

Clean sealing faces of cylinder head and crankcase; if necessary, remove gasket debris with wooden scraper. Make sure no gasket debris drops into the oil and coolant ducts.

Threaded bores in engine block must be free of dirt and oil (risk of cracking).

Coat joint between engine block and timing case cover with Drei Bond 1209.

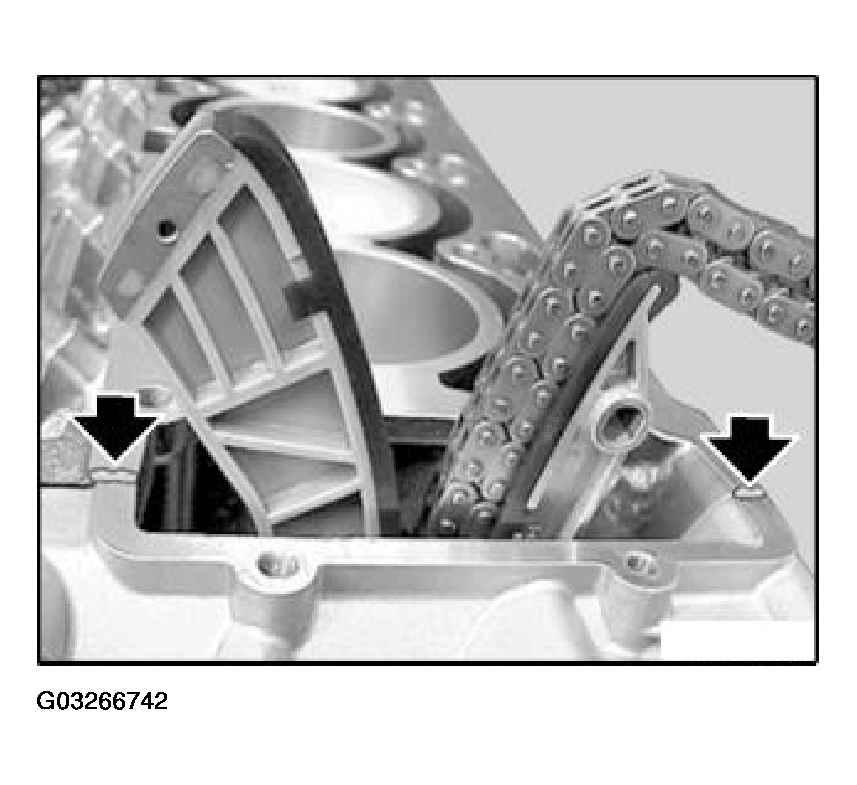

Fig 6: Coating Joint Between Engine Block And Timing Case Cover With Drei Bond 1209
G03266742Courtesy of BMW OF NORTH AMERICA, INC.

Check dowel sleeves (1) for damage and correct installation position.

Fit new cylinder-head seal.

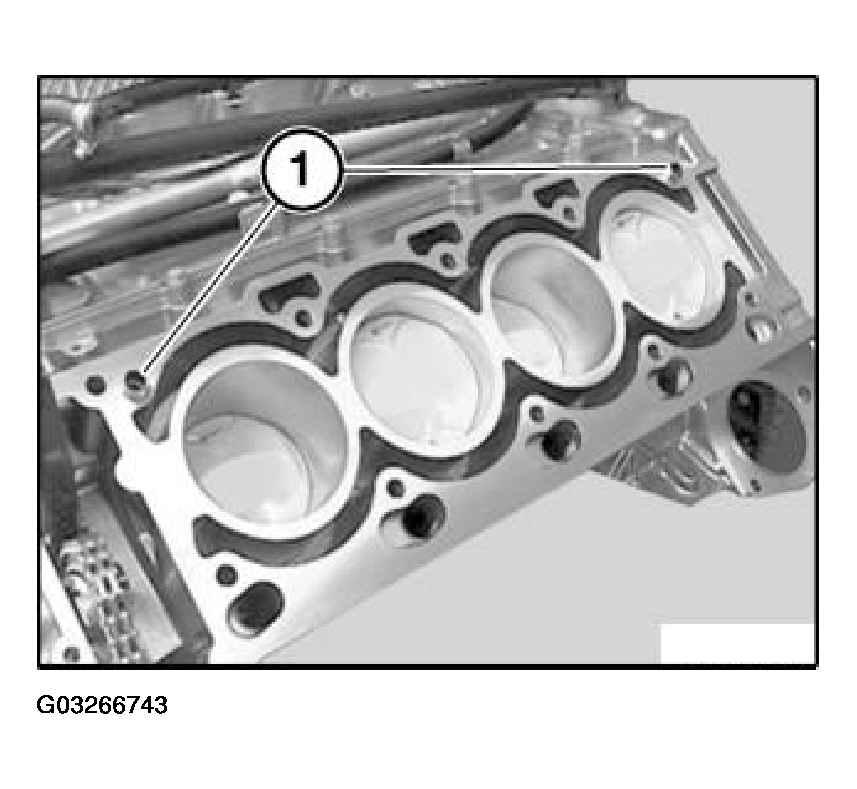

Fig 7: Identifying Dowel Sleeves
G03266743Courtesy of BMW OF NORTH AMERICA, INC.

Put the cylinder head on.

NOTE: Do not wash off bolt coating. Insert new cylinder head bolts and initially tighten so that they are free of play.

At narrow points, use a socket with 3/8" drive and a short extension.

Tighten down the cylinder-head bolts in order 1... 10.

Tightening torque, see ENGINE - TIGHTENING TORQUES .

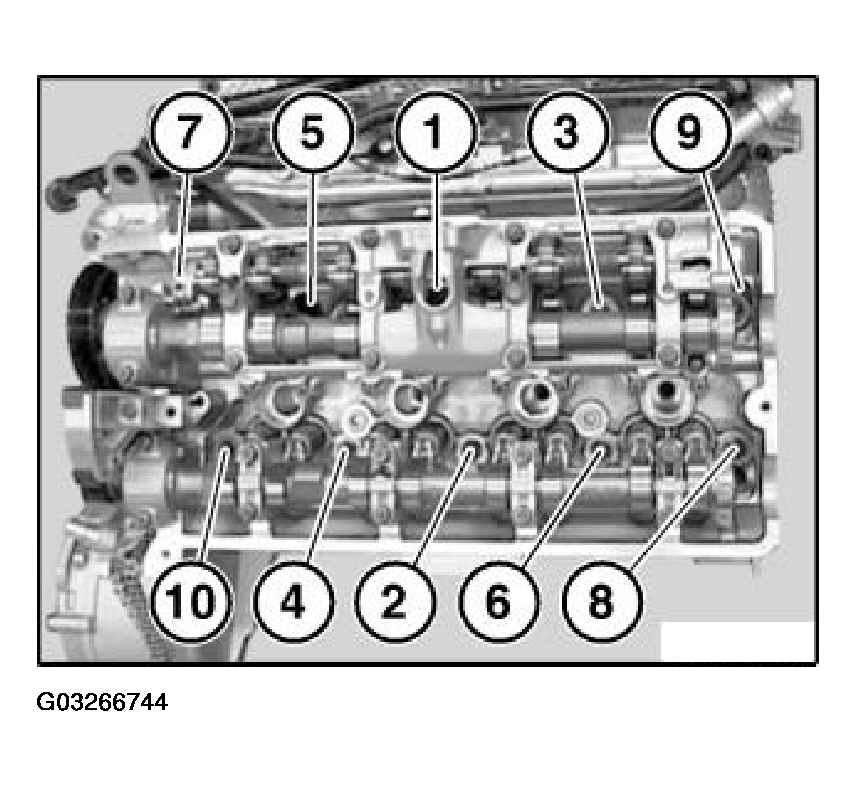

Fig 8: Tightening Cylinder-Head Bolts
G03266744Courtesy of BMW OF NORTH AMERICA, INC.

Insert and tighten down screws between cylinder head and timing case cover.

Fig 9: Tightening Screws Between Cylinder Head And Timing Case Cover
G03266745Courtesy of BMW OF NORTH AMERICA, INC.

Insert and tighten down guide rail screw.

Fig 10: Tightening Guide Rail Screw
G03266746Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Illustration with engine removed.

Install eccentric shaft sensor (2).

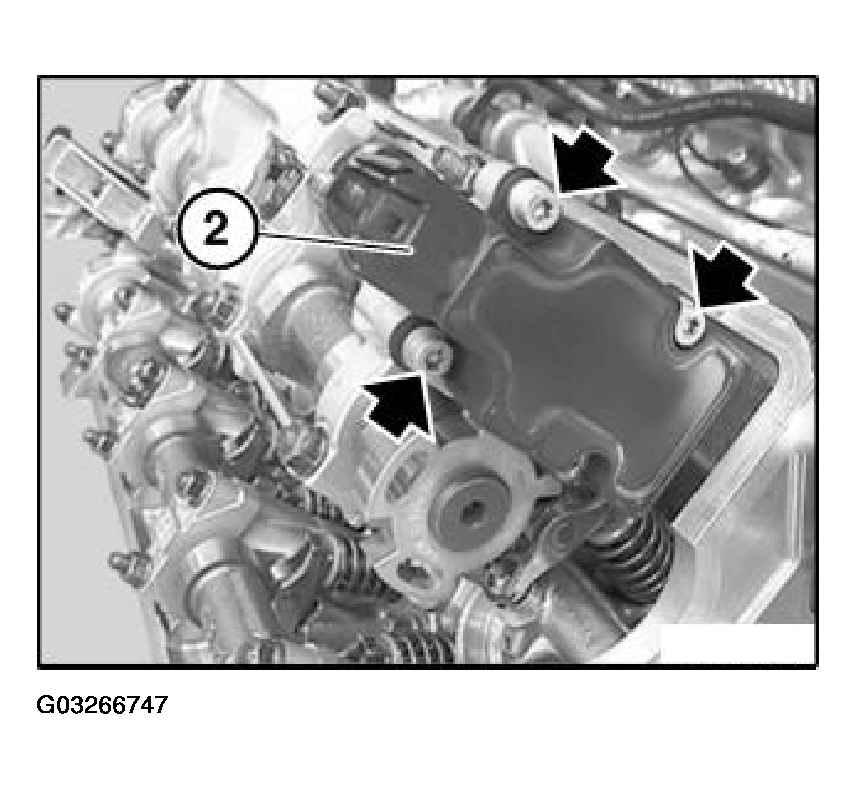

Fig 11: Installing Eccentric Shaft Sensor
G03266747Courtesy of BMW OF NORTH AMERICA, INC.

Install inlet and exhaust adjustment unit on left side.

Assemble engine.
