11 14 080 Removing and installing top left timing case cover (N62)

(Cylinder Bank 5 to 8)

Remove left cylinder head cover .

Remove both solenoid valves on left side.

Release alternator (air-cooled). See GENERATORS & REGULATORS .

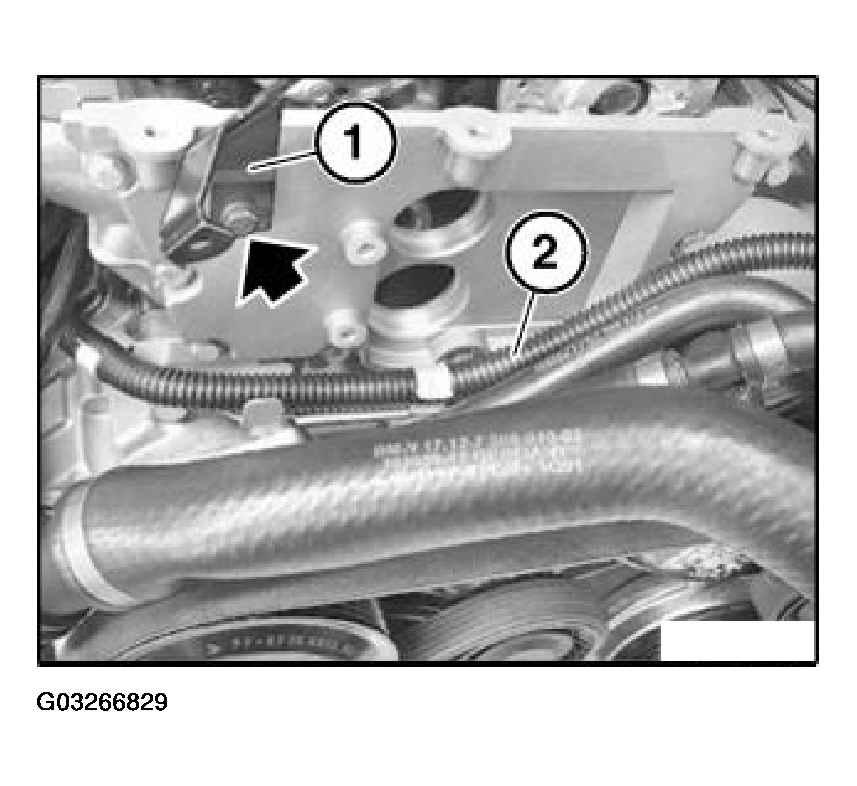

Release screw, remove holder (1).

Remove line (2) from holder.

Fig 1: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

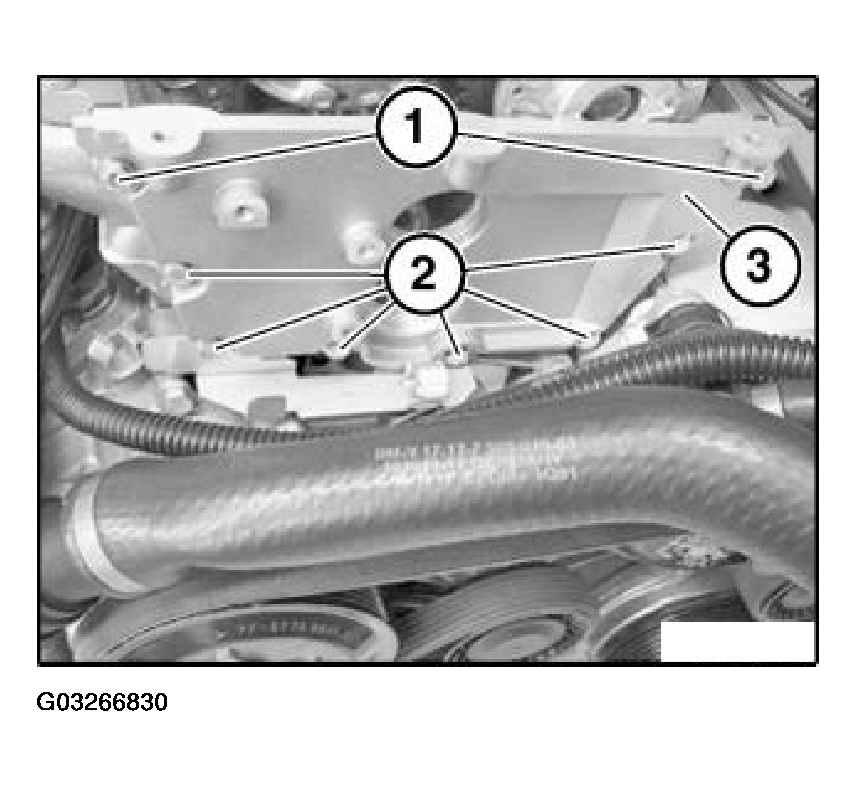

Release screws (1 and 2).

Remove timing case cover (3).

Fig 2: Removing Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

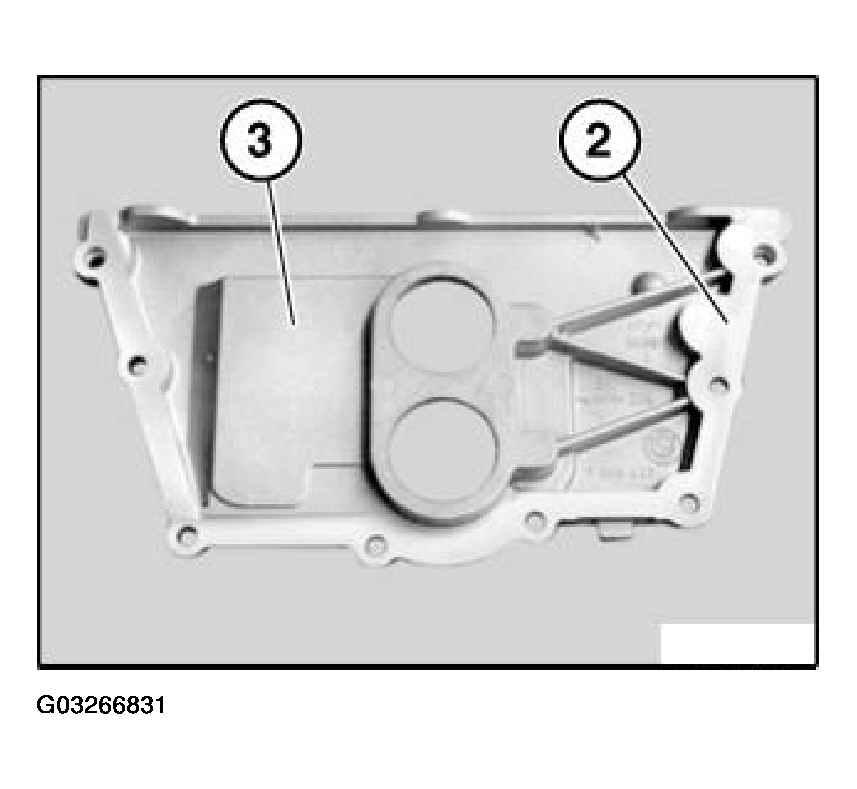

1. Free sealing face (2) on timing case cover (3) of seal debris and clean.
   Fig 3: Installing Free Sealing Face On Timing Case Cover

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

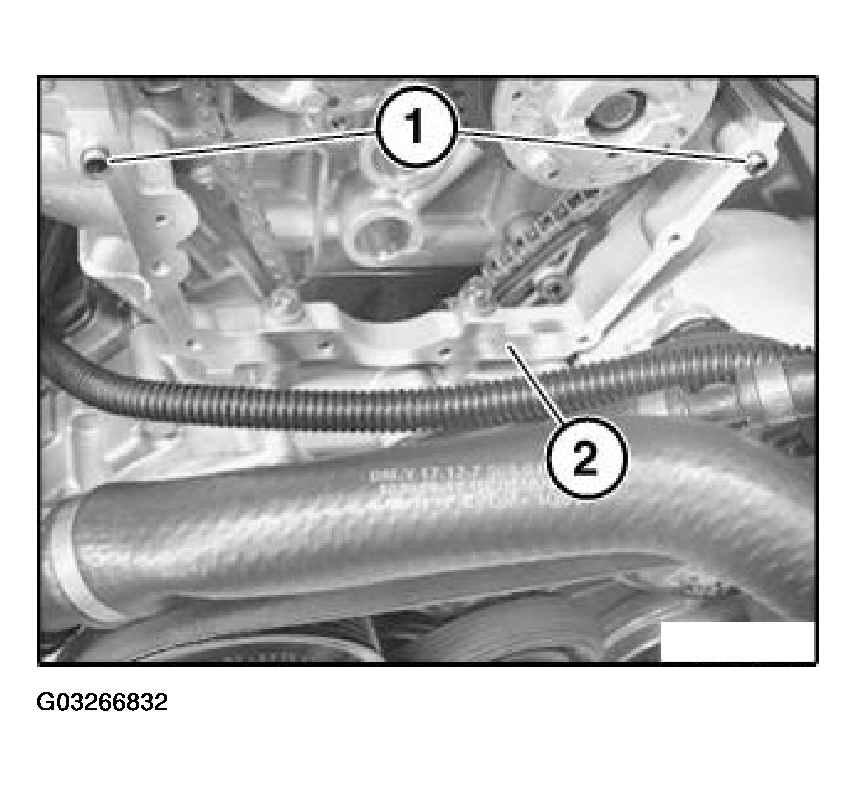

1. Check adapter sleeves (1) for damage and correct installation position; replace if necessary.
2. Free sealing face (2) of seal debris and clean.
   Fig 4: Checking Adapter Sleeves For Damage

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

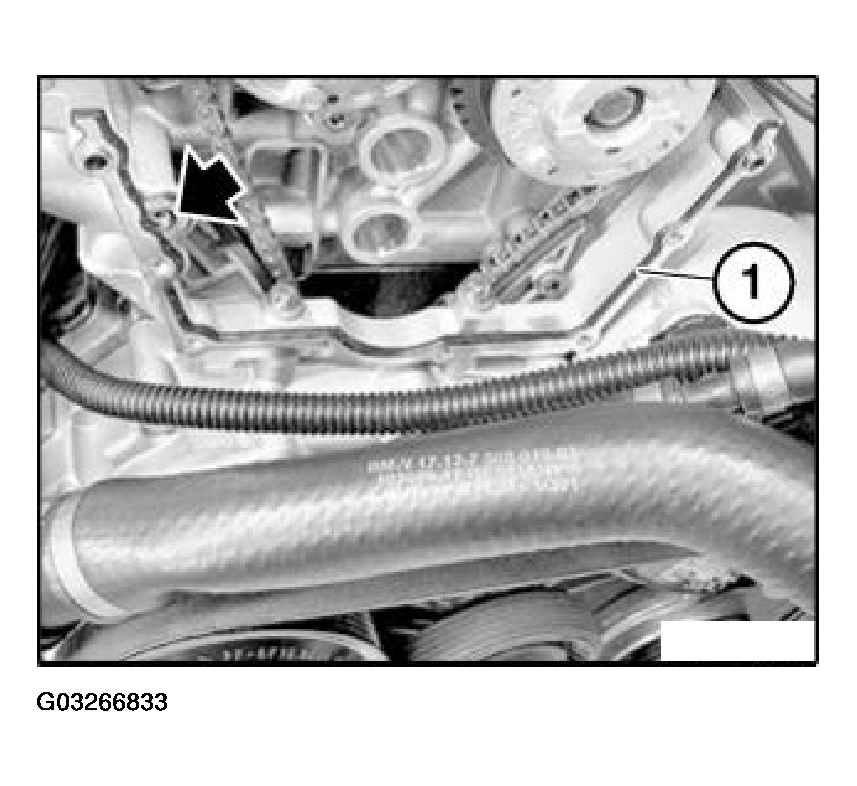

Replace gasket (1) and check for correct installation position.

Fig 5: Replacing Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
