51 45 030 Removing And Installing Instrument Panel Trim
Disconnect battery negative lead. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove both panels for front roof pillar. Refer to 51 43 201 REMOVING AND INSTALLING/REPLACING PANEL FOR ROOF PILLAR AT FRONT (A-PILLAR), LEFT OR RIGHT .
Remove light switch unit. Refer to 61 31 033 REMOVING AND INSTALLING LIGHT SWITCH UNIT .
Remove complete instrument carrier. Refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER .
Remove fixture for steering column switch. Refer to 61 31 005 REMOVING AND INSTALLING/REPLACING FIXTURE FOR STEERING COLUMN STALK .
Remove center fresh air grill. Refer to 64 22 161 REMOVING AND INSTALLING/REPLACING FRESH-AIR GRILL CENTER .
Remove radio receiver. Refer to 65 11 030 REMOVING AND INSTALLING / REPLACING RADIO RECEIVER or 65 52 010 REMOVING AND INSTALLING ON-BOARD MONITOR .
Remove AIRBAG module on passenger side. Refer to PASSENGER-SIDE AIR BAG MODULE .
Remove center console. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .
Remove lower left trim from instrument panel. Refer to 51 45 180 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT .
Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .
Remove all clipped finishers (decorative strips on panel for instrument panel). Refer to 51 16 221 REPLACING A CLIPPED FINISHER (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .

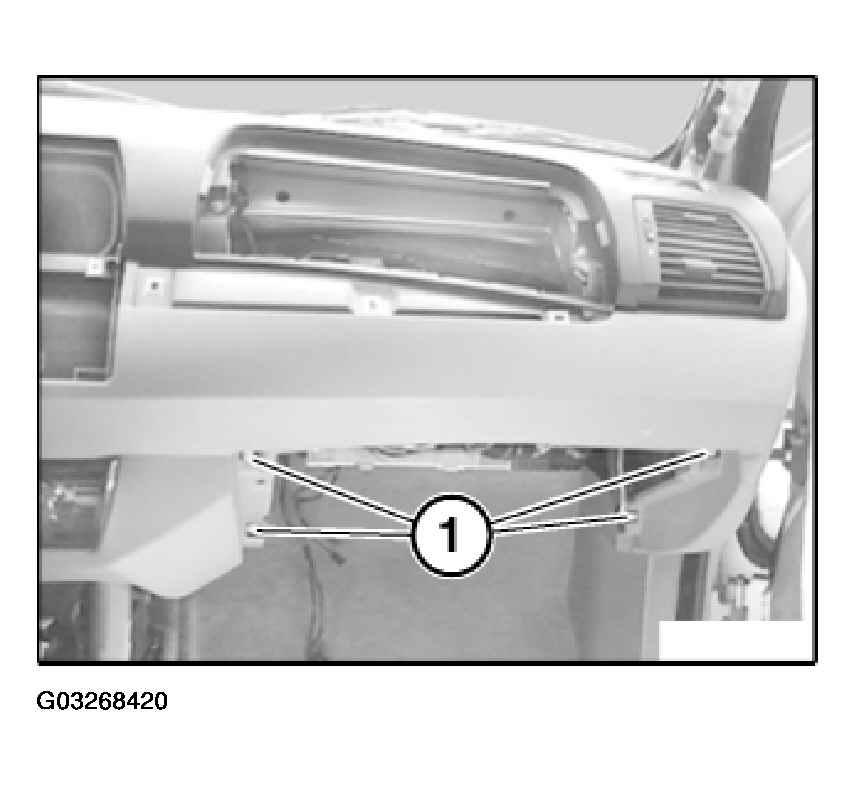

Release screws (1).
Disconnect plug connection for speaker.

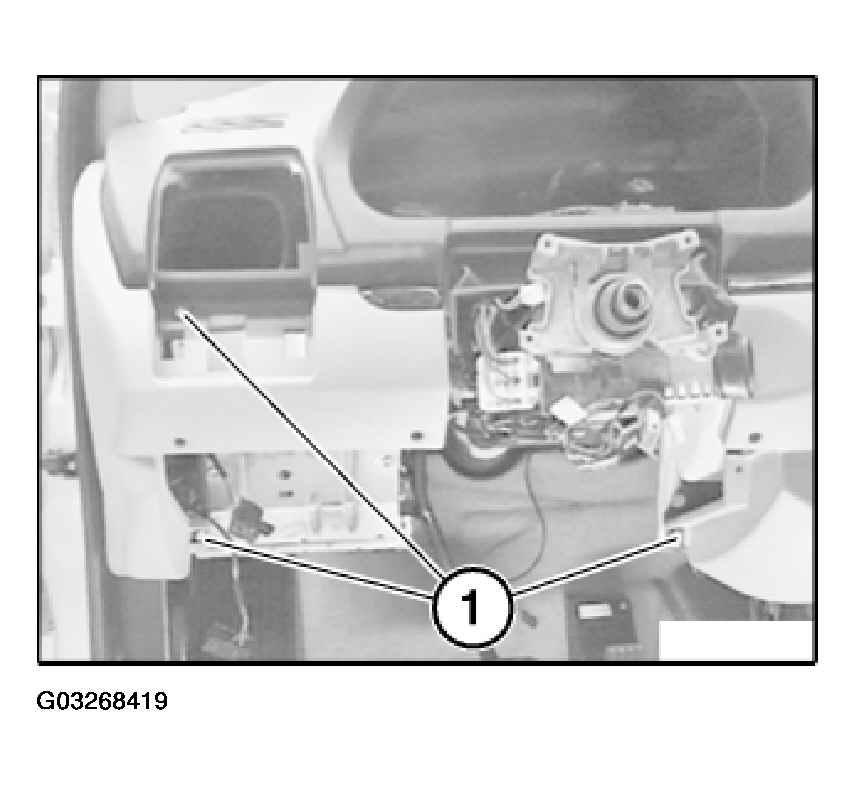

Release screws (1).
Disconnect plug connection for speaker.
Installation:

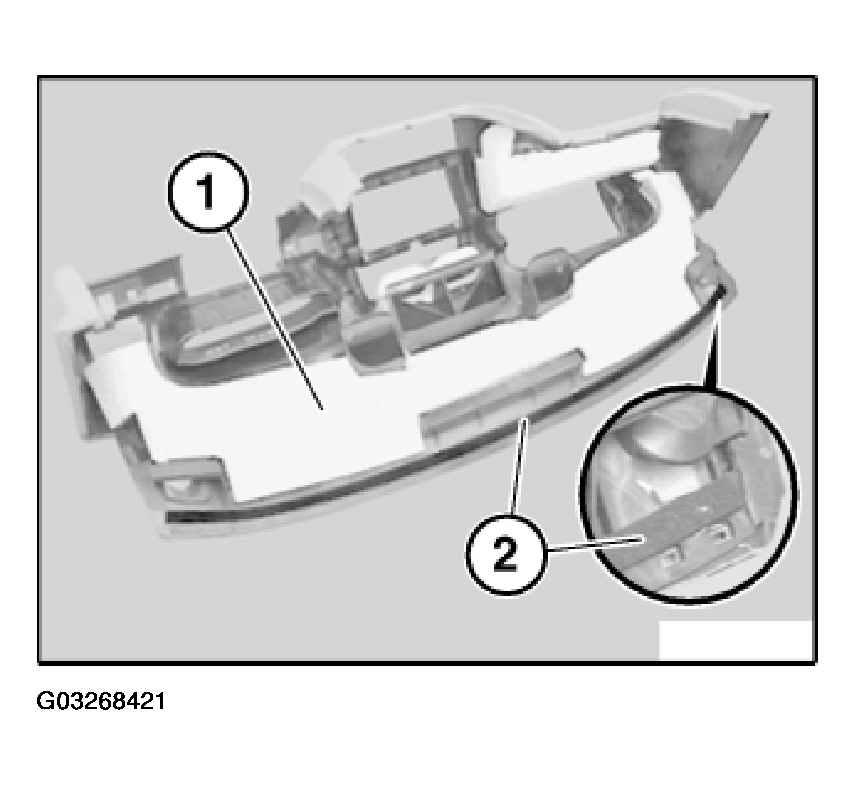

- Anti-drumming lining (1) must be correctly stuck on.
- Foam strip (2) must be correctly stuck on.
Installation:

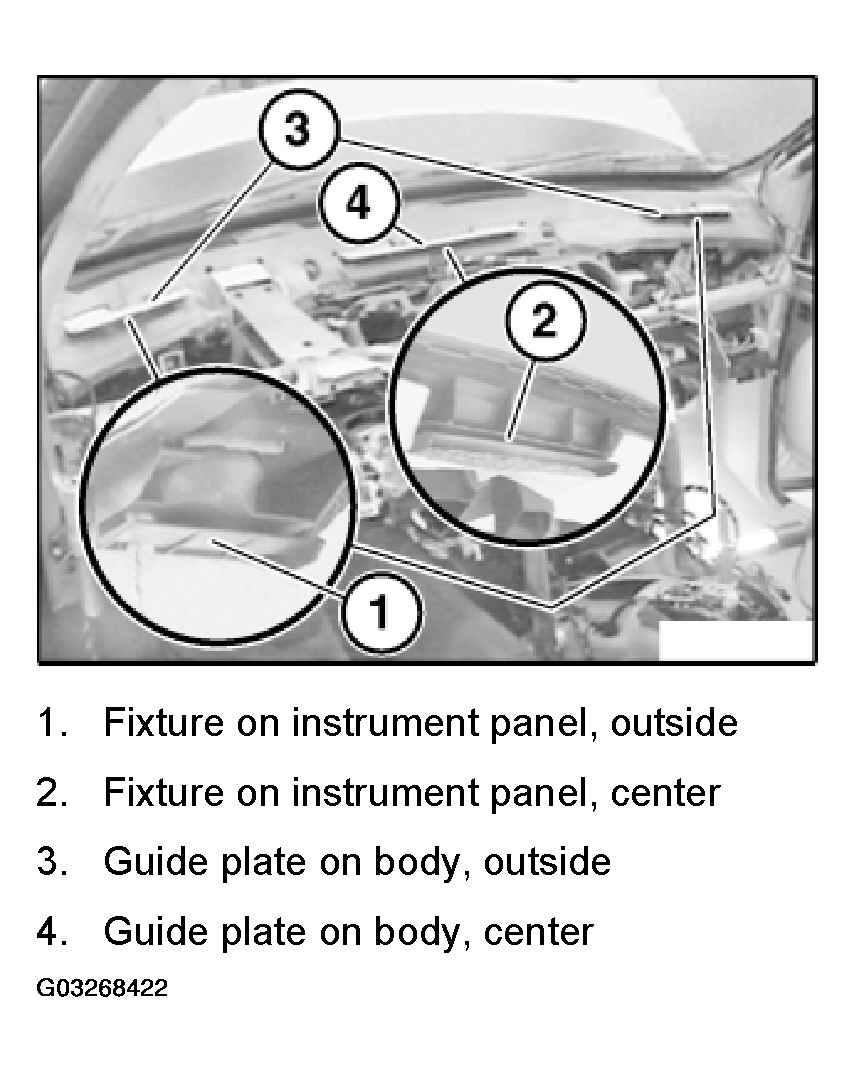

- Push fixtures (1) and (2) onto guide plates (3) and (4).
