65 52 010 Removing and installing on-board monitor

Detach felt strips (1) in lower area and fold upwards.

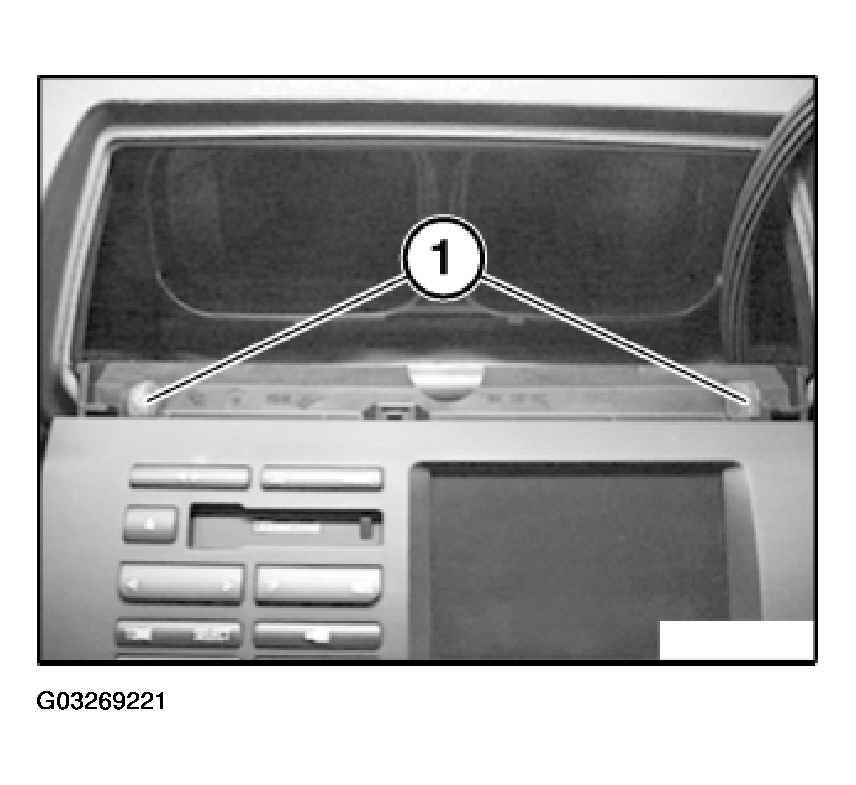

Fig 1: Locating Felt Strips In Lower Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Detach rotary knob (2).

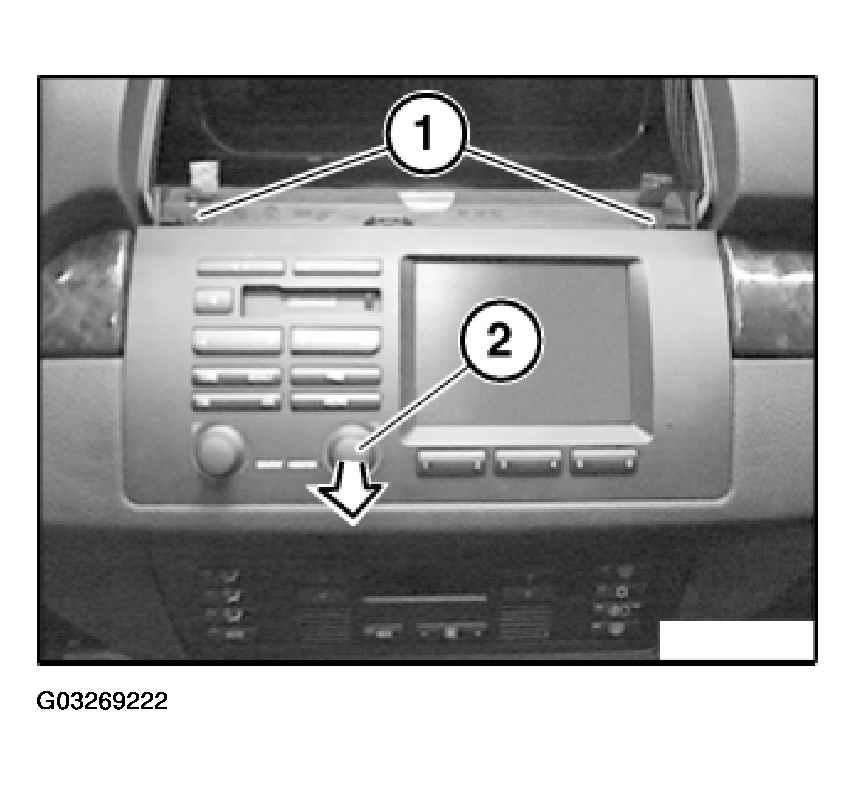

Fig 2: Identifying Rotary Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Insert suitable screwdriver in aperture.

Turn screwdriver approx. 45° in direction of arrow and unlock on-board monitor.

Withdraw on-board monitor (1) and disconnect plug connections.

Installation:

On-board monitor (1) must snap securely into place in lower lock.

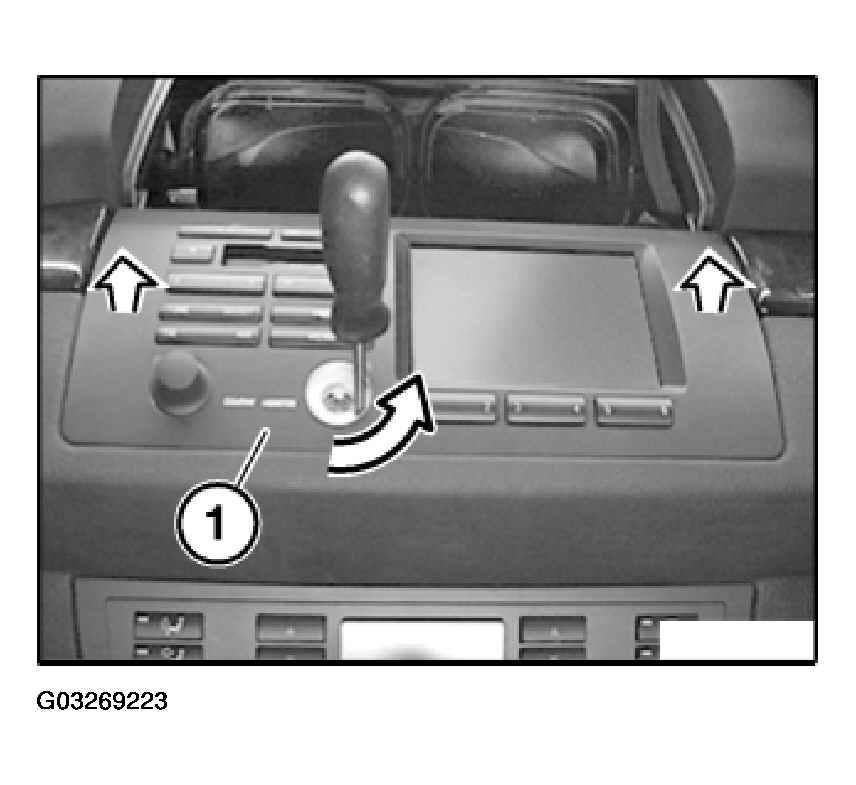

Fig 3: Unlocking On-Board Monitor Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
