62 21 000 Removing and installing complete instrument carrier

NOTE: Extend steering column completely and set in downward position.

Loosen screws (1).

Fold down instrument carrier (2) and remove.

Disconnect plug connections and remove instrument carrier (2).

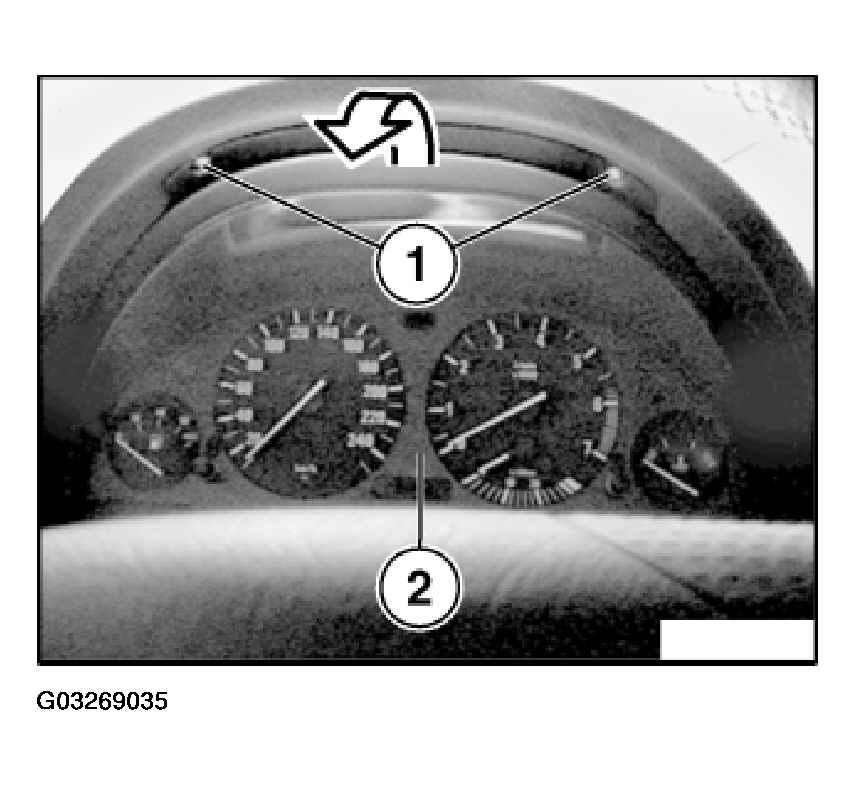

Fig 1: Removing Instrument Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
