51 11 001 Replacing front bumper

Remove complete front bumper. Refer to 51 11 000 Removing and installing complete front bumper .

Replacing center section of front bumper (support beam):

Remove both front trim rings (1). Refer to 51 13 050 Removing and installing/replacing left or right front trim ring .

Detach expansion rivet (2) from bumper carrier (3).

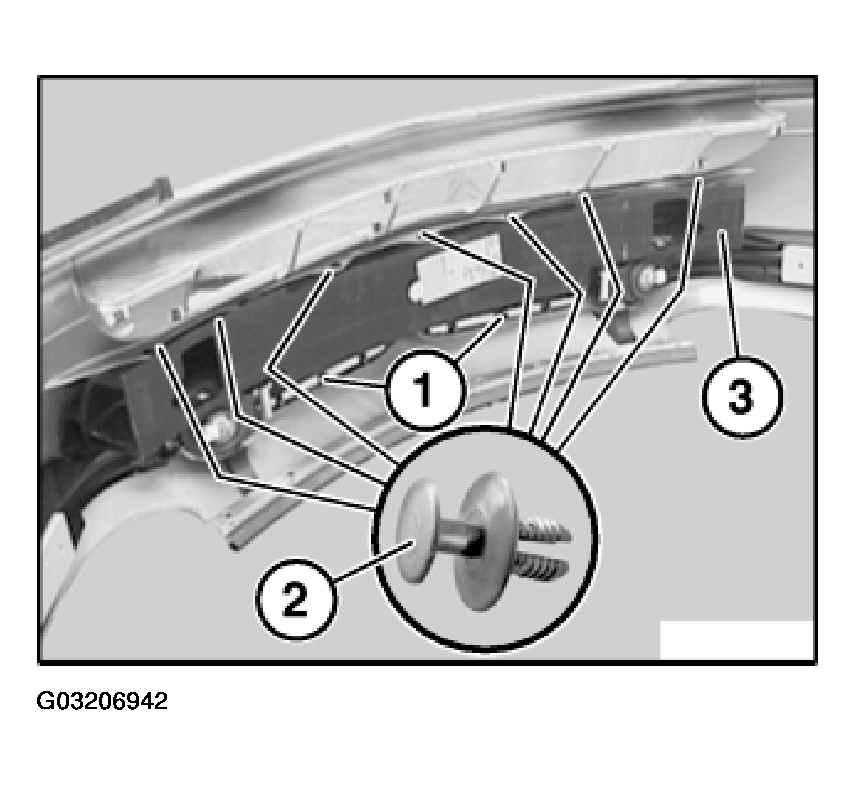

Fig 1: Detaching Expansion Rivet From Bumper Carrier
G03206942Courtesy of BMW OF NORTH AMERICA, INC.

Detach expansion rivet (1) and remove bumper carrier towards rear from bumper (2).

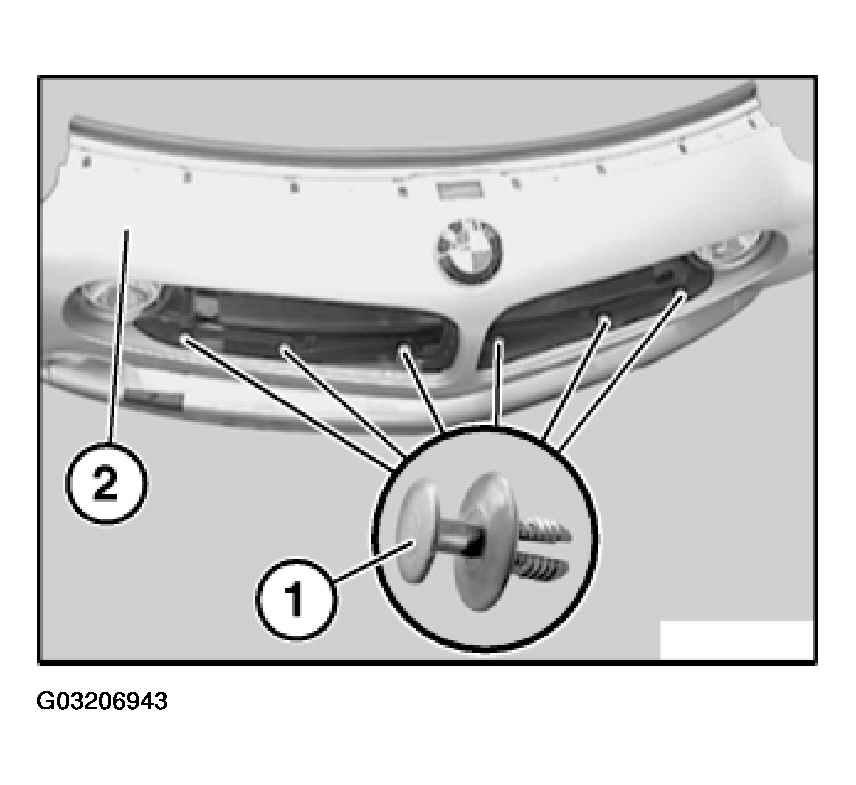

Fig 2: Removing Bumper Carrier
G03206943Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The following work step ends here "Replacing center section of bumper (support member) at front".

Replacing front bumper (bumper trim):

Remove high-beam headlights. Refer to 63 12 170 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT HIGH-BEAM HEADLIGHT .

Remove metal nuts (1) and (2) on left/right.

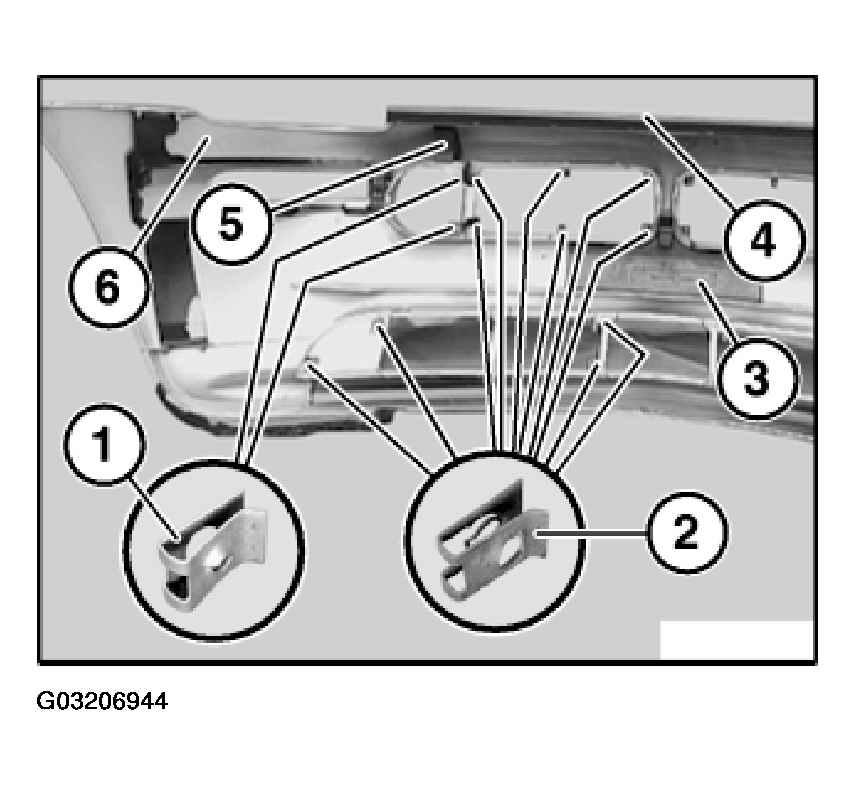

Fig 3: Removing Metal Nuts
G03206944Courtesy of BMW OF NORTH AMERICA, INC.

Remove insert (3).

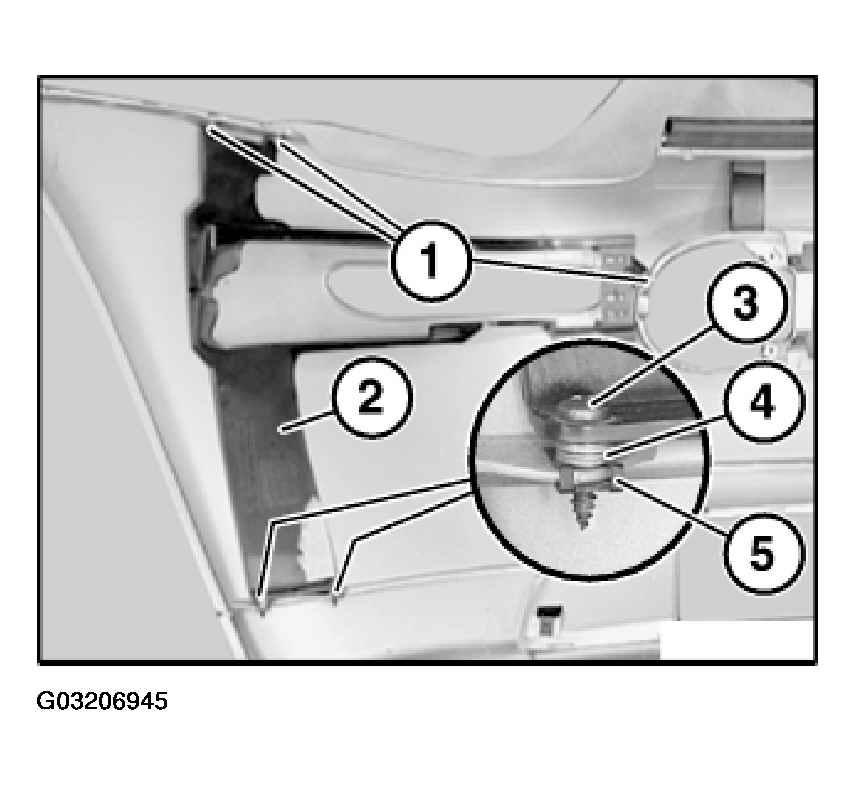

Fig 4: Removing Washers And Metal Nuts
G03206945Courtesy of BMW OF NORTH AMERICA, INC.

Detach bucket (4) from bumper (6).

Release rivet (1).

Release screws (3).

Remove washers (4) and metal nuts (5) and remove insert (2).

Installation:

Make a note of number of washers (4).
