51 13 050 Removing and installing/replacing left or right front trim ring

Remove left or right front radiator grill. Refer to 51 13 040 Removing and installing/replacing left or right front radiator grill .

Release screws (1) and remove front grill (2).

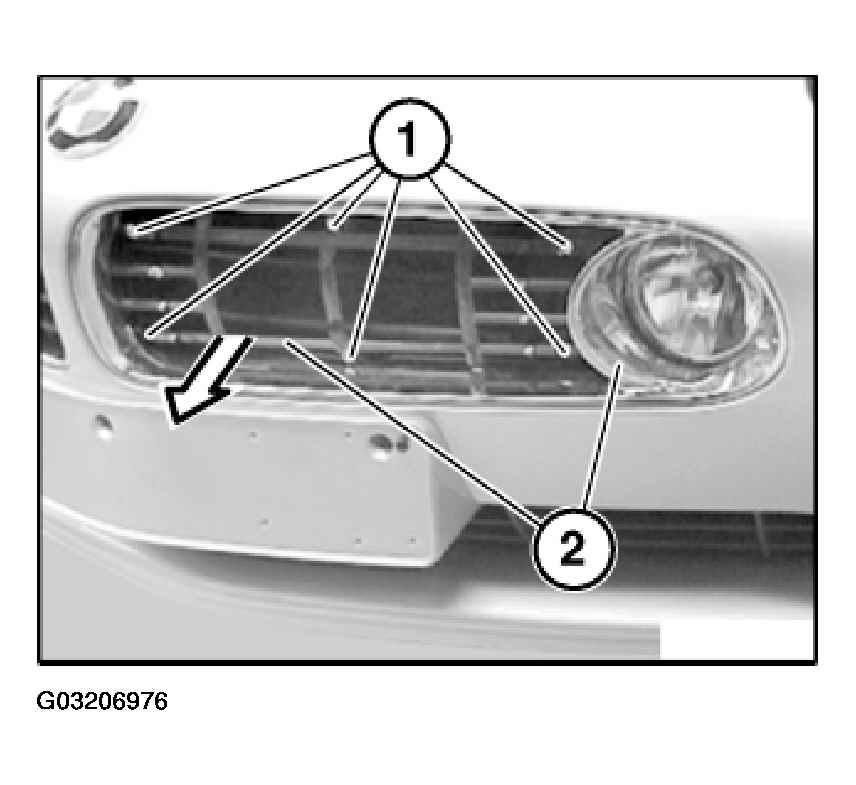

Fig 1: Removing Front Grill
G03206976Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) must be correctly seated.

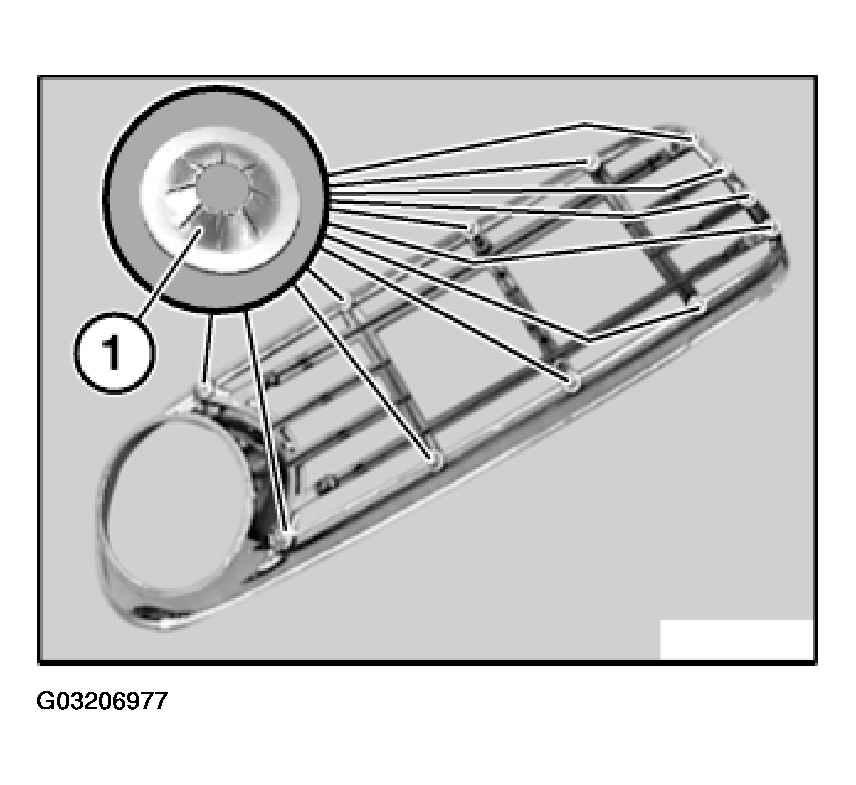

Fig 2: Installing Retainers
G03206977Courtesy of BMW OF NORTH AMERICA, INC.
