63 17 061 Replacing Left Or Right Fog Lamp

Necessary preliminary tasks:

• Remove fog lamp, refer to 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LAMP (UP TO 10/2003)

Up to 10/2002:

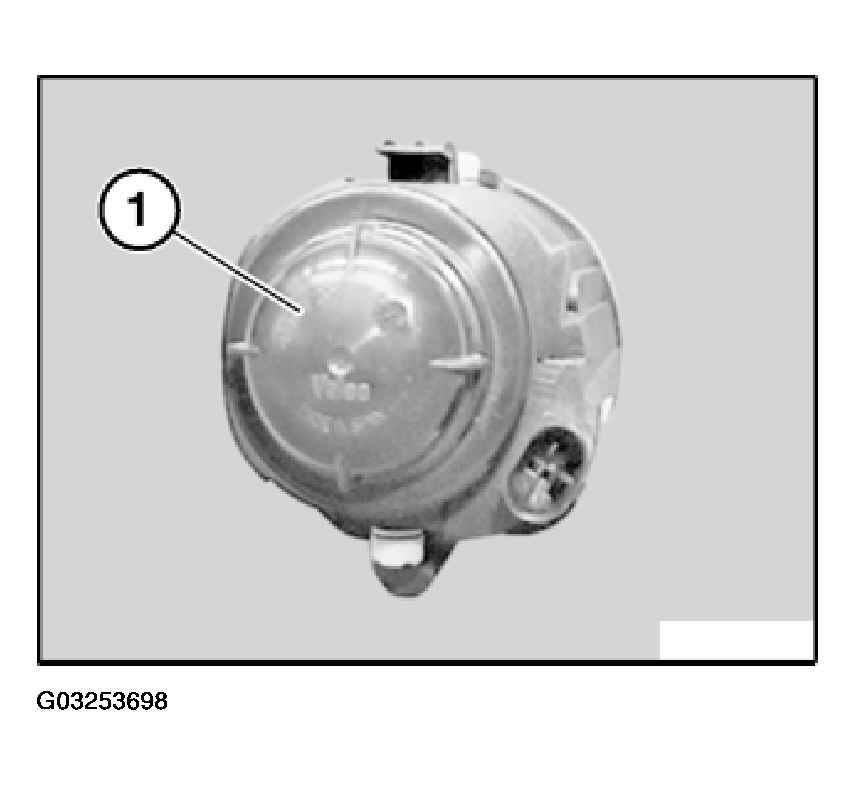

Turn cover (1) counterclockwise through approx. 45° and remove.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

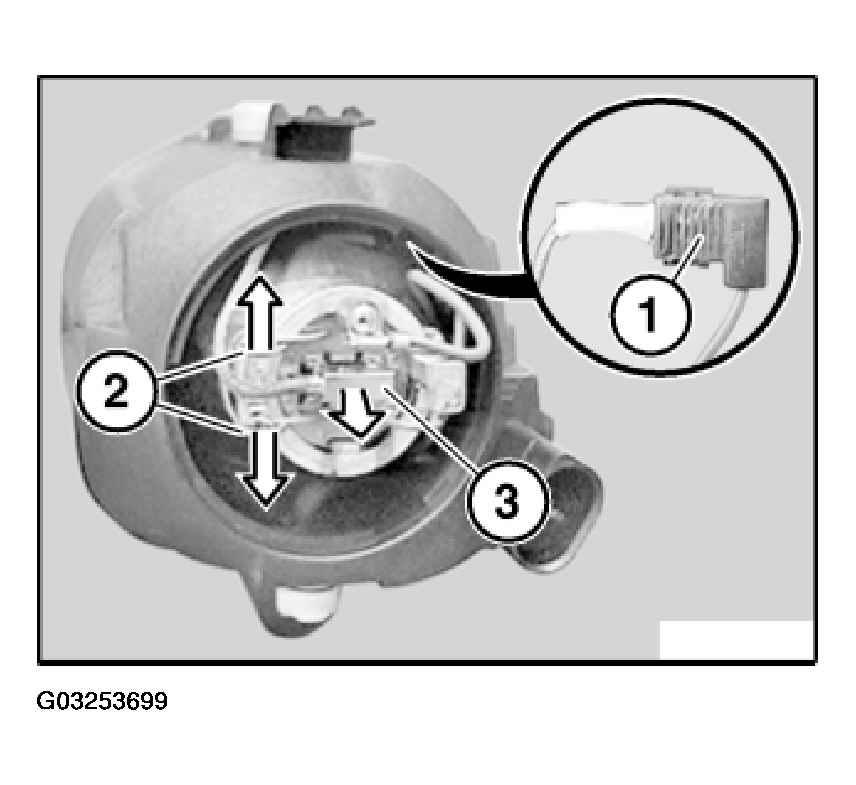

Pull plug connection (1) out of housing and disconnect.

Fig 2: Removing Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Press retainers (2) in direction of arrow and remove bulb (3).

From 10/2002:

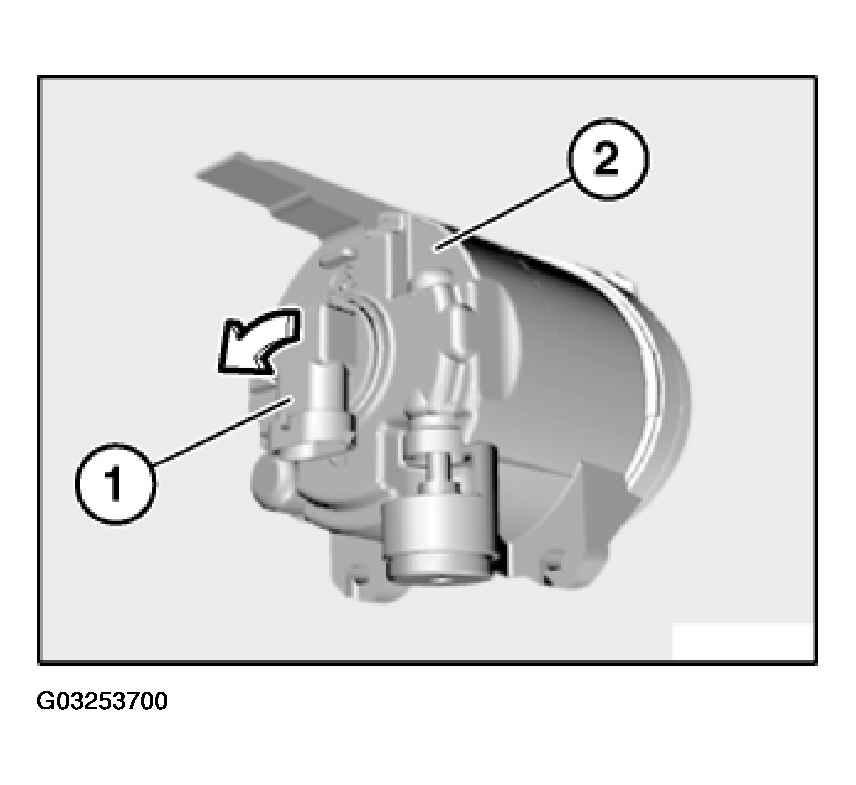

Turn bulb holder (1) in direction of arrow and remove from fog lamp (2).

Fig 3: Removing Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

• Note bulb type, refer to 63 17 FRONT FOG LAMPS, ADDITIONAL LAMPS E53
• Adjust fog lamps, refer to 63 10 014 ADJUSTING FOG LAMPS
