63 17 060 Removing And Installing Left Or Right Fog Lamp (Up To 10/2003)

Detach trim (1).

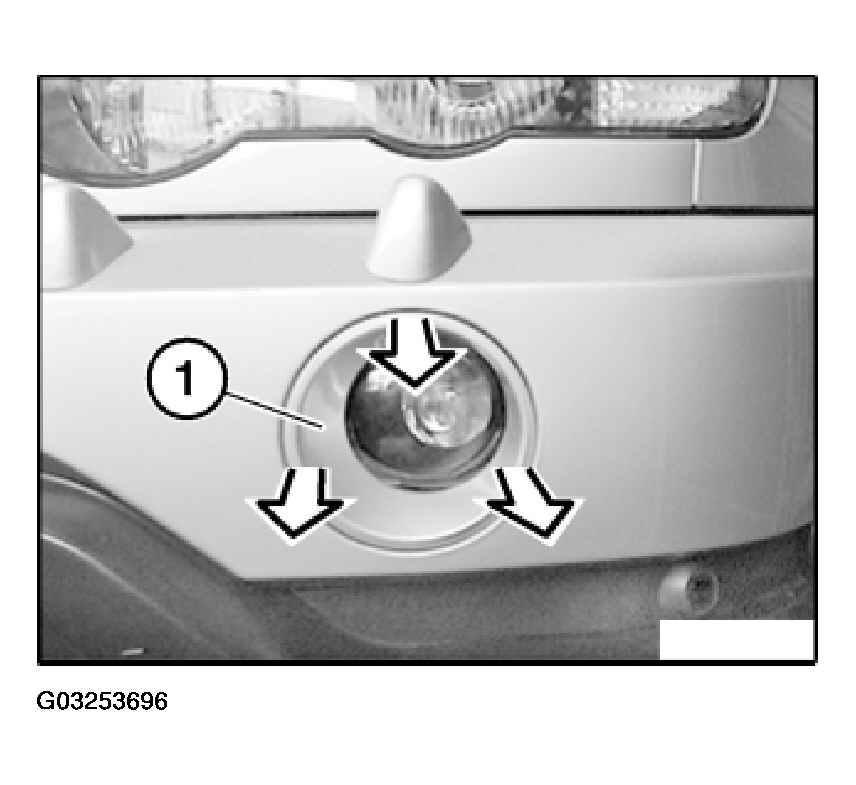

Fig 1: Detaching Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

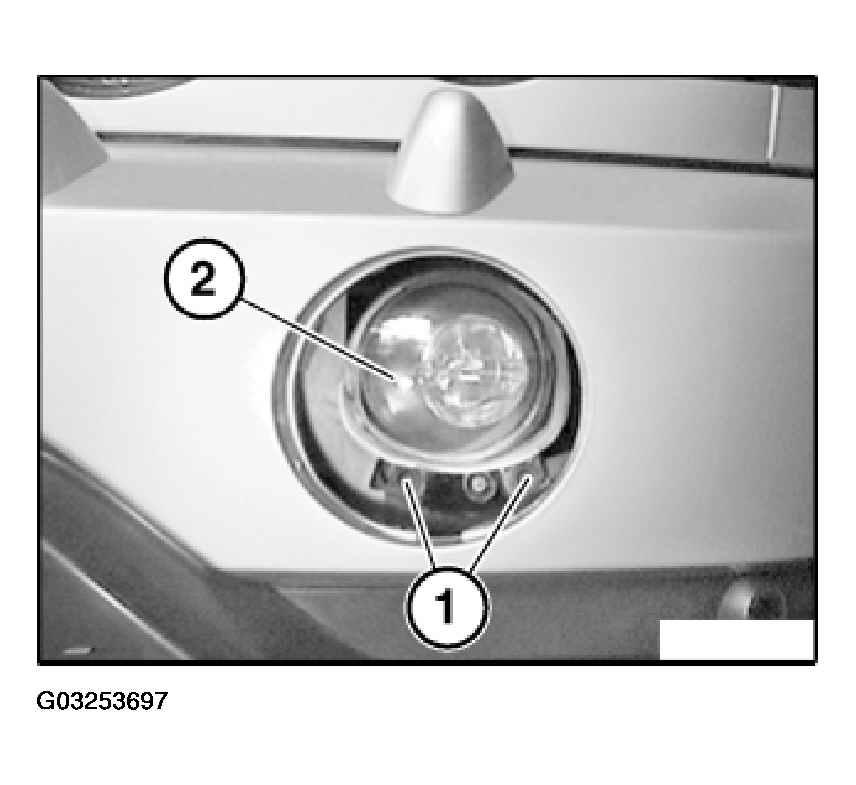

Fig 2: Removing Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out fog lamp (2), unlock and disconnect plug connection.

Set fog lamp (2) down.

Installation:

Feed upper guide of fog lamp (2) correctly into associated fixture.
