63 10 014 Adjusting Fog Lamps

Necessary preliminary tasks:

• Remove trim. Refer to 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LAMP (FROM 10/2003)  or 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LAMP (UP TO 10/2003)  .
• Observe test preconditions for adjusting headlights

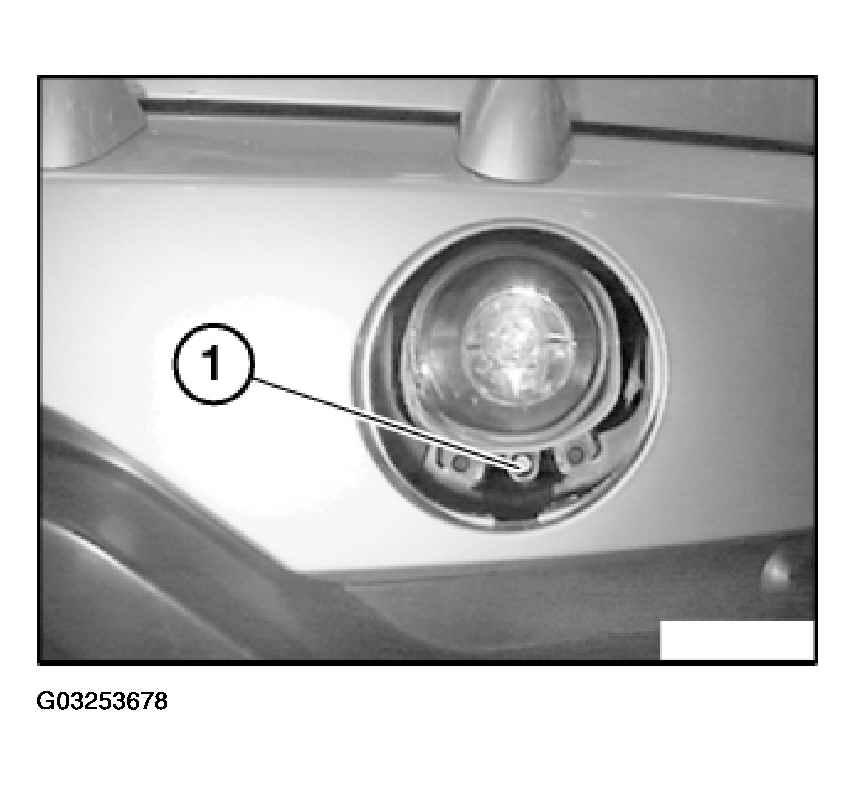

Up to 10/2003:

Carry out height adjustment of fog lamp at adjusting screw (1).

Fig 1: Locating Adjustment Screw

Courtesy of BMW OF NORTH AMERICA, INC.

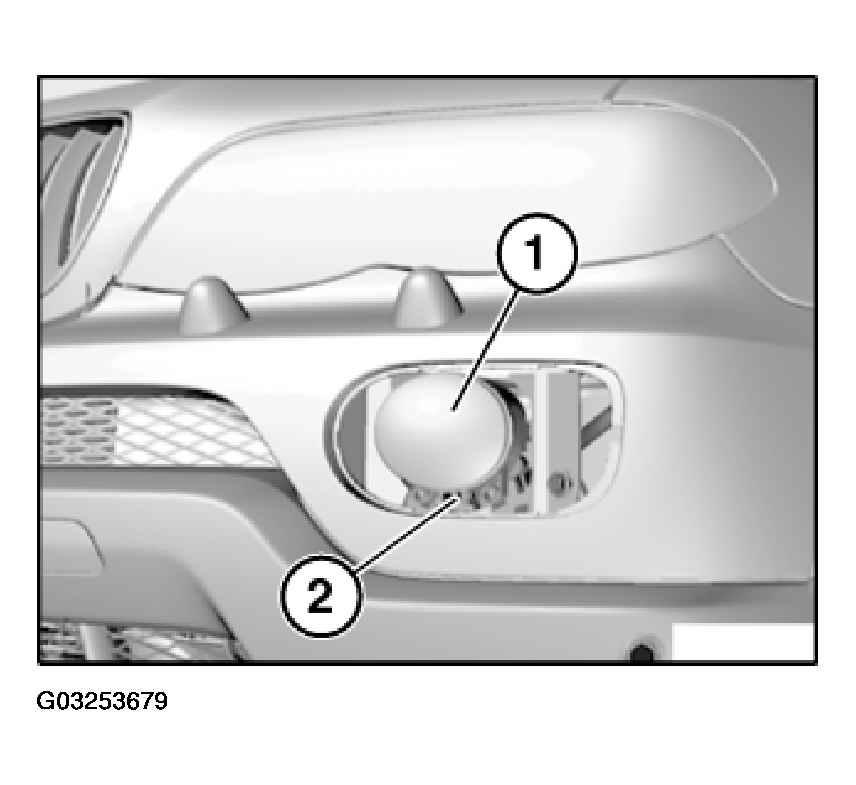

From 10/2003:

Carry out height adjustment of fog lamp (1) at adjusting screw (2).

Fig 2: Locating Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.
