52 13 060 Removing And Installing / Replacing Valve Housing For Left Or Right Lumbar Support, Front (Normal / Manual)

Carry out following tasks beforehand:

• Remove rear panel on front seat backrest. Refer to 52 13 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL)  , 52 17 200 REMOVING AND INSTALLING/REPLACING TOP REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)  or 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)  .

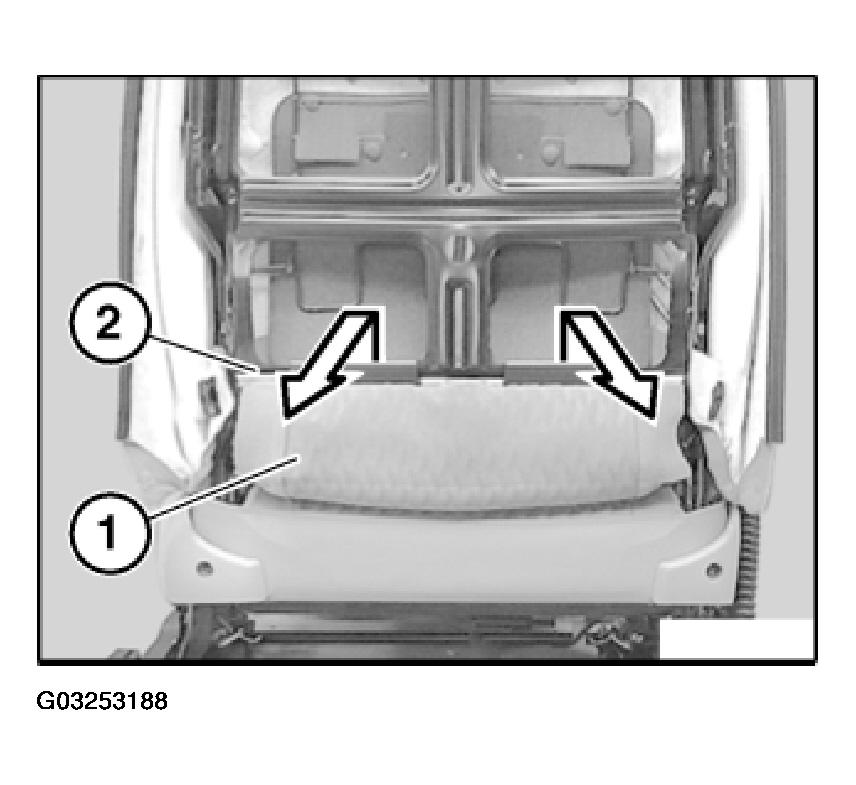

Detach backrest cover (1) from backrest frame (2).

Version with lumbar support and backrest width adjustment only:

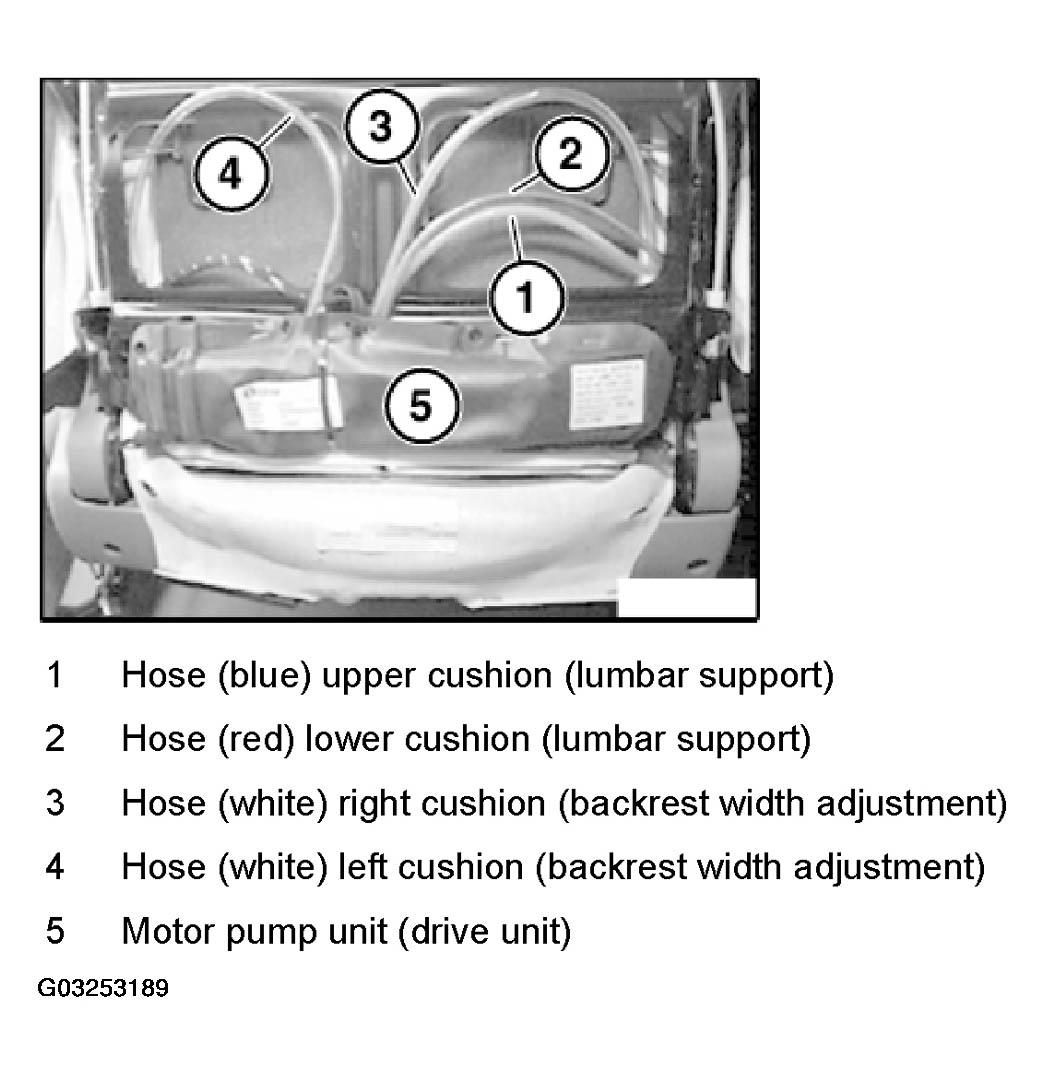

Detach hoses (1) and (2) at cutting line (heat with hot air blower if necessary).

1. Hose (blue) upper cushion (lumbar support)
2. Hose (red) lower cushion (lumbar support)
3. Hose (white) right cushion (backrest width adjustment)
4. Hose (white) left cushion (backrest width adjustment)
5. Motor pump unit (drive unit)

   Remove drive unit. Refer to 67 66 010 REMOVING AND INSTALLING/REPLACING LUMBAR SUPPORT DRIVE MECHANISM ON FRONT SEAT, LEFT OR RIGHT .

   Unfasten plug connection (1).

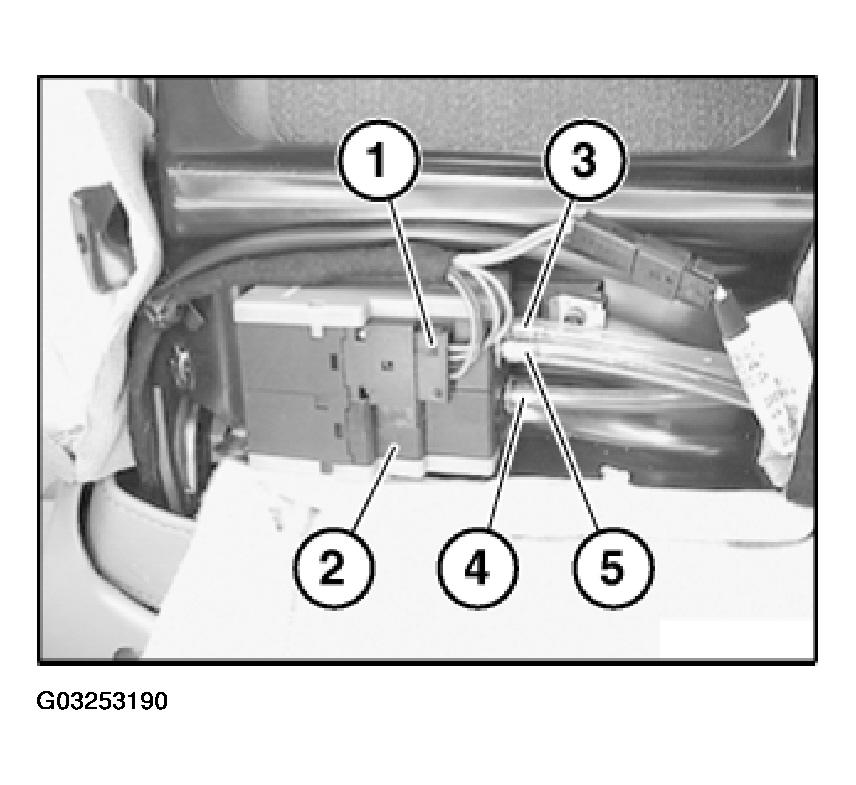

   Fig 3: Disconnecting Hoses From Valve Housing

   Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect hoses (3) ... (5) from valve housing (2).

1. 3 Hose (blue) top cushion
2. 4 Hose (red) bottom cushion
3. 5 Hose (transparent), lumbar support pump (on housing black)

Installation:

Observe cable guide (1) for backrest heating.

Lay air hoses (2) without kinks through hole (3).

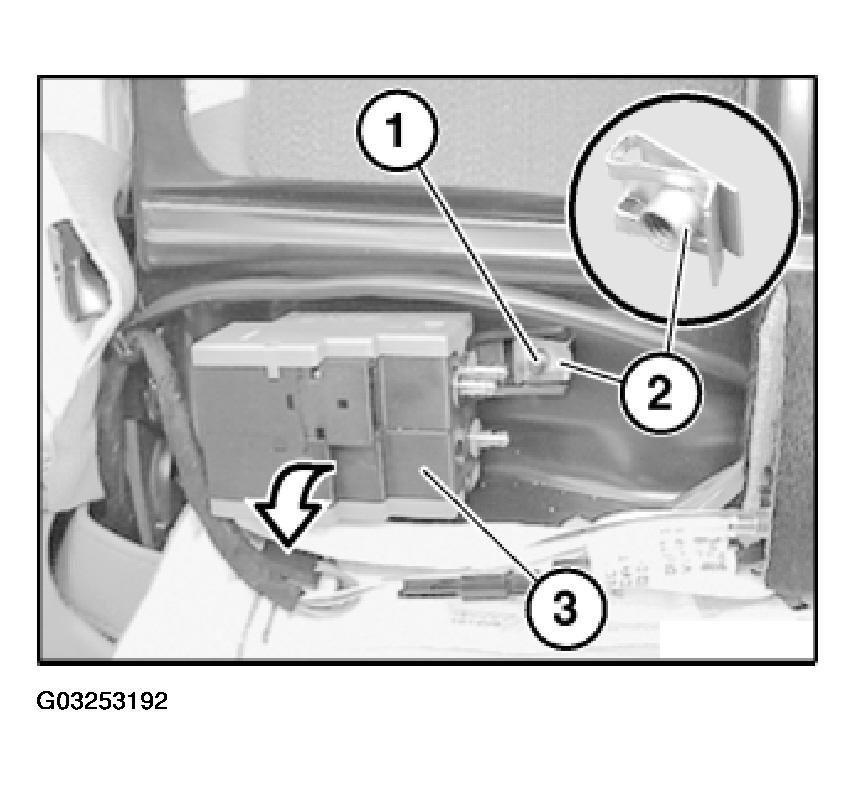

Slacken screw (1) from inside.

Detach valve housing (3) from metal nut (2).

Installation:

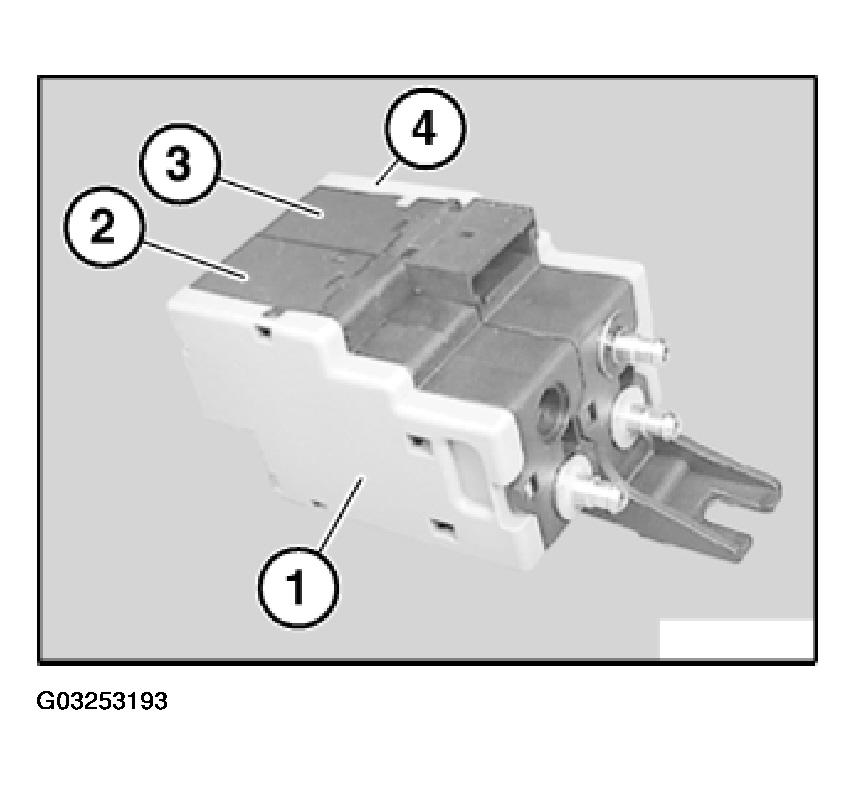

Housing parts (1) ... (4) must not be unclipped (leakage).

If housing is unclipped, clip valve housing together.

Check function.
