52 17 202 Removing And Installing/Replacing Bottom Rear Panel On Front Seat Backrest (Luxury Seat)

WARNING: This page is about a different variant/trim than selected.

Headrest must be moved as far forwards as possible.

Remove clips (1) with side cutting pliers.

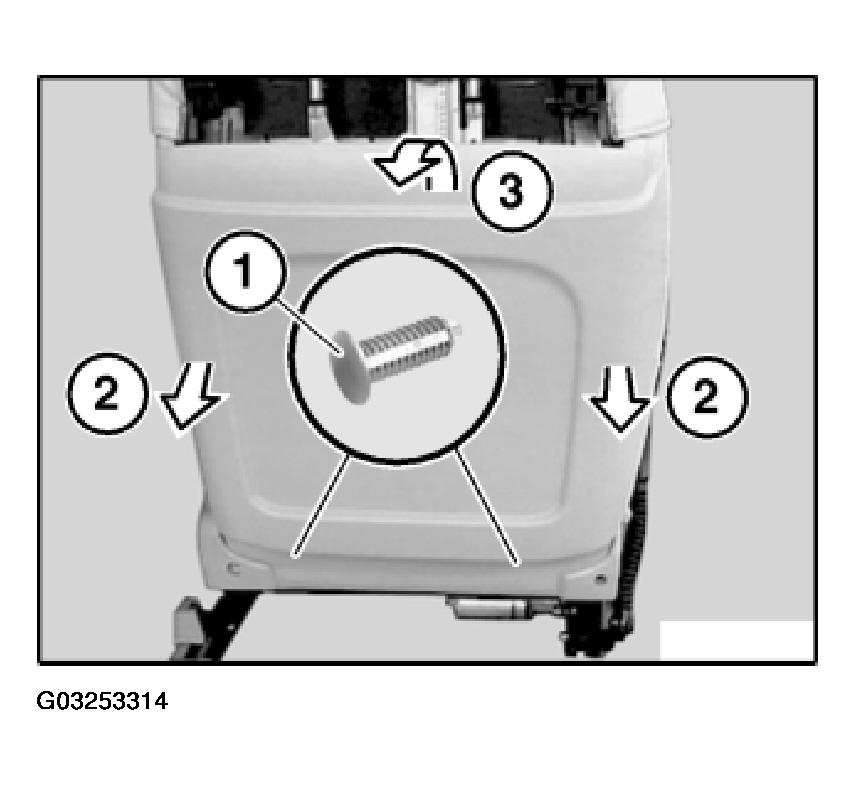

Fig 1: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip rear panel (2) first at side towards rear, then lift out at rear.

Installation:

Clips (1) and springs (2) must be correctly seated in rear panel mounts and must not be bent.

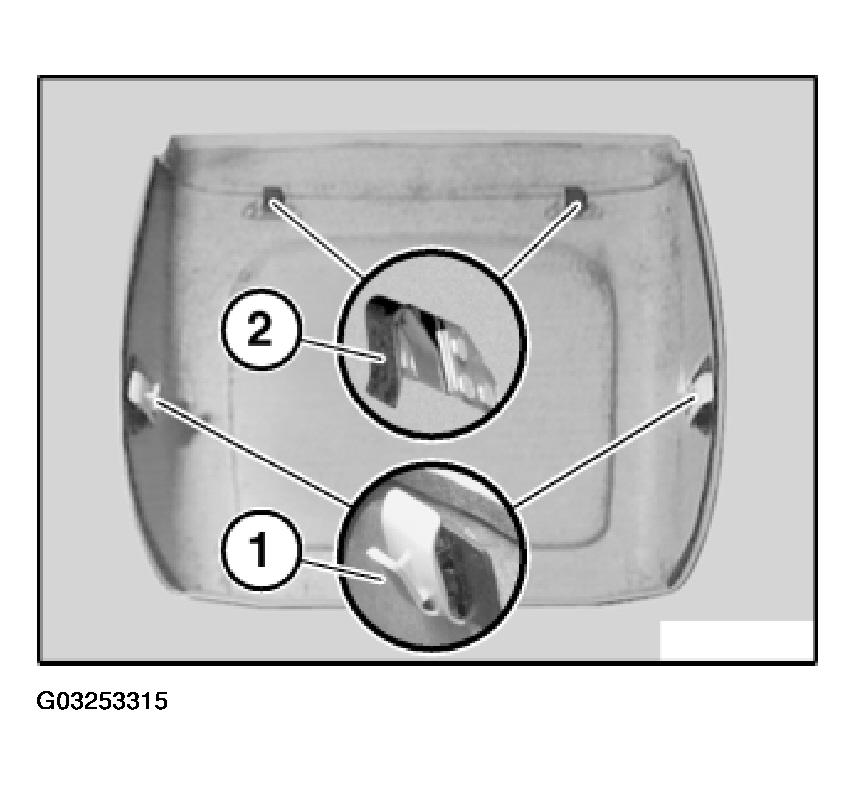

Fig 2: Installing Clips And Springs

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace defective clips/springs.
