52 13 198 Removing And Installing / Replacing Rear Panel On Left Or Right Front Seat Backrest (Normal/Manual)

WARNING: This page is about a different variant/trim than selected.

Remove front seat.

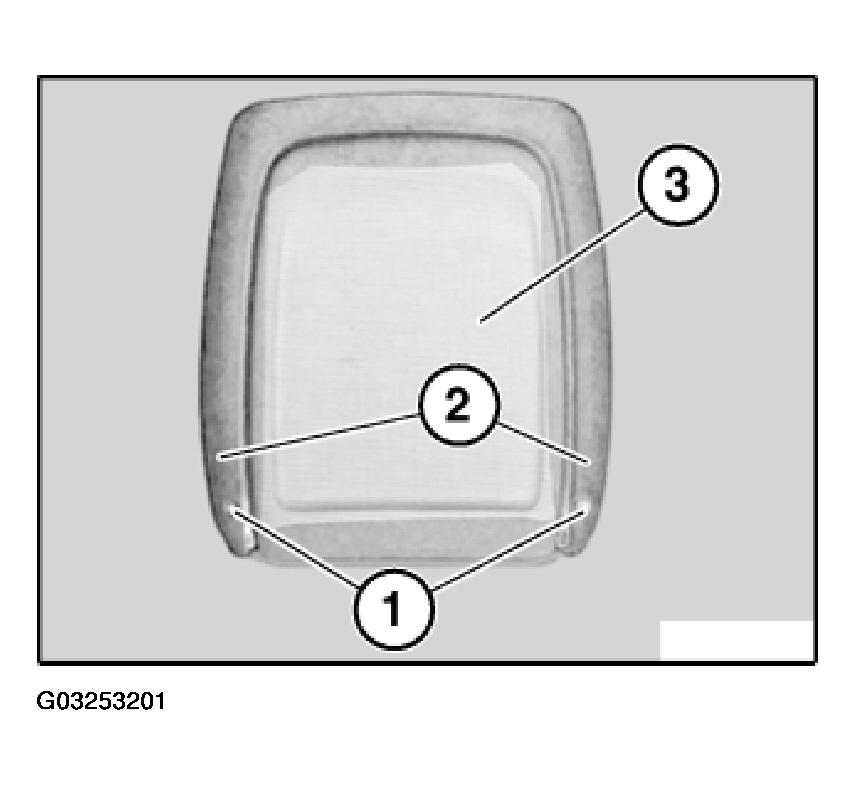

Release clips (1) with side cutting pliers.

Fig 1: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove clip remainders.

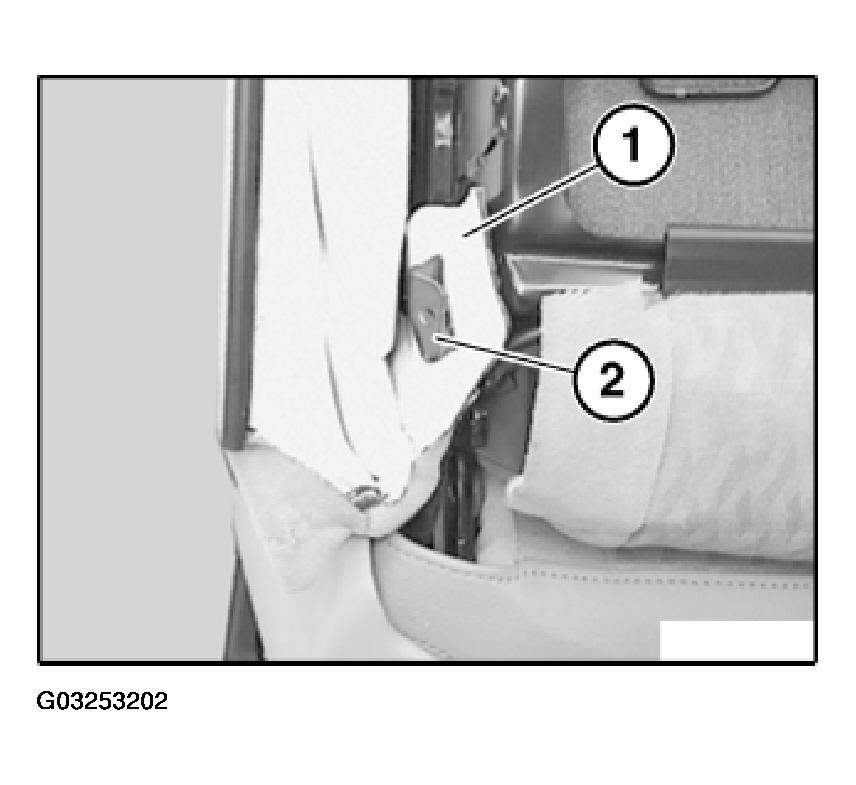

Carefully pull cover (1) with piping (2) out of groove in rear panel (3).

Fig 2: Pulling Cover Out Of Groove In Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

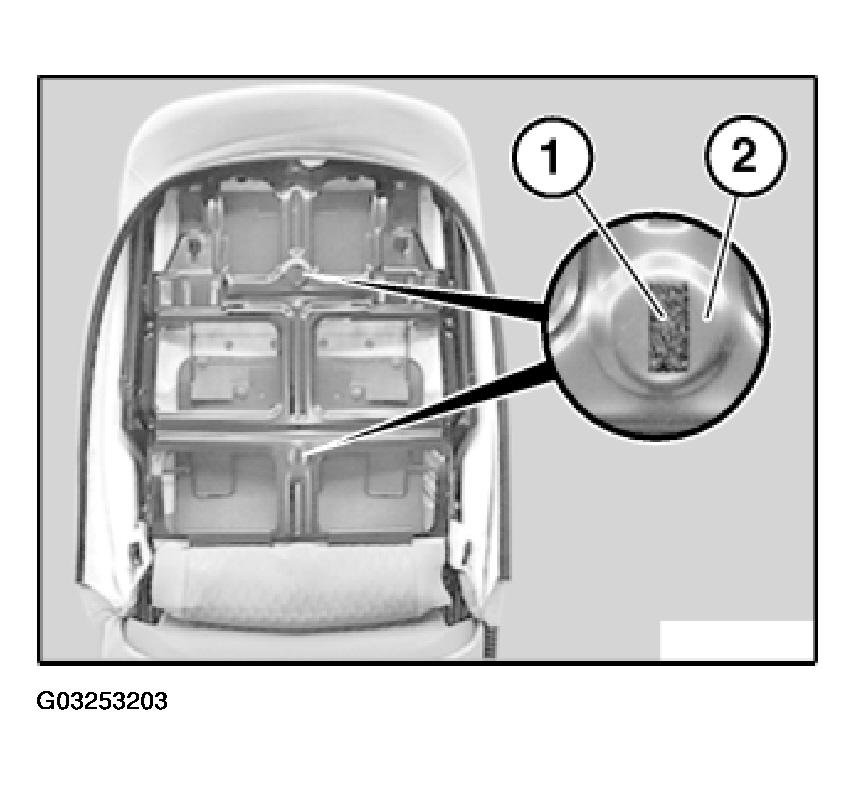

The cover piping (1) has a marking (2) which must line up with hole (3) in rear panel groove (4).

Fig 3: View Of Cover Piping

Courtesy of BMW OF NORTH AMERICA, INC.

From marking (2), press in piping (1) completely to left and right at bottom.

Five new repair clips must be fitted after each disassembly.

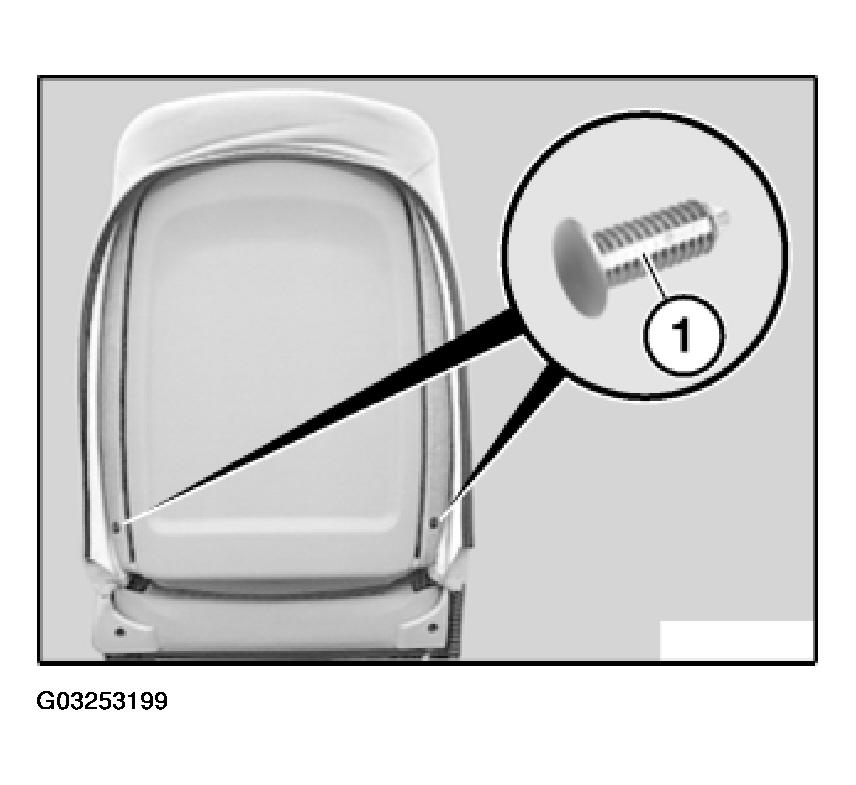

Release clips (1) (cut through with side cutting pliers).

Fig 4: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove clip remainders.

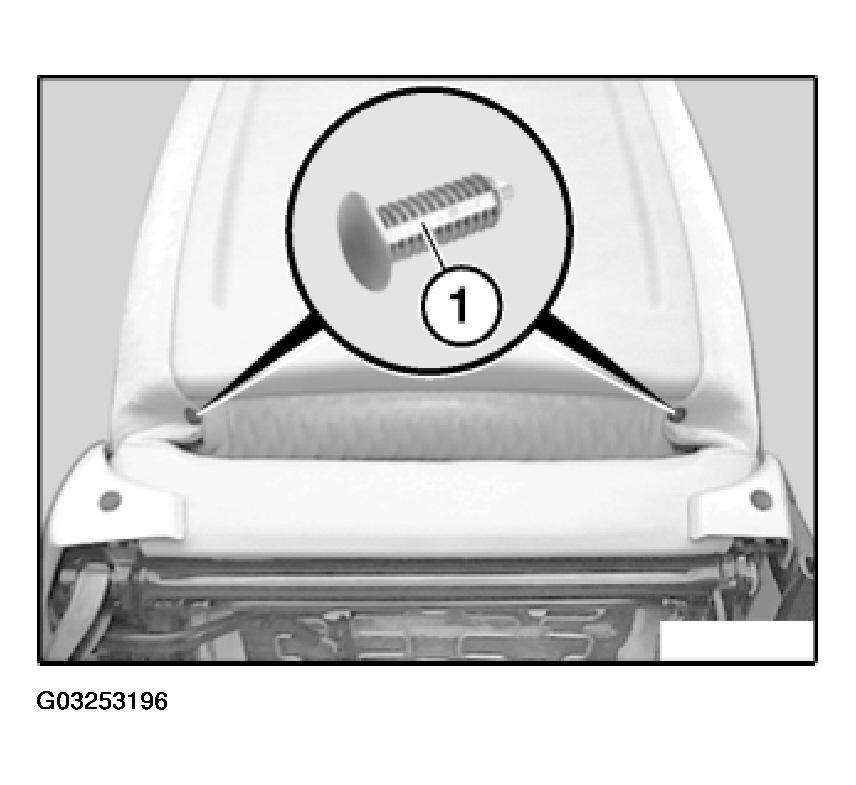

Pull rear panel (1) off backrest cover (2).

Fig 5: Pulling Rear Panel Off Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

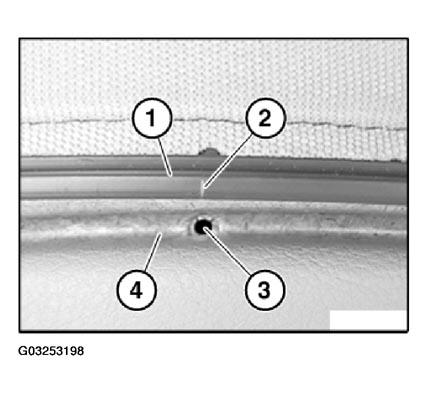

Holes (1) and (2) on rear panel (3) must not be damaged.

Fig 6: Locating Holes On Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

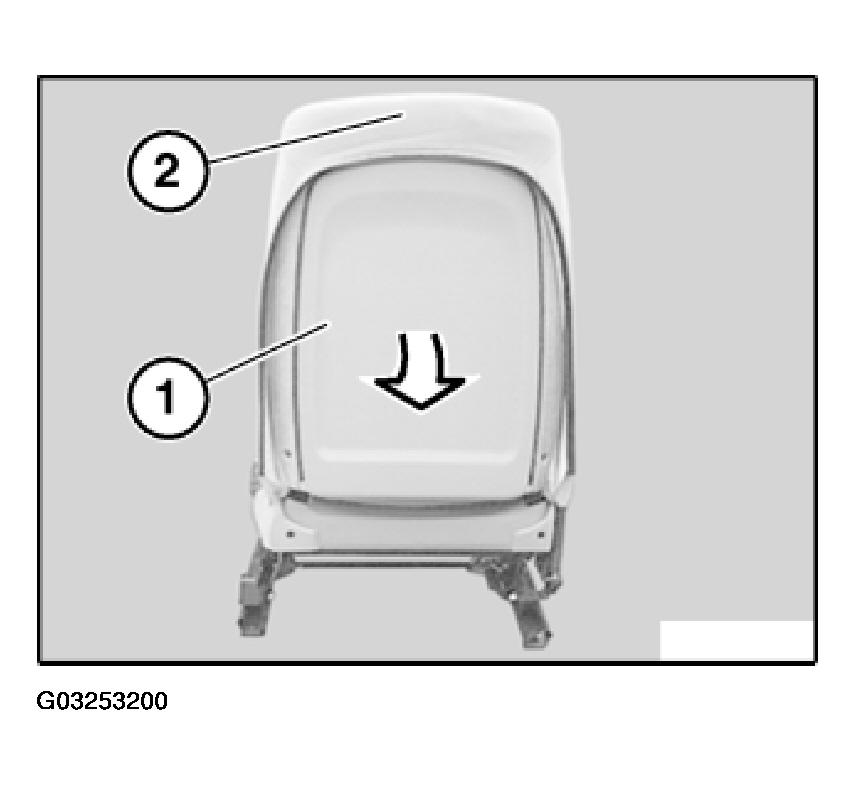

Slide backrest cover (1) on left/right over clip mount (2).

Fig 7: Sliding Backrest Cover On Left/Right Over Clip Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To prevent noise:

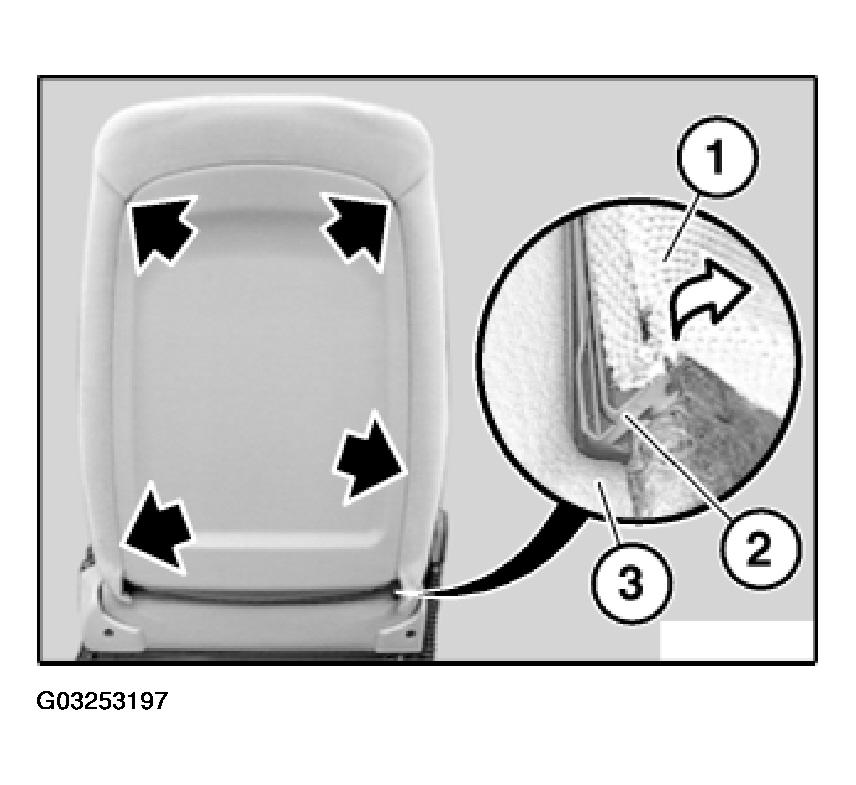

Stick felt strip (1) to raised frame area (2).

Fig 8: Identifying Felt Strip

Courtesy of BMW OF NORTH AMERICA, INC.
