51 16 200 Removing and installing oddments tray
Removing and installing finisher for preselector lever, refer to 51 16 210 REMOVING AND INSTALLING / REPLACING FINISHER FOR PRESELECTOR LEVER .
Removing and installing heater controls, refer to 64 11 749 REMOVING AND INSTALLING / REPLACING HEATER CONTROLS (AUTOMATIC AIR CONDITIONER) .
Removing and installing switch for hazard warning lights, refer to 61 31 080 REMOVING AND INSTALLING / REPLACING SWITCH FROM HAZARD WARNING LIGHTS .
Removing and installing switch for central locking, refer to 61 31 082 REMOVING AND INSTALLING / REPLACING SWITCH FOR CENTRAL LOCKING SYSTEM .
Removing and installing switch for automatic stability control, refer to 61 31 212 REMOVING AND INSTALLING / REPLACING SWITCH FOR AUTOMATIC STABILITY CONTROL .
If necessary, remove and install both switches for seat heating, refer to 61 31 090 REMOVING AND INSTALLING / REPLACING SWITCH FOR LEFT OR RIGHT SEAT HEATING .
If necessary, remove and install switch for rear window roller blind, refer to 61 31 216 REMOVING AND INSTALLING / REPLACING SWITCH FOR REAR WINDOW ROLLER BLIND .
If necessary, remove and install switch for electronic damper control, refer to 61 31 214 REMOVING AND INSTALLING / REPLACING SWITCH FOR ELECTRONIC DAMPER CONTROL .
Removing and installing fresh air grille in luggage compartment, refer to 64 22 190 REMOVING AND INSTALLING / REPLACING FRESH-AIR GRILL IN REAR OF CAR .

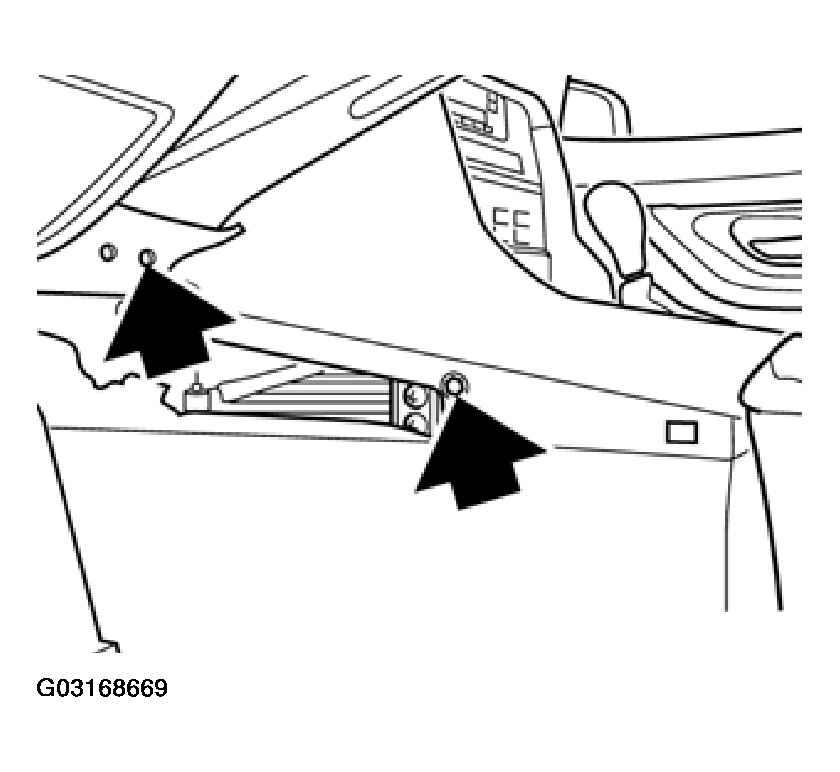

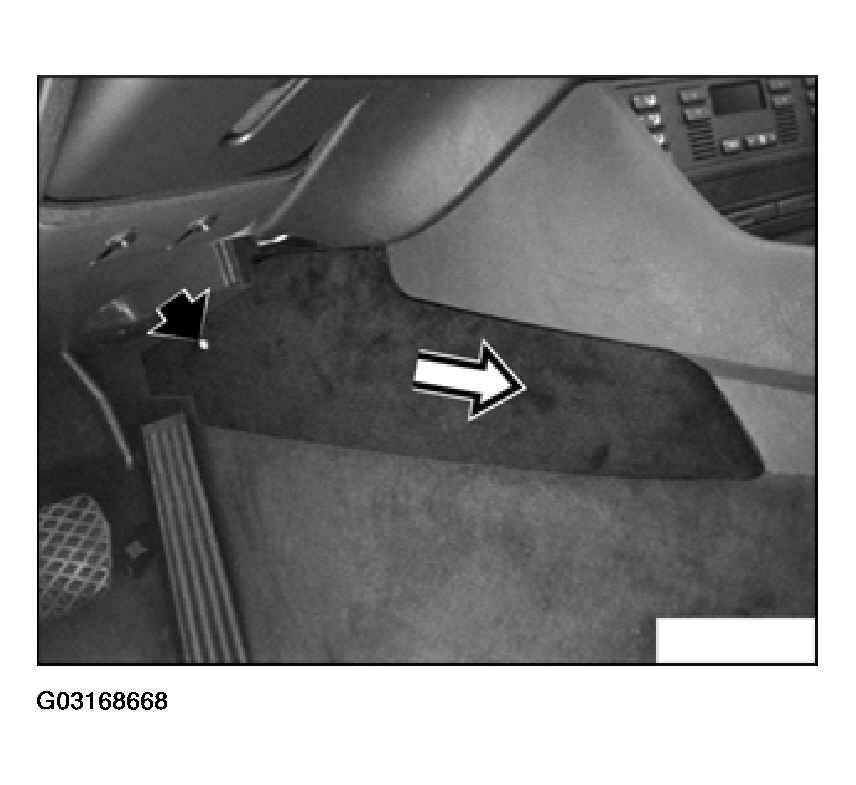

Unfasten screws on left/right sides.
Pull left/right side carpet backwards out of clips.

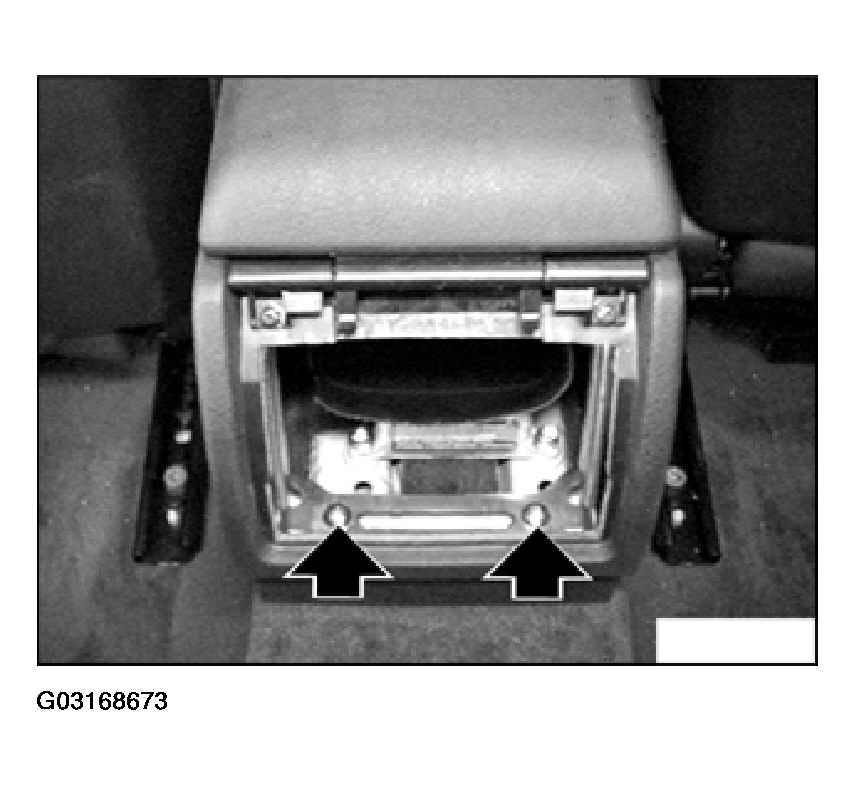

Unfasten left/right screws.

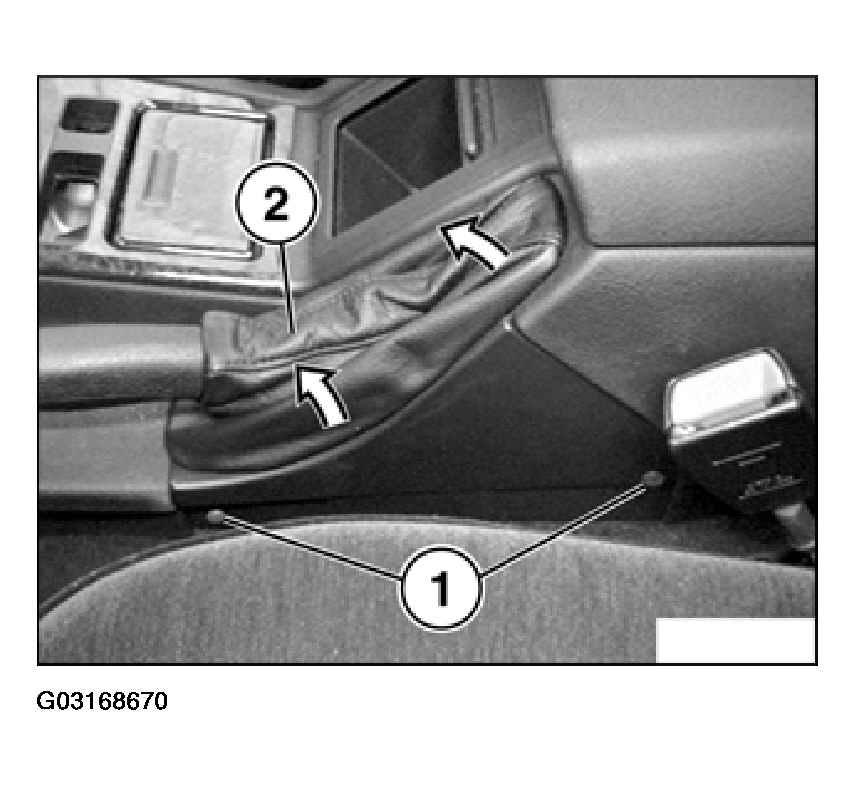

Lift off caps (1) and unfasten screws. Unclip rubber gaiter (2).

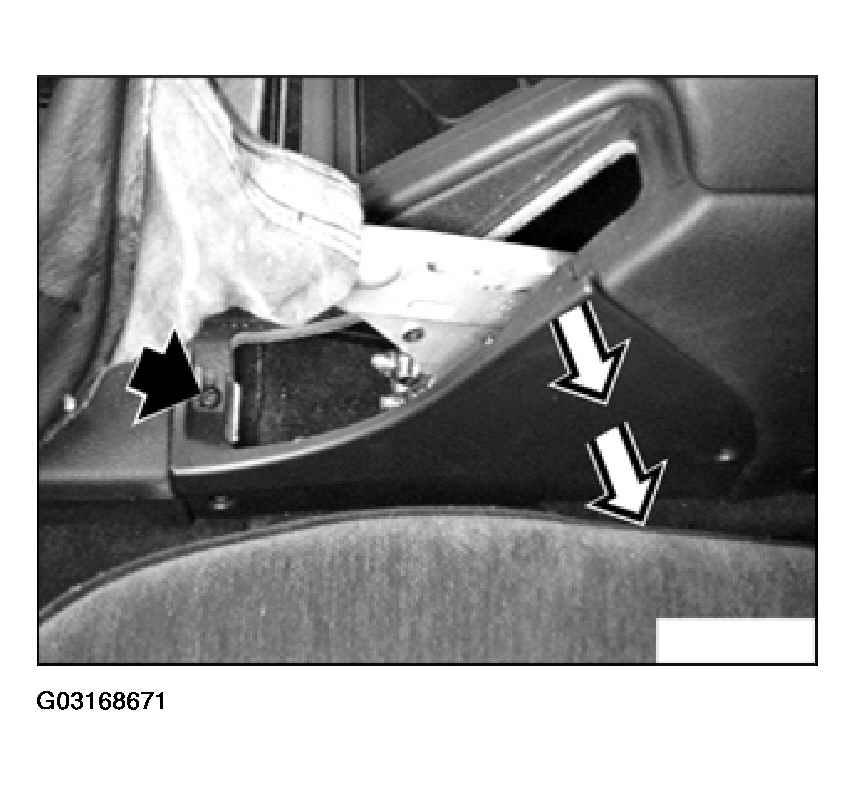

Unfasten screw and unclip finisher.
Installation:

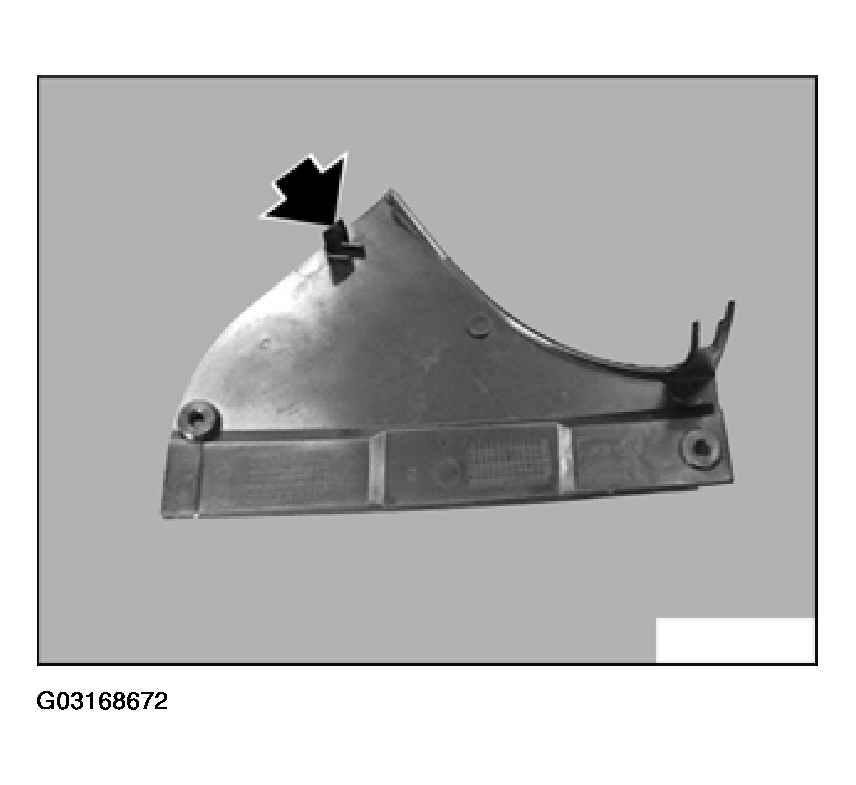

Tab for clip mounting must not be damaged.
Unfasten screws.
Lift off left/right and unfasten screws.

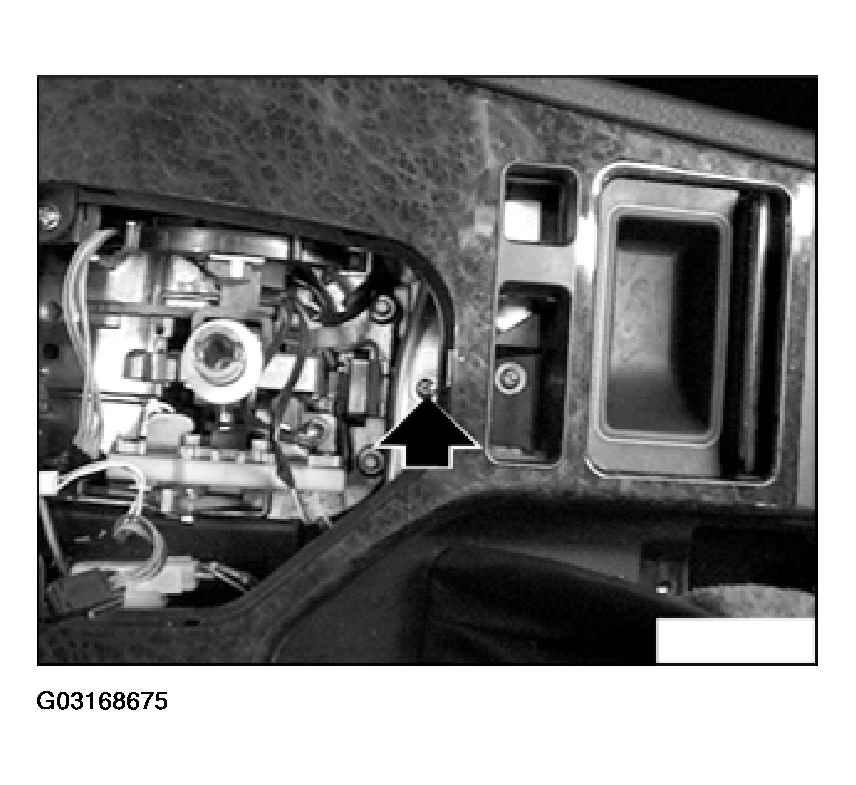

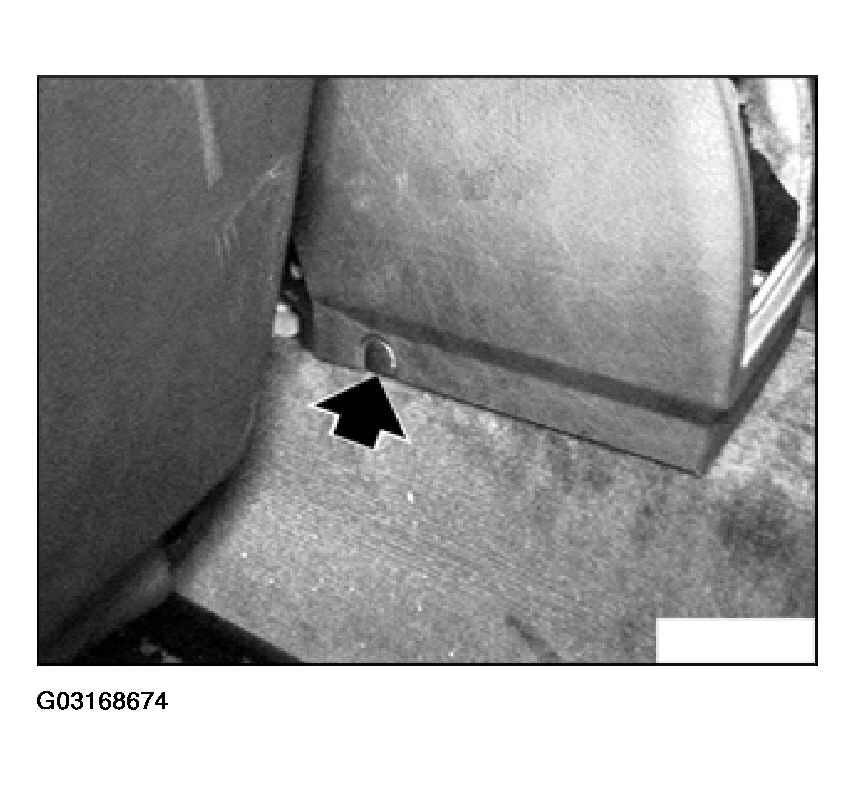

Unscrew screw.

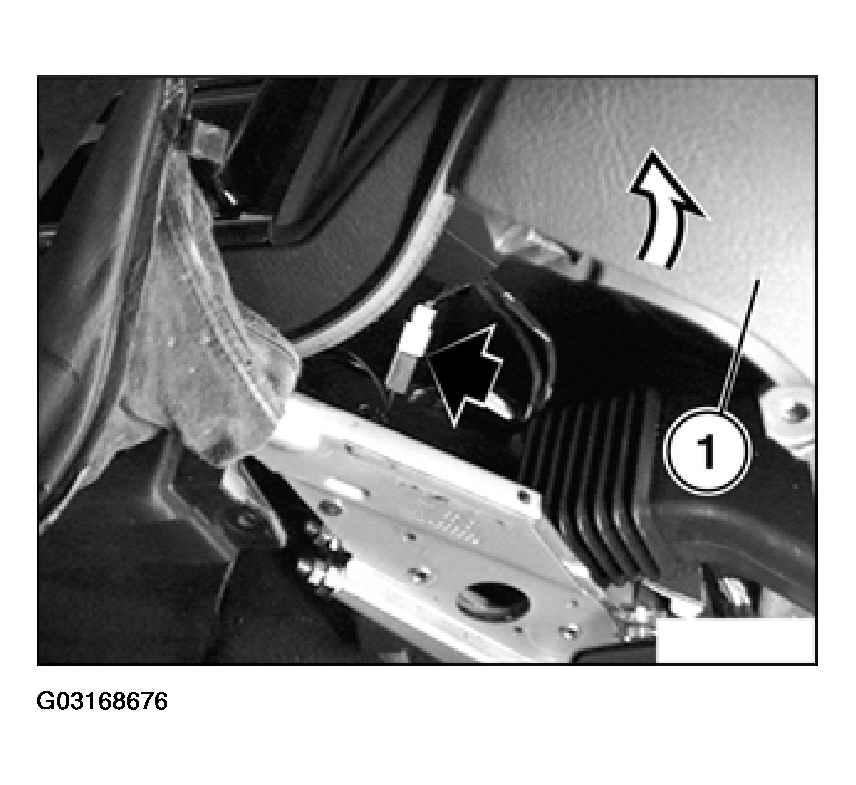

Raise back of oddments tray (1) slightly and cut through plug connection (cigarette lighter).
Adjust both front seats, back-rests and selector lever as far backwards and downwards as possible.

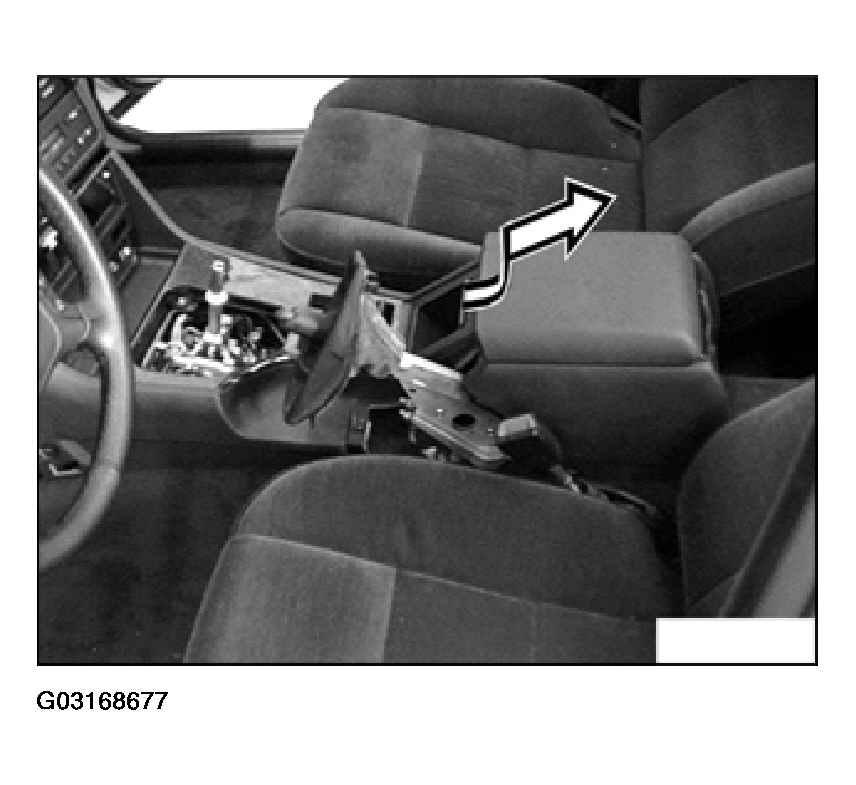

Lift up rear oddments tray and pull out on passenger side.
