64 11 749 Removing and installing / replacing heater controls (automatic air conditioner)

Remove radio or on-board monitor, refer to 65 11 030 REMOVING AND INSTALLING / REPLACING .

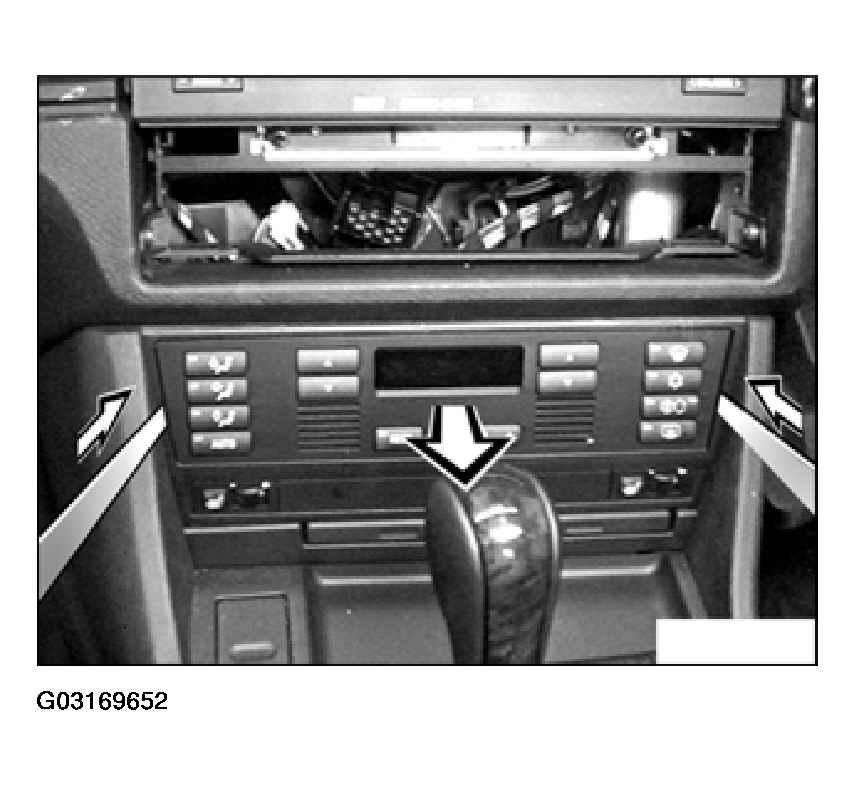

Press out controls through the radio aperture.

Fig 1: Pressing Out Controls Through Radio Aperture

Courtesy of BMW OF NORTH AMERICA, INC.

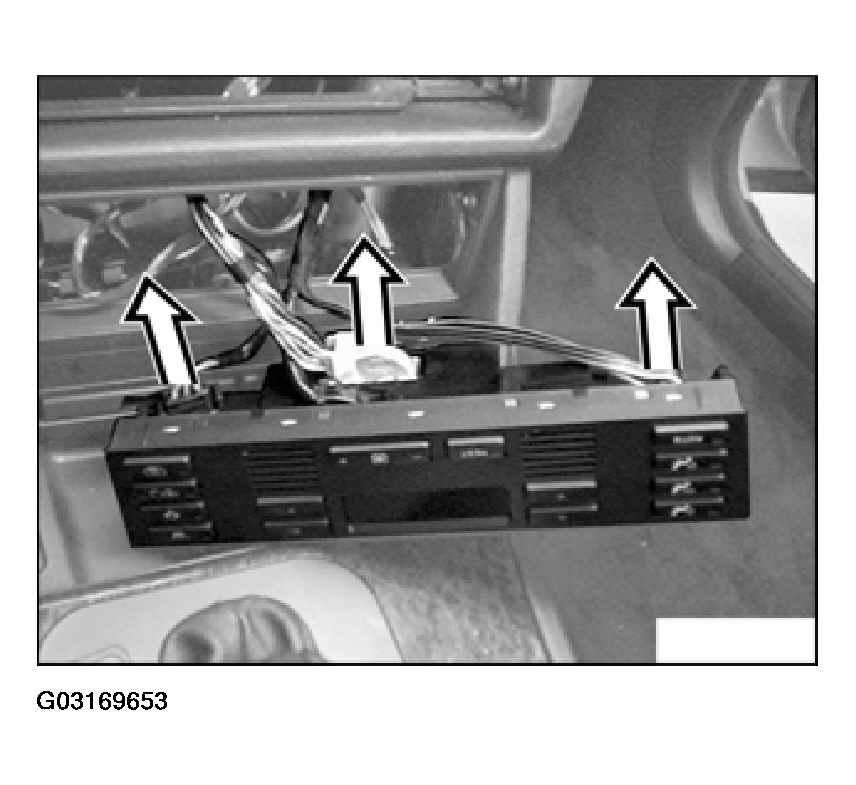

Pull off connectors.

Fig 2: Removing Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After replacing the heater controls, receding is necessary.
