12 11 114 Replacing both distributor rotors (M73)

Switch off ignition.

Remove left distributor cap,

refer to 12 11 096 REPLACING LEFT DISTRIBUTOR CAP (M73)

Remove right distributor cap,

refer to 12 11 098 REPLACING RIGHT DISTRIBUTOR CAP (M73)

Unscrew bolts. Remove distributor rotor.

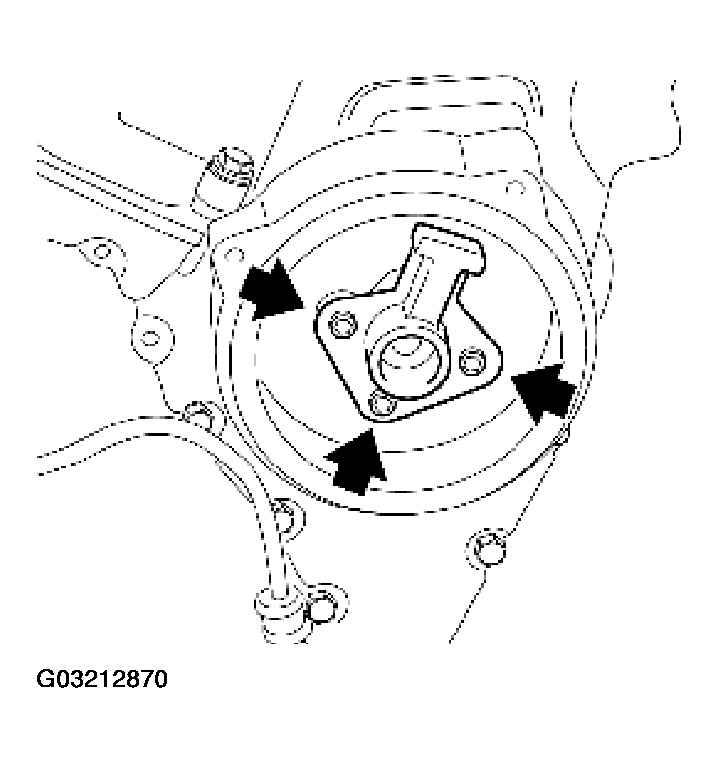

Fig 1: Removing Distributor Rotor
G03212870
NOTE: Check distributor rotor and distributor cap for hairline cracks and traces of scorching. If any are present, establish the cause and replace corresponding component.
