12 11 098 Replacing right distributor cap (M73)

1. Switch off ignition.

Remove fan.

Remove non-return valve for cylinders 1-6,

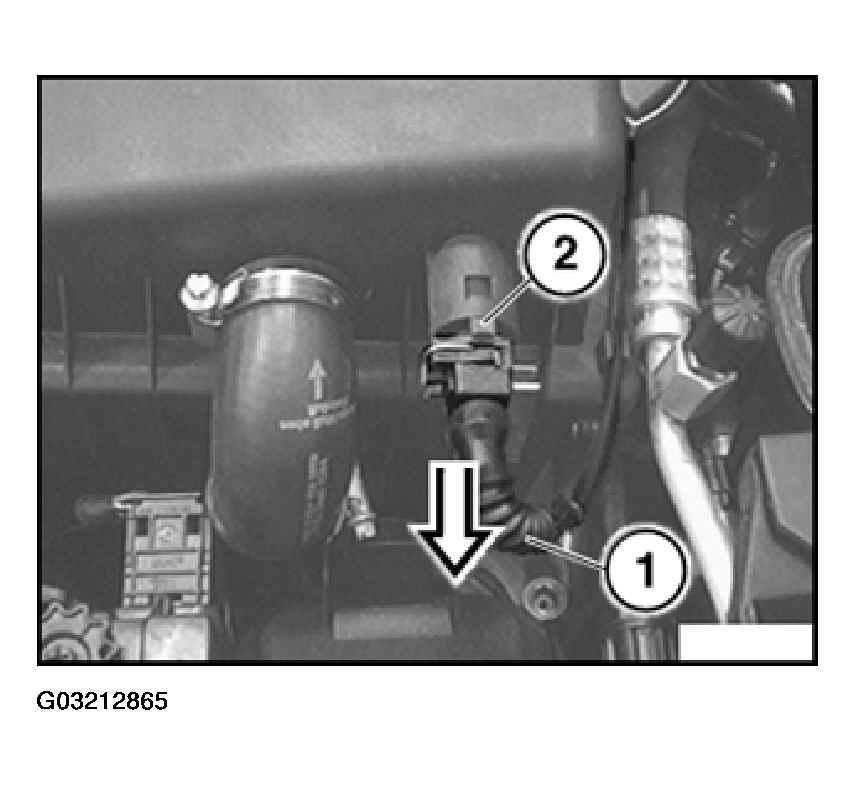

Press in detent spring on plug connection (2) and separate plug connection (1).

Remove upper section of right intake filter housing with mass air flow sensor.

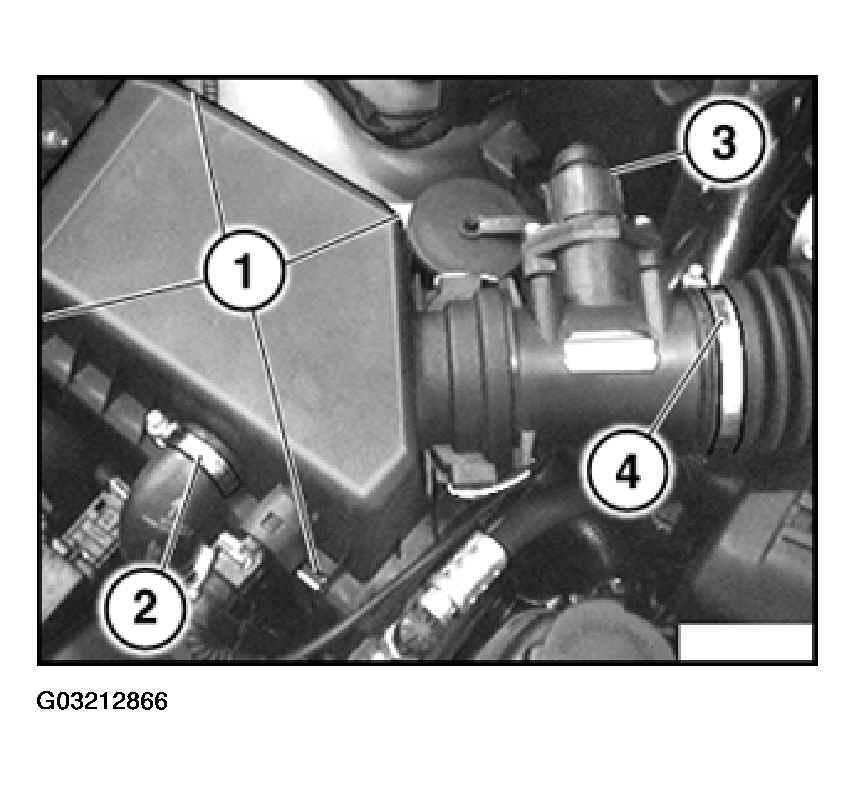

Loosen retainers (1).

Loosen hose clip (2) on intake hose for air pump.

Disconnect plug-in connection (3).

Unfasten hose clip (4).

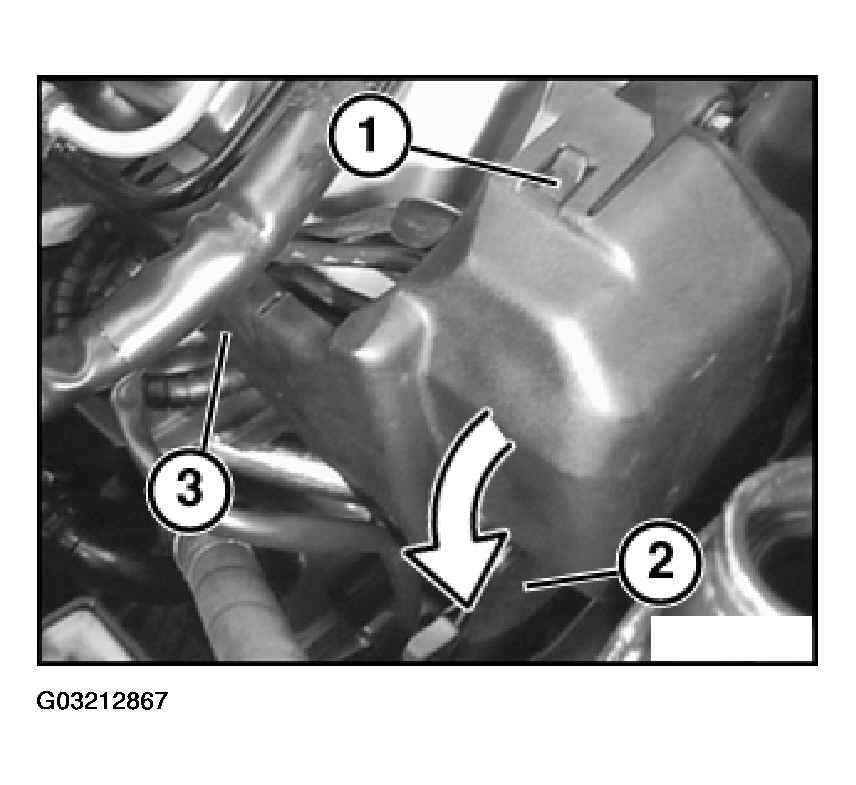

Unclip and remove right cover cap at points (1 to 3).

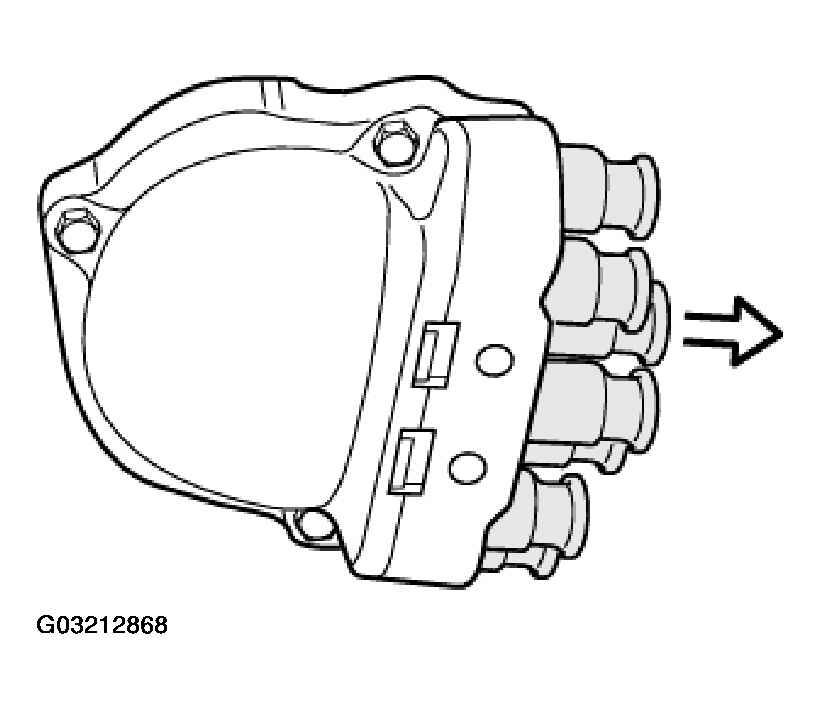

Pull off shielded connectors.

Installation:

1. When fitting ignition leads, note firing order.

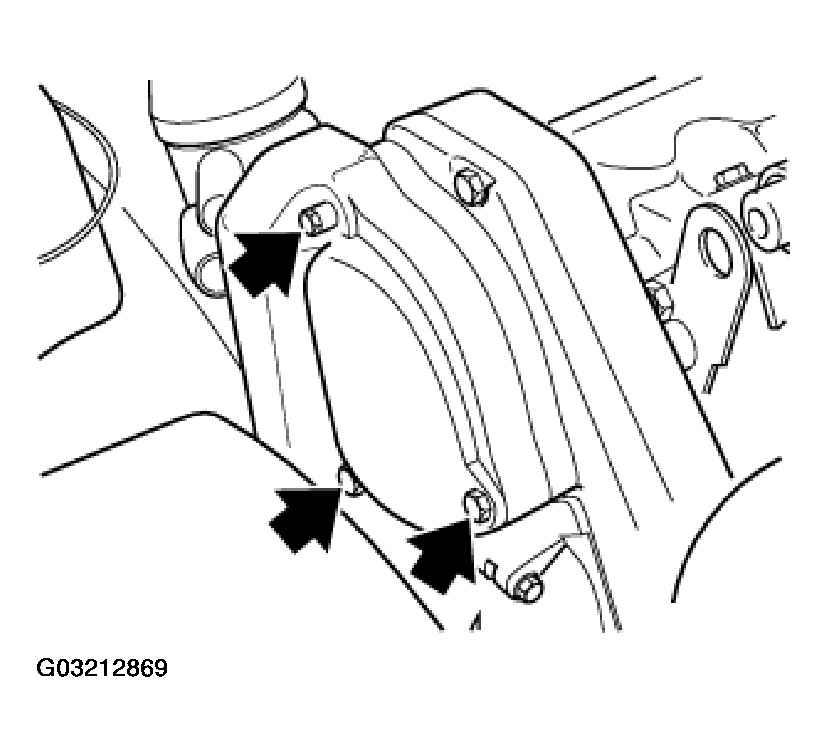

Unfasten screws and remove distributor cap.
