Transmission, Installing: Installing

-- Prepare the Support : T90003 : the bracket -arrow- must be turned so that the longer side faces upward.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the transmission by mixing ATF and transmission fluid (MTF) through the same bleeder.

- The transmission filled with ATF and (MTF) transmission fluid must be tilted a maximum of 15° in lateral and longitudinal direction.

-- Comply with the angle of inclination.

Fig 1: Transmission Maximum Tilt

Courtesy of AUDI OF AMERICA, LLC

-- Install the tunnel crossmember on the transmission. Refer to Tunnel Crossmember, Removing and Installing .

-- Position the transmission on the mount and secure with the Tensioning Strap : T10523 .

Courtesy of AUDI OF AMERICA, LLC

Conditions

The mount may not be set on the transmission fluid pan
The tensioning strap must be guided under the coolant pipes on the transmission.

-- Insert the Clutch Module Assembly Aid :T40169 in the transmission housing and the flywheel from below.

Fig 2: Insert Assembly Aid T40169 Into Transmission Housing

Courtesy of AUDI OF AMERICA, LLC

-- The tool must grip into the semicircular hole and also in the hole -arrow A- and -arrow B-.

Fig 3: Inserting Clutch Module Assembly Aid T40169 Into Transmission And Dual Mass Flywheel

Courtesy of AUDI OF AMERICA, LLC

-- There is only one inspection opening -arrow B- on the edge. Rotate the flywheel as needed.

-- Insert the Clutch Module Transportation Lock :T40170 from below into the transmission housing and secure it to the flange shaft -1-.

Fig 4: Identifying Transportation Lock T40170

Courtesy of AUDI OF AMERICA, LLC

-- Clean the contact surface -1- on the lower timing chain cover and on the sealing piece -2- with Cleaning Solution "D 009 401 04".

Courtesy of AUDI OF AMERICA, LLC

-- Bond the sealing piece to the lower timing chain cover.

Vehicles with a 4-cylinder TDI engine:

-- Inspect the aluminum bolts -3 through 9- used to connect the engine to the transmission to see if they can be used again and mark them.

Fig 5: Transmission Mounting Bolts and Alignment Sleeves (4-Cylinder TDI Engine)

Courtesy of AUDI OF AMERICA, LLC

-- Inspect the aluminum bolt -2- used to connect the starter to the transmission to see if it can be used again and mark it.

-- Make sure that the alignment sleeves -A- for centering the engine and transmission are inserted in the cylinder block.

Continuation for all vehicles

Vehicles with 4-cylinder TFSI or 6-cylinder TDI engine:

-- Inspect the aluminum bolts -1 through 8- used to connect the engine to the transmission to see if they can be used again and mark them.

Fig 6: Transmission Mounting Bolts and Alignment Sleeves (4-Cylinder FSI Engine)

Courtesy of AUDI OF AMERICA, LLC

-- Inspect the aluminum bolt -2- used to connect the starter to the transmission to see if it can be used again and mark it.

-- Make sure that the alignment sleeves -arrows- for centering the engine and transmission are inserted in the cylinder block.

Continuation for all vehicles

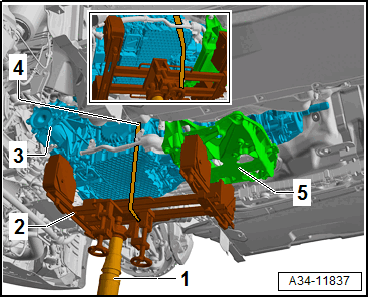

-- Lift the transmission -3- and tunnel crossmember -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Position the transmission on the engine.

-- Introduce the starter.

Vehicles with a 4-cylinder TDI engine:

-- Install bolts -1 through 9-. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS .

Fig 7: Transmission Mounting Bolts and Alignment Sleeves (4-Cylinder TDI Engine)

Courtesy of AUDI OF AMERICA, LLC

Continuation for all vehicles

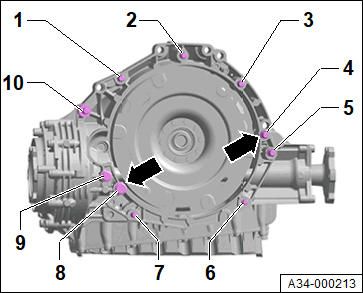

Vehicles with 4-cylinder TFSI or 6-cylinder TDI engine:

-- Install bolts -1 through 10-. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS .

Courtesy of AUDI OF AMERICA, LLC

Continuation for all vehicles

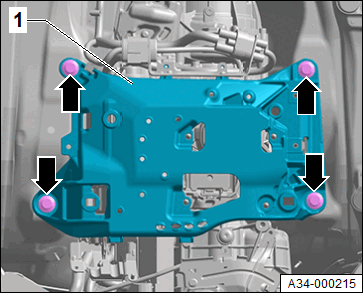

-- Install the bolts -arrows- for the tunnel crossmember -1-. Refer to Overview - Assembly Mounts .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Engine and Gearbox Jack :VAS 6931 with the Support :T90003 .

-- Remove the engine support supplement set. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION (4 CYL) , or ENGINE, SUPPORTING IN INSTALLATION POSITION (6 CYL) .

-- Turn the crankshaft on the vibration damper 360° in the direction of engine rotation.

-- Remove the Clutch Module Transportation Lock :T40170 .

Fig 8: Identifying Transportation Lock T40170

Courtesy of AUDI OF AMERICA, LLC

Conditions

If the vibration damper does not lay flat on the drive plate, insert the Clutch Module Transportation Lock and turn the crankshaft another 360°.

-- Install the first bolt -arrow-, tighten to 10 Nm, loosen and then tighten to 2 Nm (hand-tight).

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Clutch Module Assembly Aid :T40169 .

Fig 9: Insert Assembly Aid T40169 Into Transmission Housing

Courtesy of AUDI OF AMERICA, LLC

Vehicles with 4-Cylinder Engine (Three Bolts):

-- Turn the crankshaft on the vibration damper 120° in the direction of the engine rotation with a large offset open-end wrench.

-- Install the next bolt in this crankshaft position and tighten.

-- Turn the crankshaft another 120° in the direction of engine rotation and install the next bolt and tighten.

-- - Turn the crankshaft another 120° in the direction of engine rotation and tighten the last bolt.

Continuation for all vehicles

Vehicles with 6-Cylinder Engine (Six Bolts):

-- Turn the crankshaft on the vibration damper 180° in the direction of engine rotation. Install bolt -4- and tighten.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the crankshaft another 60° in the direction of engine rotation. Install bolts -5- and -6- and tighten.

-- - Turn the crankshaft another 60° in the direction of engine rotation and tighten bolt -1-.

-- Turn the crankshaft another 60° in the direction of engine rotation. Install bolts -2- and -3- and tighten.

Continuation for all vehicles

-- Install the cover -1-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying due to electrostatic charge.

- Do not touch the connector terminals.

- Touch a grounded object (for example the hoist) and discharge any static electricity.

-- Connect the connectors.

-- If removed, install the driveshaft. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

-- If removed, install the Reducing Agent Injector 2 - N758. Refer to the appropriate service information .

-- If removed, install the slip catalyst. Refer to the appropriate service information .

-- If removed, install the particulate filter. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING .

-- If removed, install the catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING (4 CYL) , or CATALYTIC CONVERTER, REMOVING AND INSTALLING (6 CYL) .

-- If removed, install the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .

-- Install the coolant pipes. Refer to OVERVIEW - COOLANT PIPES (4 CYL) , or OVERVIEW - COOLANT PIPES (6 CYL) .

-- Install the front exhaust pipe. Refer to the appropriate service information .

-- Install the drive axles. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Install the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Bleed the cooling system if the drained coolant is less than or equal to 0.5 Liter, otherwise fill and bleed the cooling system. Refer to COOLANT, DRAINING AND FILLING .

-- Install the steering intermediate shaft. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

-- Connect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

If transmission fluid and ATF have been drained:

-- Fill the transmission fluid. Refer to Transmission Fluid, Draining and Filling .

-- Add ATF. Refer to ATF, Draining and Filling .

Continuation

If components in the transmission were replaced:

-- After installing the transmission, perform the following functions: Refer to DIAGNOSTIC ENTRY .

Distance Sensors, Calibration
Parking Lock, Adaptation

Continuation
