Overview - Headrest

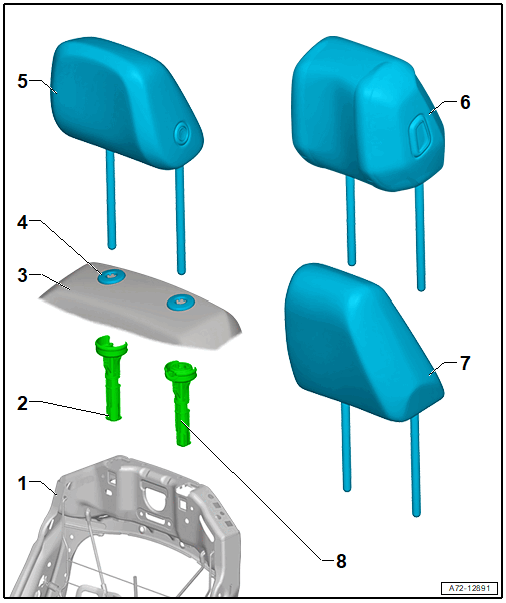

Fig 1: Exploded View Of Headrest

Courtesy of AUDI OF AMERICA, LLC

Backrest Frame
- Refer to Overview - Front Backrest .
Right Headrest Guide
- Refer to Headrest Guide, Removing and Installing .
Seat Cover
- Refer to OVERVIEW - BACKREST COVER AND CUSHION .
Collar
- Quantity: 2
Standard Seat Headrest
- Height adjustable
- Refer to Headrest, Removing and Installing .
Standard Seat Headrest, North America
- Height and depth adjustable
- Refer to Headrest, Removing and Installing .
Sport Seat Headrest
- Refer to Headrest, Removing and Installing .
Left Headrest Guide
- With headrest release ring
- Refer to Headrest Guide, Removing and Installing .
