Overview - Front Backrest

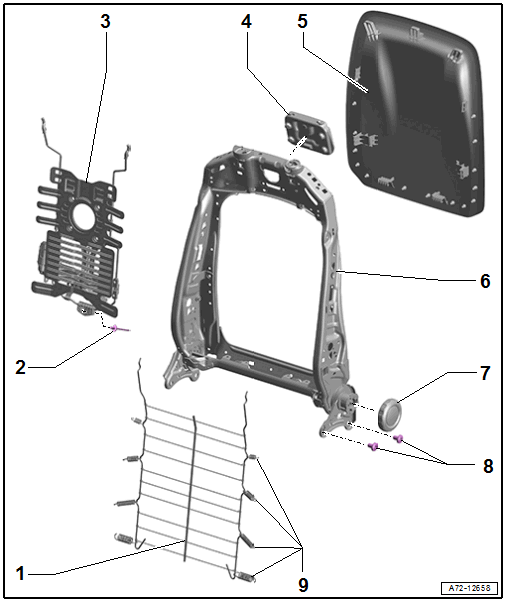

Fig 1: Exploded View Of Front Seat Backrest

Courtesy of AUDI OF AMERICA, LLC

Backrest Spring Mat
- Equipment version: standard seat
- Refer to Spring Mat, Removing and Installing .
Pop Rivet
Power Lumbar Support
- Equipment version: standard and sport seat
- Driver Seat Lumbar Support Curvature Adjustment Motor -V125-, Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-
- Driver Seat Lumbar Support Height Adjustment Motor -V126- / Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-
- Refer to Lumbar Support, Removing and Installing .
Insert
Backrest Cover
- Refer to Backrest Cover, Removing and Installing .
Backrest Frame
- Equipment version with power backrest adjuster: Driver Backrest Adjustment Motor -V45-, Front Passenger Backrest Adjustment Motor -V46-.
- Refer to Front Backrest, Removing and Installing .
Backrest Adjustment Wheel Handle
- Equipment version: standard seat with manual backrest adjuster
- Refer to BACKREST ADJUSTMENT WHEEL, REMOVING AND INSTALLING .
Bolt
- Self-locking
- Quantity: 4
- Replace after removing
- 33 Nm
Tension Springs
- For spring mat
- Quantity: 8
