Overview - Backrest Cover And Cushion

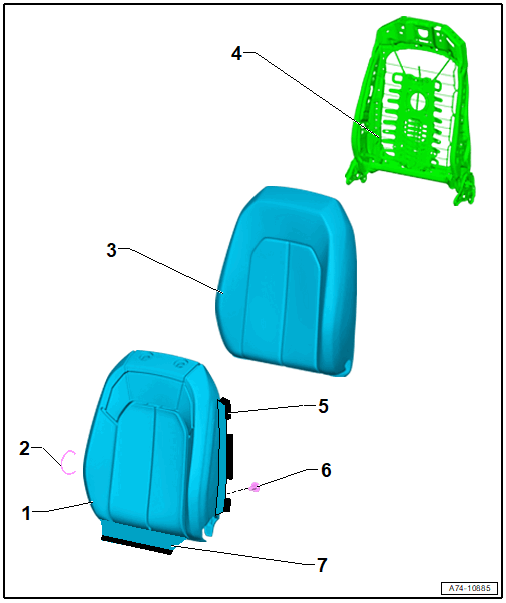

Fig 1: Exploded View Of Backrest Cover And Cushion

Courtesy of AUDI OF AMERICA, LLC

Backrest Cover
- Refer to Backrest Cover and Cushion, Removing and Installing .
- Refer to COVER, SEPARATING FROM BACKREST CUSHION .
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing
Backrest Cushion
- Refer to Backrest Cover and Cushion, Removing and Installing .
- Refer to COVER, SEPARATING FROM BACKREST CUSHION .
- Equipment version with seat heating: when replacing, apply a new heating element. Refer to LEFT/RIGHT FRONT SEAT HEATED BACKREST Z116/Z117, REMOVING AND INSTALLING .
Backrest Frame
- Refer to FRONT BACKREST, REMOVING AND INSTALLING .
Molding
- Sewn into cover
- For attaching the cover to the backrest frame
Expanding Rivet
- Quantity: 2
Molding
- Sewn into cover
- To engage the cover
