Overview - Front Backrest

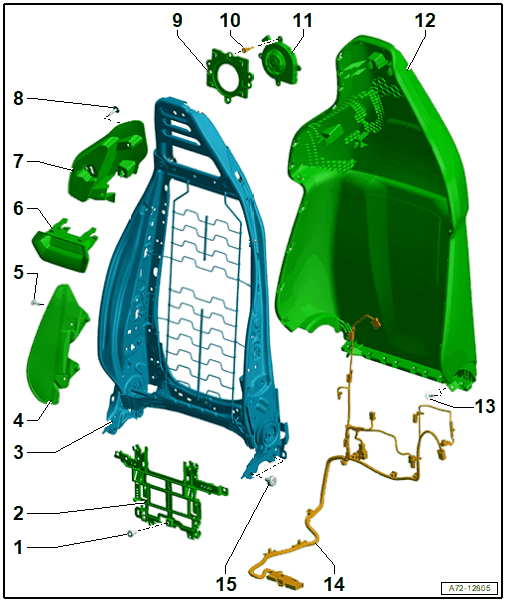

Fig 1: Exploded View Of Front Backrest

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 3.5 Nm
- Only Sport/Comfort seat (Q1J/Q2J)
- Quantity: 3
Valve Block Bracket
- Only Sport/Comfort seat (Q1J/Q2J)
- Refer to VALVE BLOCK BRACKET, REMOVING AND INSTALLING
Backrest Frame
- Refer to BACKREST FRAME, REMOVING AND INSTALLING
Backrest Bolster Support
- Refer to SEAT/BACKREST BOLSTERS SUPPORT, REMOVING AND INSTALLING
- Only sport seat (QJ)
- Quantity: 2
Bolt
- 1.8 Nm
- Quantity: 2
Trim
- Refer to BACKREST TRIM, REMOVING AND INSTALLING
Backrest Cover Bracket
- Refer to Backrest Cover, Removing and Installing .
- Quantity: 2
Bolt
- 5 Nm
- Quantity: 2
Fan bracket
- Vehicles with Sport Seat (Q1J)
- Refer to BACKREST FAN, REMOVING AND INSTALLING
Fan Rubber Bracket
- Insert in the bracket
- Quantity: 4
Backrest Blower Fan
- Vehicles with Sport Seat (Q1J)
- Left Front Seat Backrest Fan 1 -V512- /Right Front Seat Backrest Fan 1 -V516-
- Refer to BACKREST FAN, REMOVING AND INSTALLING
Backrest Cover
- Refer to Backrest Cover, Removing and Installing .
Bolt
- 3.2 Nm
- Quantity: 2
Wiring Harness
- Allocation. Refer to the appropriate Electronic Parts Information.
- Clipped in the backrest
Bolts
- 70 Nm
- Replace after removing
- Quantity: 4
