Component Location Overview - Air Suspension

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

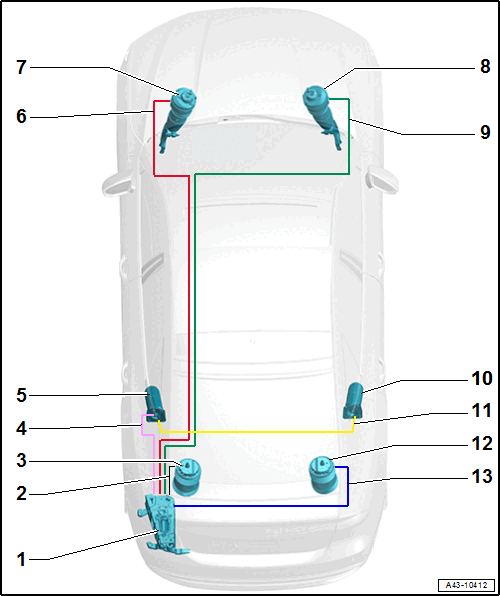

Fig 1: Identifying Air Suspension Components

Courtesy of AUDI OF AMERICA, LLC

Air Supply Unit with Level Control System Compressor Motor -V66-
- Overview. Refer to OVERVIEW - AIR SUPPLY UNIT .
"Black" Air Line
Left Rear Air Spring
- Overview. Refer to FRONT SUSPENSION OVERVIEW .
"Purple" Air Line
Left Pressure Reservoir
- In the left rear wheel housing
- Overview. Refer to OVERVIEW - PRESSURE RESERVOIR .
"Red" Air Line
Left Front Air Spring
- With Left Front Damping Adjustment Valve -N336-
- Overview. Refer to FRONT SUSPENSION OVERVIEW .
Right Front Air Spring
- With Right Front Damping Adjustment Valve -N337-
- Overview. Refer to FRONT SUSPENSION OVERVIEW .
"Green" Air Line
Right Pressure Reservoir
- In the right rear wheel housing
- Overview. Refer to OVERVIEW - PRESSURE RESERVOIR .
"Yellow" Air Line
Right Rear Air Spring
- Overview. Refer to FRONT SUSPENSION OVERVIEW .
"Blue" Air Line
