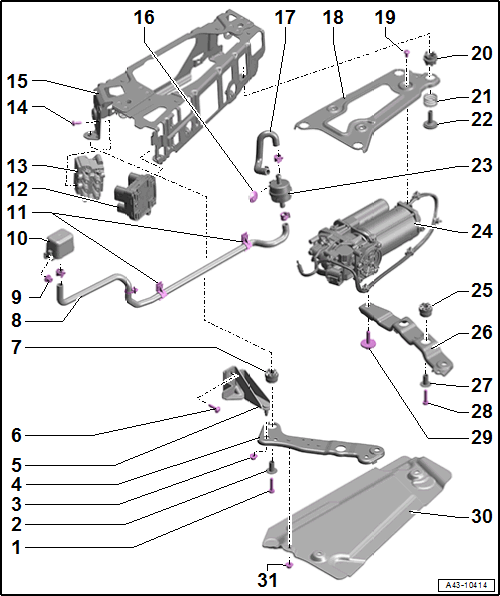

Overview - Air Supply Unit
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Spacer Sleeve
- Nut
- 20 Nm
- Bracket
- Bracket
- Bolt
- 8 Nm
- Rubber Bushing
- Hose
- Nut
- 2.5 Nm
- Muffler
- Component location in the left wheel housing
- Clip
- Level Control System Compressor Electronics -J1135-
- Removing and Installing. Refer to Level Control System Compressor Electronics -J1135-, REMOVING AND INSTALLING .
- Solenoid Valve Block
- Line arrangement. Refer to OVERVIEW - AIR LINES .
- Removing and Installing. Refer to SOLENOID VALVE BLOCK, REMOVING AND INSTALLING .
- Bolt
- 4 Nm
- Bracket
- Clip
- Hose
- With bonded clamp
- Bracket
- Bolt
- 9 Nm
- Rubber Bushing
- Spring
- Flange Nut
- 7.5 Nm
- Filter
- Removing and Installing. Refer to FILTER, REMOVING AND INSTALLING .
- Air Supply Unit with Level Control System Compressor Motor -V66-
- Removing and Installing. Refer to AIR SUPPLY UNIT, REMOVING AND INSTALLING .
- Rubber Bushing
- Bracket
- Spacer Sleeve
- Bolt
- 9 Nm
- Bolt
- Tightening specification. Refer to OVERVIEW - MUFFLER .
- Heat Shield
- Nut
- 9 Nm
