Overview - Pressure Reservoir

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

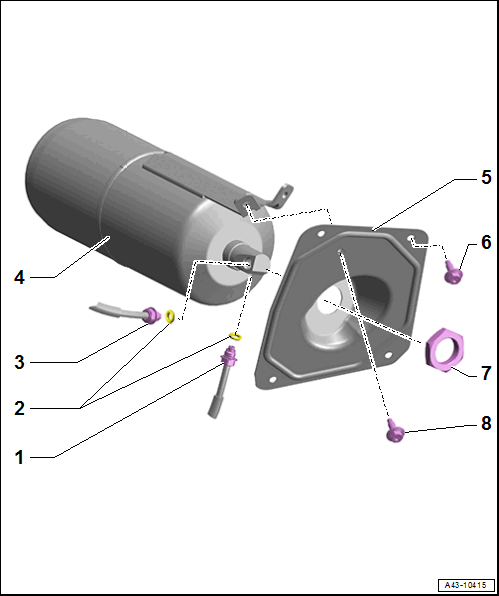

Fig 1: Identifying Pressure Reservoir Components

Courtesy of AUDI OF AMERICA, LLC

"Yellow" Air Line
- To the right pressure reservoir
- Secure fit of the air line cannot be guaranteed without the cutting ring.
- Connecting piece tightening specification. Refer to -item 1- OVERVIEW - AIR LINES => List Item: "Yellow" Air Line.
O-Rings
"Purple" Air Line
- From the solenoid valve block
- Secure fit of the air line cannot be guaranteed without the cutting ring.
- Connecting piece tightening specification. Refer to -item 2- OVERVIEW - AIR LINES => List Item: "Purple" Air Line.
Pressure Reservoir
- The left side of the vehicle is shown
- Removing and Installing. Refer to PRESSURE RESERVOIR, REMOVING AND INSTALLING .
Retaining Plate
Bolt
- 10 Nm
Nut
- 80 Nm
Bolt
- 8 Nm
