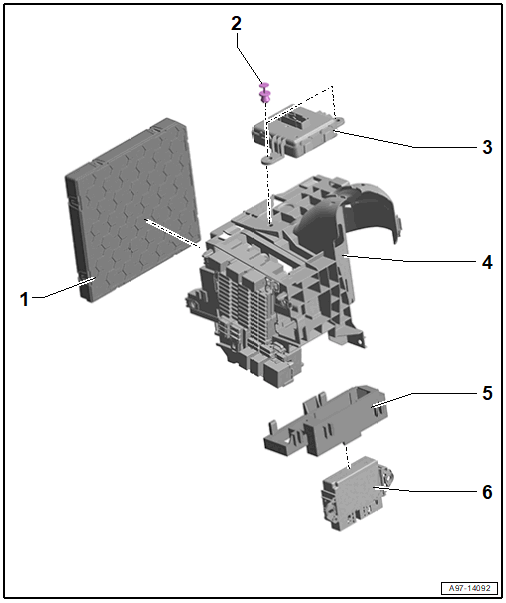

Component Location Overview - Inner Control Modules, LHD
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle Electrical System Control Module -J519-
- Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Expanding Rivet
- Access/Start Authorization Control Module -J518-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - ACCESS/START AUTHORIZATION SYSTEM .
- Bracket
- For vehicle electrical system control module
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANEL, INSTRUMENT PANEL/A-PILLAR FUSE PANEL, LHD .
- Bracket
- For the control module
- Overview. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOX .
- Control Module
- Equipment version with parking aid: Parking Aid Control Module -J446-
- Equipment version with parallel parking assist: Parallel Parking Assistance Control Module -J791-
- Removing and installing. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
