Component Location Overview - Relay Panels, Fuse Panels And E-Box
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

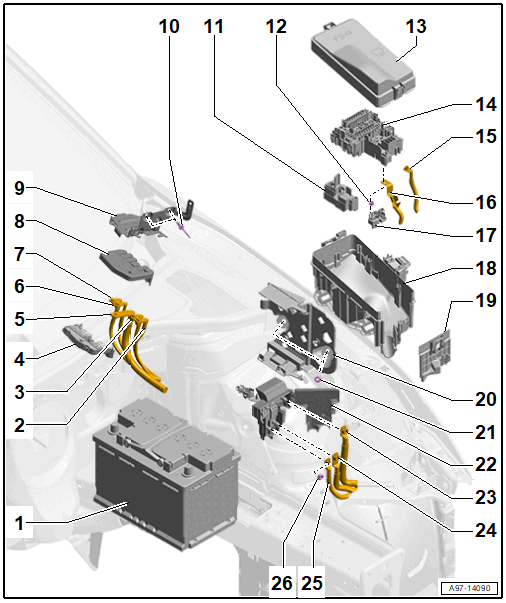

- Battery
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- 6 Nm
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- 6 Nm
- Cover
- For the Fuse Panel A -SA-
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- 6 Nm
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- 6 Nm
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- 6 Nm
- Fuse Panel A -SA-
- Removing and Installing. Refer to Fuse Panel A -SA-, REMOVING AND INSTALLING .
- Bracket
- For the Fuse Panel A -SA-
- Pop Rivet
- Quantity: 2
- Relay and Fuse Panel 1 -SR1-
- Nut
- 9 Nm
- Cover
- for E-box
- Relay and Fuse Panel B -SB-
- Removing and Installing. Refer to Fuse Panel B -SB- IN E-BOX, REMOVING AND INSTALLING .
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- 4 Nm
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- Protective Cap
- E-Box
- Removing and Installing. Refer to E-BOX, REMOVING AND INSTALLING .
- Front Cover
- for E-box
- Bracket
- For the engine control module
- Nut
- Quantity: 2
- 8 Nm
- Fuse Panel 4 -ST4-
- Tightening specification Refer to OVERVIEW - Battery -A-, IN ENGINE COMPARTMENT (0K0, 0K4) .
- Positive Cable
- 12 Nm
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- 12 Nm
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- Nut
- 12 Nm
