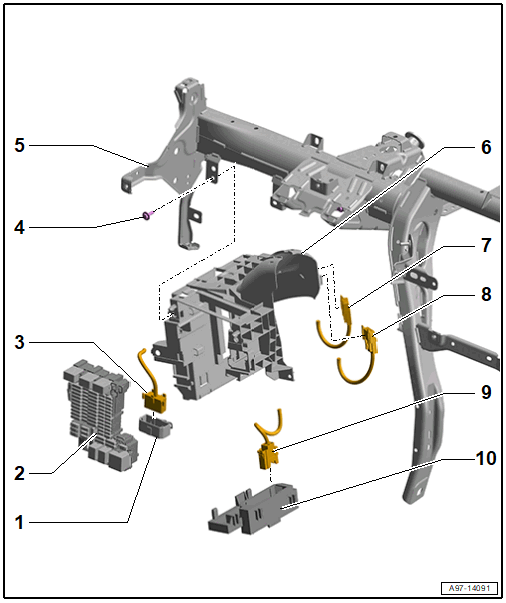

Component Location Overview - Relay Panel, Instrument Panel/A-Pillar Fuse Panel, LHD
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- for the Diagnostic Connection -U31-
- Fuse Panel C -SC-
- Removing and Installing. Refer to Fuse Panel C -SC- UNDER LEFT INSTRUMENT PANEL, REMOVING AND INSTALLING, LHD .
- Diagnostic Connection -U31-
- Bolt
- Quantity: 3
- 4.5 Nm
- Instrument Panel Crossmember
- Bracket
- For vehicle electrical system control module
- Auxiliary Fuse Panel
- Auxiliary Fuse Panel
- Auxiliary Fuse Panel
- Bracket
- For auxiliary fuse panel control module
- Removing and Installing. Refer to CONTROL MODULE BRACKET, REMOVING AND INSTALLING .
