Component Location Overview - Electric Drive Power And Control Electronics, Attachments, AUDI A6/A7
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

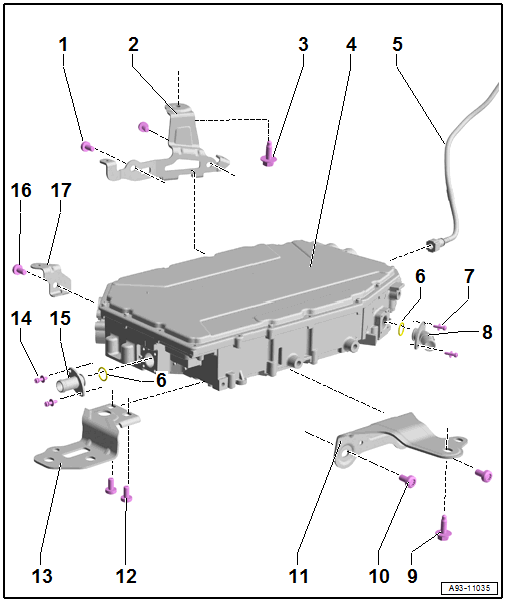

- Bolt
- Quantity: 2
- 20 Nm
- Right Bracket
- For Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to Right Bracket: .
- Bolt
- 20 Nm
- Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING, AUDI A6/A7 .
- Housing Vent
- Do not damage the membrane in the Electric Drive Power and Control Electronics -JX1-
- O-Ring
- No replacement part
- Bolt
- No replacement part
- Coolant Connection
- No replacement part
- Bolt
- 20 Nm
- Bolt
- Quantity: 2
- 20 Nm
- Left Bracket
- For Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to Left Bracket: .
- Bolt
- Quantity: 2
- 20 Nm
- Front Bracket
- For Electric Drive Power and Control Electronics -JX1-
- Is bolted together with the rear tunnel brace
- Removing and Installing. Refer to Front Bracket: .
- Bolt
- No replacement part
- Coolant Connection
- No replacement part
- Bolt
- 20 Nm
- Bracket
- For high-voltage cable
- Removing and Installing. Refer to Right Bracket: .
