Front Bracket:

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

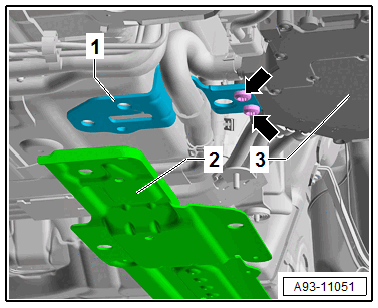

-- Loosen the rear tunnel brace -2-. Refer to TUNNEL BRACE, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Remove the bracket -1- from the Electric Drive Power and Control Electronics -JX1- -3-.

Installing

Install in reverse order of removal.

Tightening Specifications

Refer to COMPONENT LOCATION OVERVIEW - ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, ATTACHMENTS, AUDI A6/A7
Refer to OVERVIEW - UNDERBODY BRACING .
Refer to OVERVIEW - UNDERBODY TRIM PANELS .
