Component Location Overview - Alcohol Interlock System Interface
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

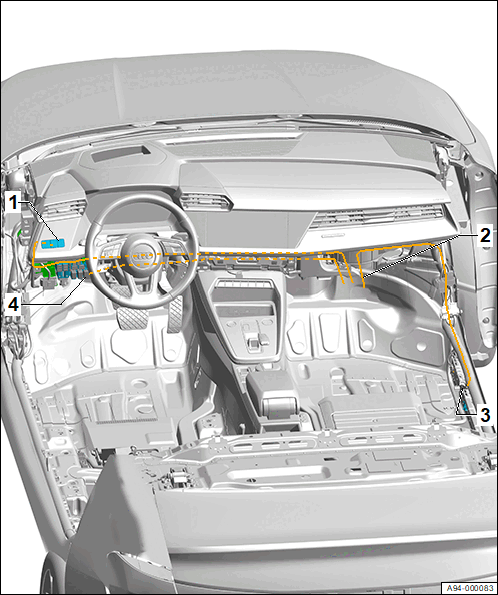

LHD vehicle
- Light Switch -E1-
- Coupling Point for Alcohol Interlock System
- In the glove compartment
- Refer to ALCOHOL INTERLOCK SYSTEM - INSTALLATION INFORMATION
- Refer to ALCOHOL INTERLOCK SYSTEM, INITIAL OPERATION
- Refer to ALCOHOL INTERLOCK SYSTEM, REMOVAL
- Connecting and securing according to the manufacturer information
- Right Footwell Ground Connection
- Fuse Panel C -SC-
- In the front of the footwell on the left side
- Refer to FUSE PANEL C -SC- UNDER LEFT INSTRUMENT PANEL, REMOVING AND INSTALLING .

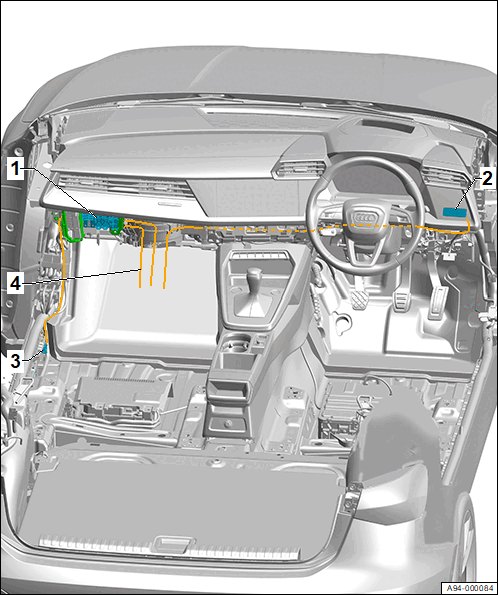

RHD vehicles
- Fuse Panel C -SC-
- In the front of the footwell on the left side
- Refer to FUSE PANEL C -SC- UNDER LEFT INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Light Switch -E1-
- Left Footwell Ground Connection
- Coupling Point for Alcohol Interlock System
- In the glove compartment
- Refer to ALCOHOL INTERLOCK SYSTEM - INSTALLATION INFORMATION
- Refer to ALCOHOL INTERLOCK SYSTEM, INITIAL OPERATION
- Refer to ALCOHOL INTERLOCK SYSTEM, REMOVAL
- Connecting and securing according to the manufacturer information
- Coupling Point for Alcohol Interlock System
- Positive cable terminal 30
- Ground wire terminal 31
- LIN bus wire
- Control Module
- With alcohol interlock system interface (LIN bus wire)
- Ground Connection
- Ground wire terminal 31 for alcohol interlock system
- Fuse Panel
- Positive cable terminal 30 for alcohol interlock system
