Hinges, Adjusting

Requirement

• Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .

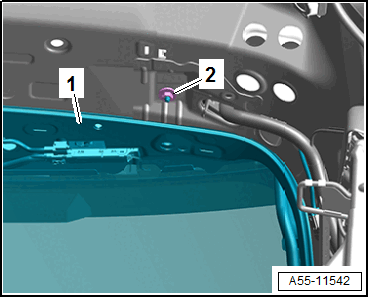

Length adjustment at the hinge

-- Loosen the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Adjust the rear lid -1- lengthwise.

-- Tighten the bolts -2-.

Side and Length Adjustment at Hinge

-- Lower the rear section of the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

-- Loosen the nut -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Adjust the rear lid -1-.

-- Tighten the nut -2-

Tightening Specifications

• Refer to Overview - Rear Lid  .
