Adjustment Dimensions

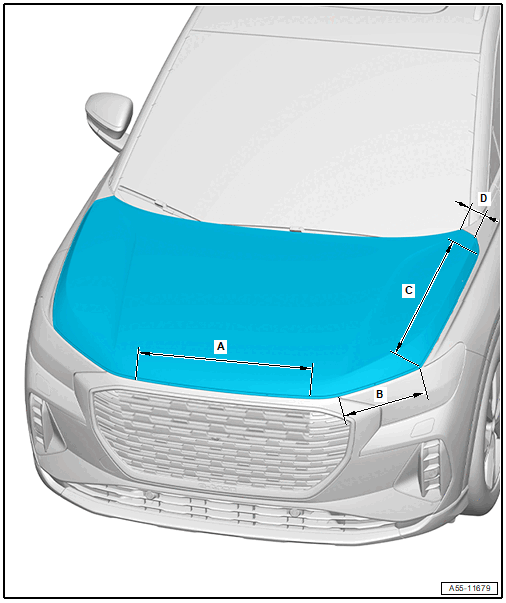

GWWA55-11679Courtesy of AUDI OF AMERICA, LLC
  1. A -  Hood to Radiator Grille
    • Gap dimension = 3.7 mm
  2. B -  Hood to Headlamp
    • Gap dimension = 4.5 mm
  3. C -  Hood to Fender
    • Gap dimension = 2.2 mm
  4. D -  Hood to Fender
    • Gap dimension = 3.2 mm
