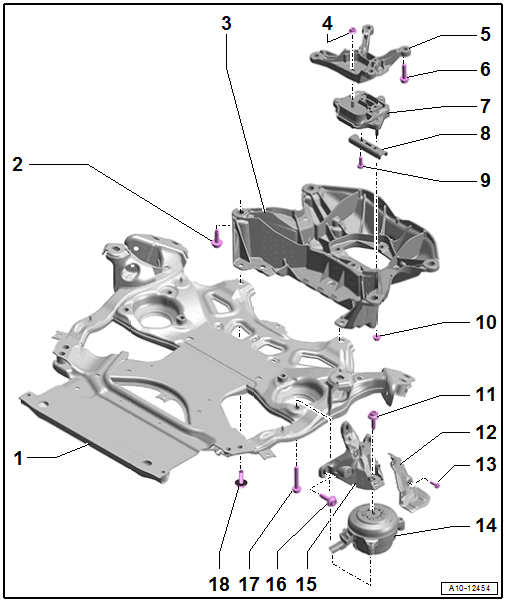

Overview - Transmission Mount
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Subframe Crossbrace
- Overview. Refer to OVERVIEW - SUBFRAME .
- Bolt
- Tightening specifications. Refer to the appropriate service information. .
- Tunnel Crossmember
- Removing and installing. Refer to the appropriate service information. .
- Nut
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specifications. Refer to the appropriate service information. .
- Rear Transmission Support
- Removing and installing. Refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening specifications. Refer to the appropriate service information. .
- Rear Transmission Mount
- Removing and installing. Refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Stop
- For the transmission mount
- Bolt
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specifications. Refer to the appropriate service information. .
- Nut
- Tightening specifications. Refer to the appropriate service information. .
- Bolt
- Tightening specifications. Refer to the appropriate service information. .
- Heat Shield
- Bolt
- Tightening specification. Refer to OVERVIEW - SUBFRAME .
- Side Transmission Mount
- With
- Transmission Mount Valve 1 -N262- (right)
- Transmission Mount Valve 2 -N263- (left)
- Removing and installing
- Left. Refer to LEFT TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Right. Refer to RIGHT TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- With
- Side Transmission Support
- Removing and installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to the appropriate service information. .
- Bolt
- Tightening specification. Refer to the appropriate service information. .
- Bolt
- Tightening specification. Refer to OVERVIEW - SUBFRAME .
