Left Transmission Mount, Removing And Installing

WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Transmission Support, Removing with Transmission Mount

-- Remove the left front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Remove the left subframe shield lower section. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .

-- Remove the left transmission mount bolts -arrows-.

Fig 1: Transmission Mount Valve 1 -N262- /Transmission Mount Valve 2 -N263- Component Location

Courtesy of AUDI OF AMERICA, LLC

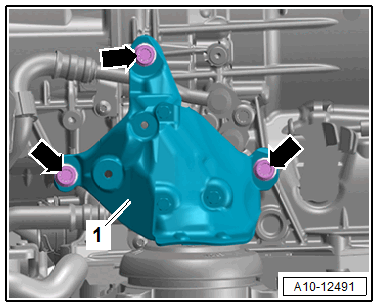

-- Disconnect the connector -1-.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the transmission support -1- with the transmission mount.

Transmission Mount, Removing

Courtesy of AUDI OF AMERICA, LLC

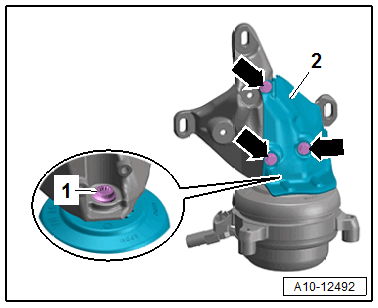

-- Remove the bolts -arrows- and remove the left transmission mount heat shield -2-.

-- Remove the bolt -1-.

-- Remove the transmission mount.

Installing

Install in reverse order of removal and note the following:

-- Install the front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

Tightening Specifications

Refer to the appropriate service information. .
Refer to OVERVIEW - SUBFRAME .
